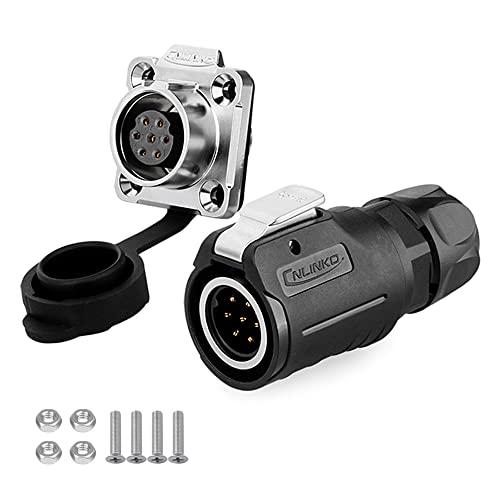

CNLINKO 7Pin Male Female Plug Socket Industrial Waterproof Power Connector, Quick Disconnect Power connectors 7pin led Strip Light Connector(7Pin)

Product ID : 46813457


Galleon Product ID 46813457
Shipping Weight 0.15 lbs
I think this is wrong?
Model LP-16
Manufacturer CNLINKO
Shipping Dimension 6.1 x 4.76 x 1.3 inches
I think this is wrong?
-
Save 6%
Before ₱ 1,545
1,458

*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
  • Electrical items MAY be 110 volts.
  • 7 Day Return Policy
  • All products are genuine and original
  • Cash On Delivery/Cash Upon Pickup Available

Pay with

CNLINKO 7Pin Male Female Plug Socket Industrial Features

  • LP-16-C07PE-01-001 + LP-16-J07SX-03-401 ; Male Plug + Female Socket ; Connecting Mode: Plug/Unplug ; Protection Level: IP67(Mated) ;

  • 【Standard】 Cable Specification: 0.34-0.75mm²/22-20AWG ; Cable Diameter Range: Ф3.0~Ф6.0mm ; Contact Diameter × Number: Φ1.0x7 ; Durability: ≥500 Mating/Unmating Cycle ; Temperature Rating: -40°C ~ 80°C ; Assembly Style:Solder ;

  • 【Specifications】 Rated Current: 5A ; Operating Voltage (AC.V.rms): 250V ; Withstanding Voltage (AC.V),1 Minute: 1000V ; Contact Resistance: <5.0mΩ ; Insulation Resistance: >500MΩ ; Prohibited To Charged Inserted ;

  • 【Material】 Shell & Insulated Parts: Metal & High Performance Engineer Plastic ; Hard Metal: Zinc Alloy(Pearl Hard Chromium) ; Contact: Copper Alloy(Gold Plated) ; Sealing: Silica Gel ;

  • 【Application】 Medical Equipment ; Server ; Electric Power Equipment ; Solar Energy Equipment ; The Smart Grid ; Communications Equipment ; Vehicle Equipment ; Ship Equipment ; Stage Equipment ; Heavy Machin ;


About CNLINKO 7Pin Male Female Plug Socket Industrial

Connecting mode: Latching Lock connect Protection level: IP65/IP67 Cable specification: 22-20AVG Diameter range: Φ3mm~Φ9mm Contact diameter×Qty: Φ0.34×0.75mm²  Current rating(A): 5A Operating voltage(AC.V.rms): 250V Withstand voltage(AC.V)1min: 1500V Contact resistance: 500MΩ Durability: ≥500 mating&unmating cycles Temperature rating: -40°C~80°C Method of connecting cable: Solder Prevent the combustion level: UL94-V0 Material Shell&insulated parts: High performance engineering plastics Hardware metal: Zinc alloy(pearl hard chromium) Contact pin: Copper alloy(gold-plated) Spring: Stainless steel Sealing: Silica gel
