TAILONZ PNEUMATIC 1/4"NPT Solenoid Valve 3V210-08 12V/24V Single Coil Pilot-Operated Electric 2 Position 3 Way Connection Type(Outlet wire)

Product ID : 50485761


Galleon Product ID 50485761
Shipping Weight 0.53 lbs
I think this is wrong?
Model
Manufacturer TAILONZ PNEUMATIC
Shipping Dimension 5.63 x 3.54 x 1.61 inches
I think this is wrong?
-
1,532

*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
  • Electrical items MAY be 110 volts.
  • 7 Day Return Policy
  • All products are genuine and original
  • Cash On Delivery/Cash Upon Pickup Available

Pay with

TAILONZ PNEUMATIC 1/4"NPT Solenoid Valve 3V210-08 Features

  • 【Product Name】2 Position 3 Way Solenoid Valve(Outlet wire)

  • 【Voltage】DC12V【Working Pressure】25~116Psi

  • 【Working Principle】Valve stays open when the coil is de-energized- and it closes when energized.

  • 【Size】Outlet Port:1/4"NPT;Inlet Port:1/4"NPT;Exhaust Port:1/4"NPT.We provide pneumatic fittings, which can be used by directly connecting 1/4 or 6mm air tubes.

  • 【Quick response 】High-quality solenoid valve pilot head, sensitive response, response speed 4 times per second, stable performance.


About TAILONZ PNEUMATIC 1/4"NPT Solenoid Valve 3V210-08

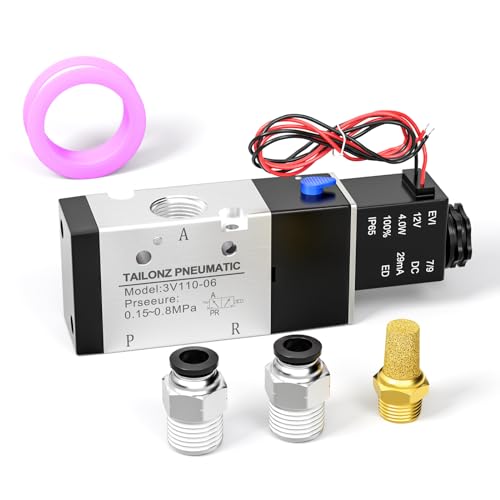

★Product Feature: ①Compact size, easy to assemble and disassemble. ②The manual button tests the status of the product when it is powered up. ③The valve body is made of aluminum alloy and has strong pressure resistance,Good seal, safe and reliable to use. ④The inner hole is machined by a special process, with low frictional resistance, low starting air pressure and long service life. ⑤Please pay attention to the direction of gas flow and the correct connection when installing. Pay attention to dustproof. It is recommended to install a muffler on the exhaust port. ⑥Air Solenoid Valve has Single Control Solenoid Valve have Internal pilot structure, sliding column structure, good sealing and responsive. ★Product Specification: ✔Model : 3v210-08;Type : 3 Ways 2 Positions. ✔Inlet = Outlet = PT 1/4" Exhaust = 1/4";CV value: 0.78, Pressure:0.15 ~ 0.8Mpa. ✔Voltage: 12V;Operation Type : Internally Piloted Acting Type. ✔Position & Way Number : Two-position, Three-way. ✔Female Thread Port Diameter : 11.4mm / 0.448". ★Package Included: 1 × 3V210-08(Solenoid Valve ) 1 × Teflon Tape 2 × PC6-N2 1 × Pneumatic Muffler SL-02
