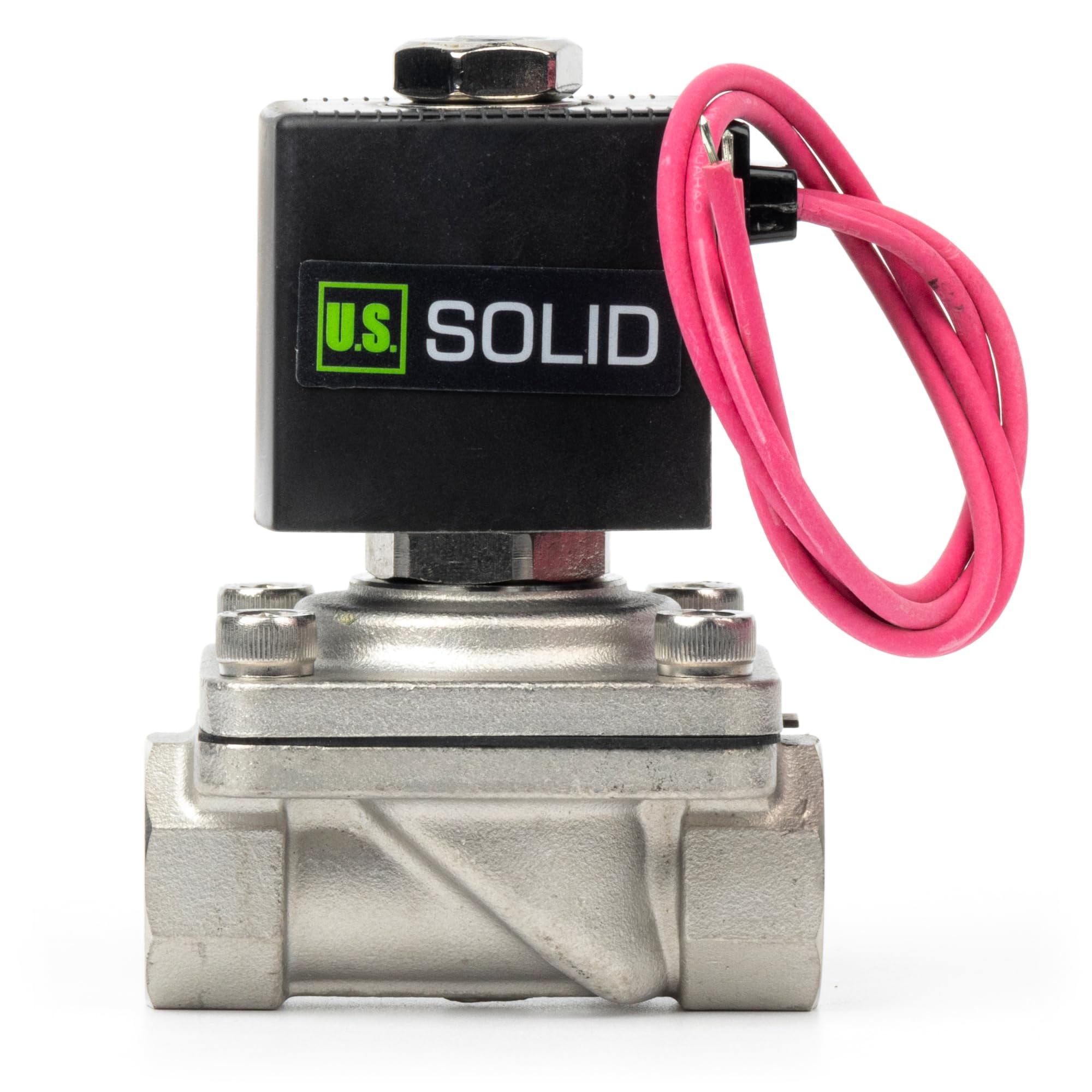

1/2" Stainless Steel Solenoid Valve - 12V DC Normally Closed Electric Solenoid Valve with Viton Seal, Lead Wire Type
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
1/2" Stainless Steel Solenoid Valve - 12V DC Features
-
Material: Made from industrial-grade brass or stainless steel, this solenoid valve is designed to resist corrosion, ideal for high-temperature applications, and compatible with various substances such as gasoline, diesel fuel, kerosene oil, natural gas, and air.
-
Response Time: Exhibiting high responsiveness, this valve can open or close in less than a second when triggered. It offers instantaneous flow control when powered on or off. Our engineers have also confirmed that, with proper maintenance and operating conditions, the valve's lifecycle extends well beyond a million cycles.
-
Low-pressure Starting: This solenoid valve is designed with a low-pressure starting functionality. This means it can initiate operations under minimal pressure, specifically no more than 0.1 bar. This unique attribute enhances the valve's versatility, enabling it to function effectively even in low-pressure scenarios.
-
Viton Seal: We've built this valve with a Viton seal, the most robust and high-performance rubber material known for its ability to withstand high temperatures and resist corrosive chemicals and various fluids like gasoline, diesel fuel, oils, and lubricants.
-
Latest Version: Representing our newest addition to the product line, this series of semi-direct solenoid valves has been redesigned to enhance efficiency. We've successfully reduced unnecessary volumes and significantly enhanced mechanical durability, delivering a higher-performing, more robust product.
About 1/2" Stainless Steel Solenoid Valve - 12V DC
Our new semi-direct solenoid valve series, constructed from industrial-grade brass or stainless steel, provides optimal performance for high-temperature projects and is compatible with various substances. It features a rapid open/close time of less than a second and a lifecycle of over a million cycles. Unique to this series is its low-pressure start feature, enabling it to function with no more than 0.1 bar. The valve incorporates a Viton seal, known for its durability and resistance to high temperatures and corrosive substances. In our latest design, we've successfully reduced redundant volumes and enhanced mechanical strength, resulting in a more efficient and robust product. Specifications: Size: 1/2" Body Material: Stainless Steel Flow Aperture: 15 mm Flow value: 4.5 Cv Gasket / Diaphragm / Seal: Viton Rated Voltage: DC 12 V, ± 10% Power: 17 W Operation Type: Semi-direct Lift Valve Operation Mode: Normally Closed Operating Pressure: 0.01-0.8 Mpa Operating Temperature: 14 - 302 degrees Fahrenheit (-10 - 150 degrees Celsius) Wiring: Lead Wire Suitable Media: Air, water, oil, natural gas, diesel fuel, kerosene etc. Quality assurance: CE Certified Valve is not intended to be energized continuously for more than 8 hours. This can lead to burnout of the coil, and malfunctioning of the valve.
