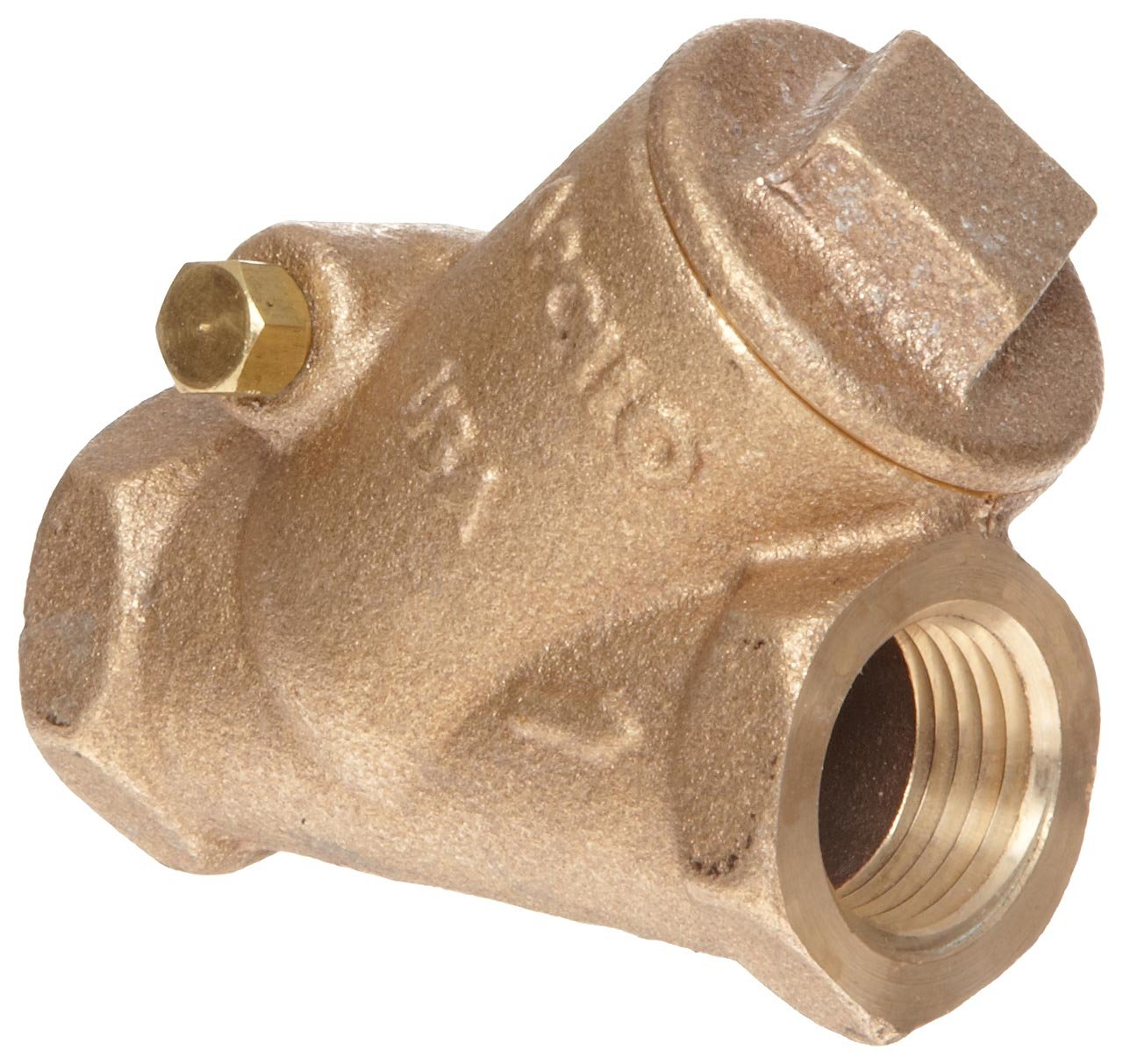

Apollo 163T Series Bronze Swing Check Valve, Class 125, PTFE Seat, 1/2" NPT Female
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
Apollo 163T Series Bronze Swing Check Valve, Class Features
-
Y-pattern check valve installs in both horizontal and vertical line with upward flow
-
Made of bronze for higher resistance to corrosion than brass and resistance to dezincification; PTFE seat provides resistance to reactive and corrosive chemicals
-
Female NPT threads for connecting to male threaded pipes
-
Maximum CWP of 200 psi at 100 degrees Fahrenheit, and maximum SWP of 125 psi at 353 degrees; working temperature range of -20 to 406 degrees Fahrenheit
-
Meets MSS SP 80 and ASME B1.20.1 for quality assurance
About Apollo 163T Series Bronze Swing Check Valve, Class
This class 125 Apollo 163T series swing check valve is a y-pattern check valve, and can be installed in both horizontal and vertical line with upward flow. The valve body is made of bronze for higher resistance to corrosion than brass, and are resistant to dezincification. Polytetrafluoroethylene (PTFE) seat provides resistance to reactive and corrosive chemicals. It has female NPT threads for connecting to male threaded pipes, creating a tighter seal than straight threads. The maximum cold working pressure (CWP) is 200 pounds per square inch (psi) at 100 degrees Fahrenheit, and the maximum steam pressure (SWP) is 125 psi at 353 degrees Fahrenheit. The working temperature range is -20 to 406 degrees Fahrenheit. This valve meets standards Manufacturers Standardization Society (MSS) SP 80, and American Society of Mechanical Engineers (ASME) B1.20.1 for quality assurance. Check valves have two ports and restrict the flow of fluids and other loose materials through a pipe or passageway to one direction. Flow enters through one port and exits through the other, closing when flow reverses or stops. Two common types of check valves are ball cone valves and swing check valves. A ball cone valve utilizes a spring-loaded ball seated against a cone-shaped interior surface to stop the flow of fluid in a forward direction, and a swing check valve has a movable disc on a hinge to block reverse flow. Check valves are rated by their cracking pressure (the minimum upstream pressure required for the valve to operate), and they are used in various water, gas, air, and steam lines. Apollo manufactures ball, mixing, and relief valves, actuators, water gauges, marine fittings, heating and plumbing products, and backflow prevention devices. The company, founded in 1928 and headquartered in Matthews, NC, meets International Organization for Standardization ISO/IEC 17025:2005 and makes products that meet ISO and American National Standards Institute (ANSI) standards.
