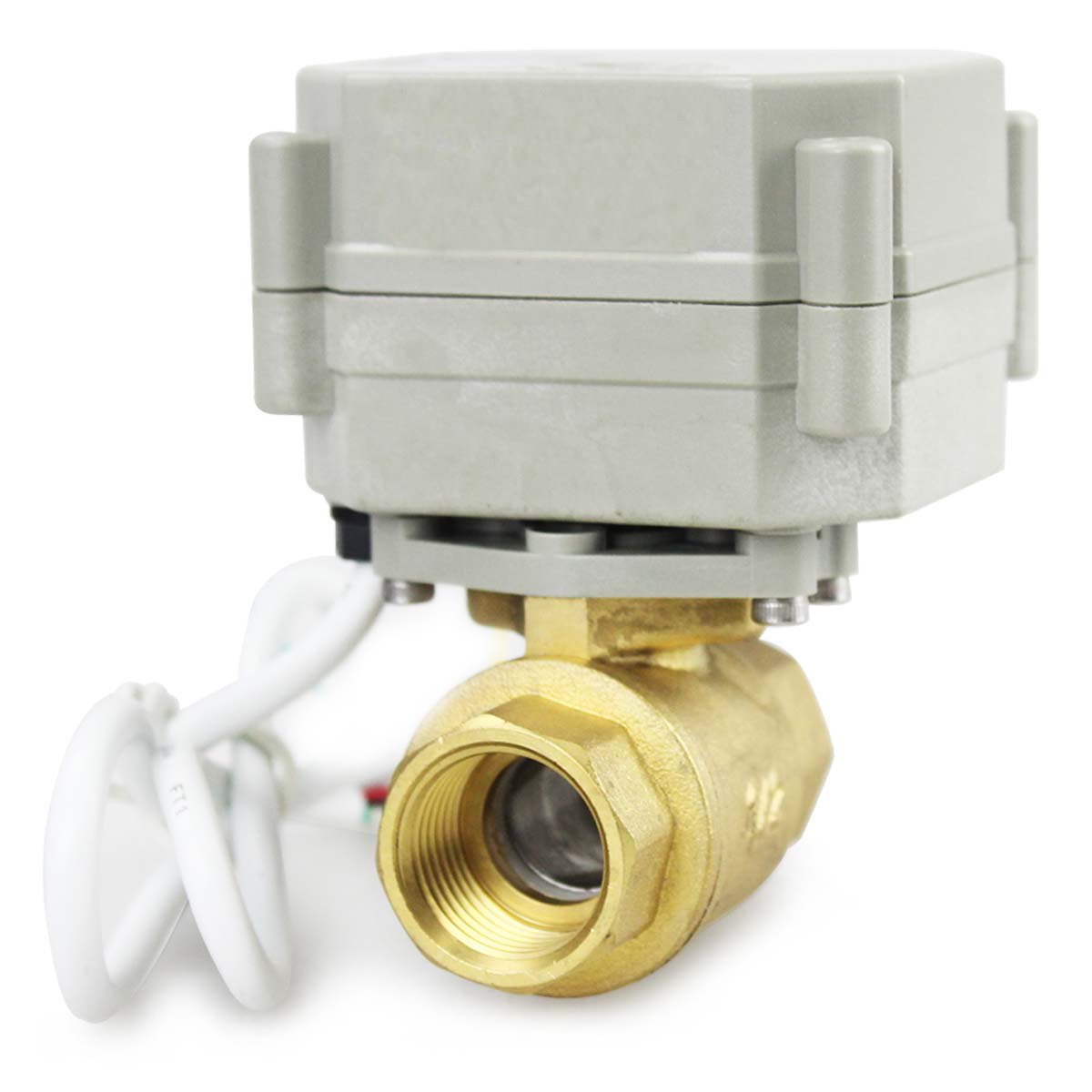

HSH-Flo 2 Way 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 12VDC Brass On/Off CR2-01 2 Wires Control Electrical Motorized Ball Valve (1/2 Inch)
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
HSH-Flo 2 Way 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 12VDC Features
-
Power To Open and Power To Closed;
-
12VDC CR2-01 2 Wires Control 2N.m Actuator;
-
2 Way 1/2" NPT Full Bore 15mm(0.59in) Brass Valve Body;
-
Limit Switches Bulid-In, Auto Cut Off Current When Arrived At Place(0Ma);
-
Manual Override And Working Indicator Installed, IP67 Water Proof Actuator.
About HSH-Flo 2 Way 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 12VDC
Technical Parameter: ◎Model: T15-B2-B; ◎Working Voltage: 12VDC; ◎Valve Dimension:1/2" NPT Female Thread Connection, 15mm(0.59in) Full Bore; ◎Wiring Diagram:CR2-01(2 Wires Control); ◎Valve Body Material: Brass; ◎Actuator Material: Engineering Plastics; ◎Open/Closed Time: About 3-5Sec.; ◎Suitable Media: Air, Water, Oil; ◎Power: Max 2 Watts; ◎Manual Override: Yes; ◎Indicator: Yes; ◎Working Current: Max 500Ma When Action, Cut Off Current When Arrived At Place; ◎Max. Torque Force For Aucator: 2 N.M; ◎Cables Length: 0.5 Meters; ◎Max Working Pressure:145PSI(1.0MPA); ◎Liquid Temperature: 32°~212°F (0°~100°C); ◎Environment Temperature:5~122F(-15°~50°C); Application: ◎HVAC; ◎Water Treatment; ◎Chemical Process; ◎Small Industrial Equipment For Automatic Control; ◎Replacing Solenoid Valve, Particularly When Solenoid Cannot Work Reliably; ◎Automatic Control Systems; ◎Efficient Water-Saving, Water Equipment; ◎Solar Hot Water Project; ◎Regular Watering The Flowers, Timing Humidifying, Timing of Drainage of Air Compressor. Features: ◎Smart Shape, Perform Reliably, Large Output Torque, As Long As 50000-100000 Times , Convenience For All Kinds Of Requirements; ◎Float Ball design, No Leak, Large Flow, The Valve is Bi-directional Ball Valve , Regardless of Inlet And Outlet , Most Suitable for Heavy Dirt and Long Time No Action; ◎The Conditions That Solenoid Valve Can Not Be Worked; ◎High Protection Class, Can Be Worked In Most Conditions; ◎POM Cooperate With Metal Gear, The POM Gear is Used in High-Speed Level to Reduce Noise, At The Same Time Metal Gear is Applied At The Low-Grade To Ensure The Reliability of The Gear; ◎Electrical and Mechanical Limit Integrated Design, Accurate Localization ,High consistency , Put an End to Swing of Valve.
