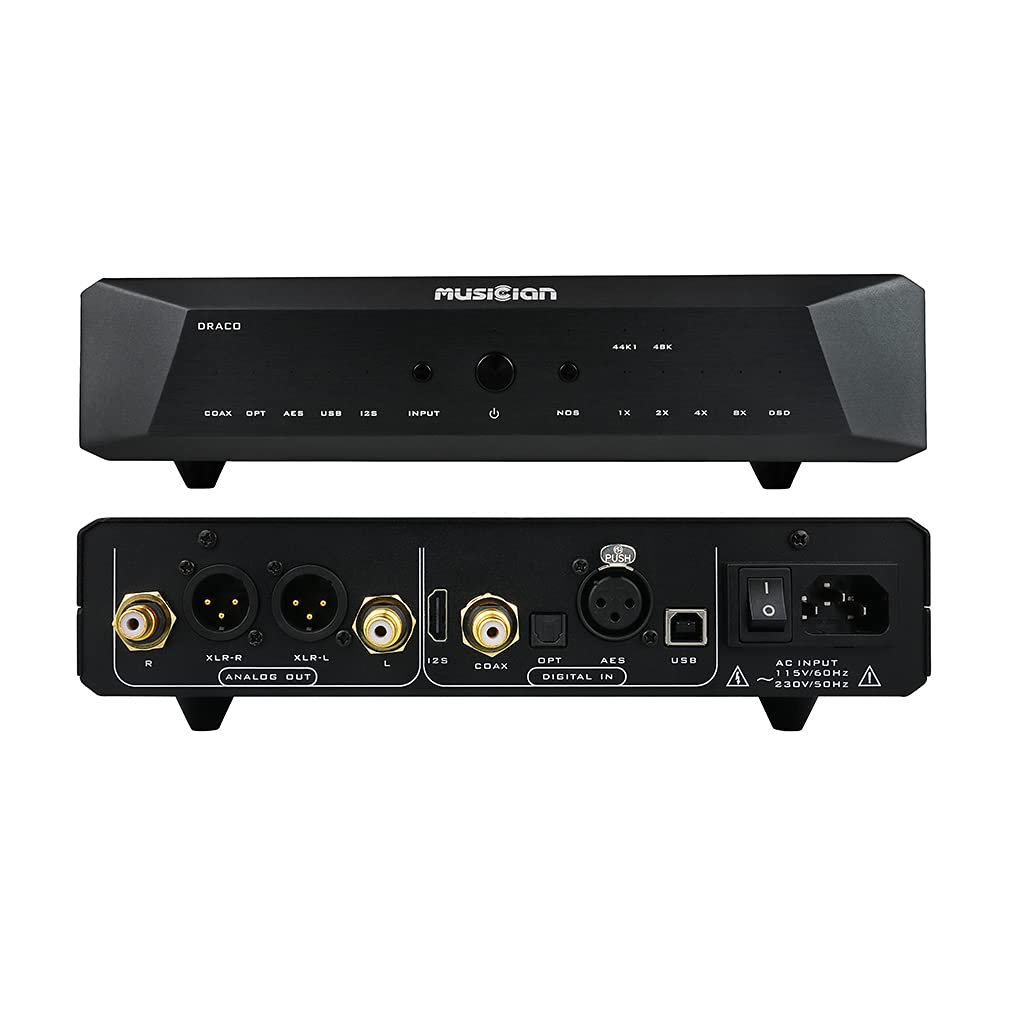

Musician Draco R2R DAC HiFi Entry-Level Decoder USB/ I2S/ AES/Opt/Coax Input XLR/RCA Output DSD1024 PCM1536 Home Audio Desktop Decoder (Black)

Pay with

Musician Draco R2R DAC HiFi Entry-Level Decoder Features

• 【R2R Array DAC True Balance】R-2R network control decoding linear error, high decoding speed, low digital noise, not only to ensure low distortion of the audio signal, but also to ensure very low background noise music.

• 【Self-Developed Technology】Make the sound more outstanding. Using self-developed and designed digital, which can greatly increase dynamic contrast, analysis, and more natural and delicate timbre, etc.

• 【Multiple Ports & Multiple Options】DRACO has a complete digital audio input interface that supports high-definition audio decoding and playback output. The digital input is equipped with optical, USB, I2S, AES Balance, and Coaxial . It can meet the needs of different people for the use of equipment.

• DSD1024, PCM1536: support USB and I2S input (Audio source must be compatible with the machine’s interface).【Simple Design Concept】The simple design makes the signal circuit reach a more ideal state, and the sense of hearing is more clear and balanced than the traditional design.

• 【Tailored for The Sound & Packaged Linear Power Supply】Using the main control ALTERA high-efficiency chip, the audio signal transmission is not distorted and the sound quality can reach the HIFI standard hardware; Power supply adopts a thick metal package and is equipped with an O-core transformer. The linear regulator that can effectively isolate the digital and analog parts of the multi-level power supply can ensure low noise and stable power supply voltage for the DAC.

About Musician Draco R2R DAC HiFi Entry-Level Decoder

Musician Draco R2R DAC Entry-Level Decoder HiFi Desktop DAC Decoder DSD All inputs support DSD64-DoP DSD1024 only support USB input PCM All inputs support 24bits/44.1, 48, 88.2, 96, 176.4, 192KHz 1536kHz for USB and I2S input Parameters: PCM format output voltage: (0dB @ 1KHz) (Vrms) XLR: 2.8V RCA: 1.4V DSD format output voltage: (0dB @ 1KHz) (Vrms) XLR: 2.0V RCA: 1.0V Distortion THD% (rated operating conditions): XLR: 0.0016 RCA: 0.007 SNR (dB) (rated operating conditions, A weighting): XLR: 126 RCA: 111 Effective frequency response of gain limitation: + 1 / -3dB XLR: 10-85K RCA: 10-85K Separability (dB) (Rated operating conditions, A weighting): XLR: 110 RCA: 119 Phase: XLR: 0.016 RCA: 0.031 Output noise test (uVrms): XLR: 1.3u RCA: 4u Power consumption of all machines (W): (0dB @ 1KHz)-AC230V, 5.6W Decoder architecture: R2R XLR / RCA: 21Bit Interface and function of Draco decoder: Input interface: optical fiber, coaxial, AES balance, I2S , USB Output interface: one set of XLR balance, one set of RCA Standby: standby / start button Input: signal input selection button NOS: oversampling on / off button, the indicator light is off, it means oversampling; The indicator light is on and the original sampling rate is on Draco decoder features description: R2R array DAC, true balance; Multiple input interfaces to meet the needs of different groups; Using Alter master control, ARM HIgh-Performance chip; Packaged linear power supply, o-core transformer; The power consumption of the whole machine is 5.6W.
