OONO 16 Amp 2x12 Position Terminal Block Distribution Module for AC DC

Product ID : 45908107

Product Rating

4.7 out of 5 stars

---

  Share   Tweet

share more:

---

Galleon Product ID 45908107

Shipping Weight 0.11 lbs
I think this is wrong?

Model D-1410

Manufacturer OONO

Shipping Dimension 4.96 x 2.09 x 1.14 inches
I think this is wrong?

See more product information!

-

₱ 1,056

Price Tracker

+ ₱ 150
International Shipping

via AIR

Get it between 2025-01-23 to 2025-01-30. Additional 3 business days for provincial shipping.

---

BUY NOW!

*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown

---

• Electrical items MAY be 110 volts.
• 7 Day Return Policy
• All products are genuine and original
• Cash On Delivery/Cash Upon Pickup Available

Pay with

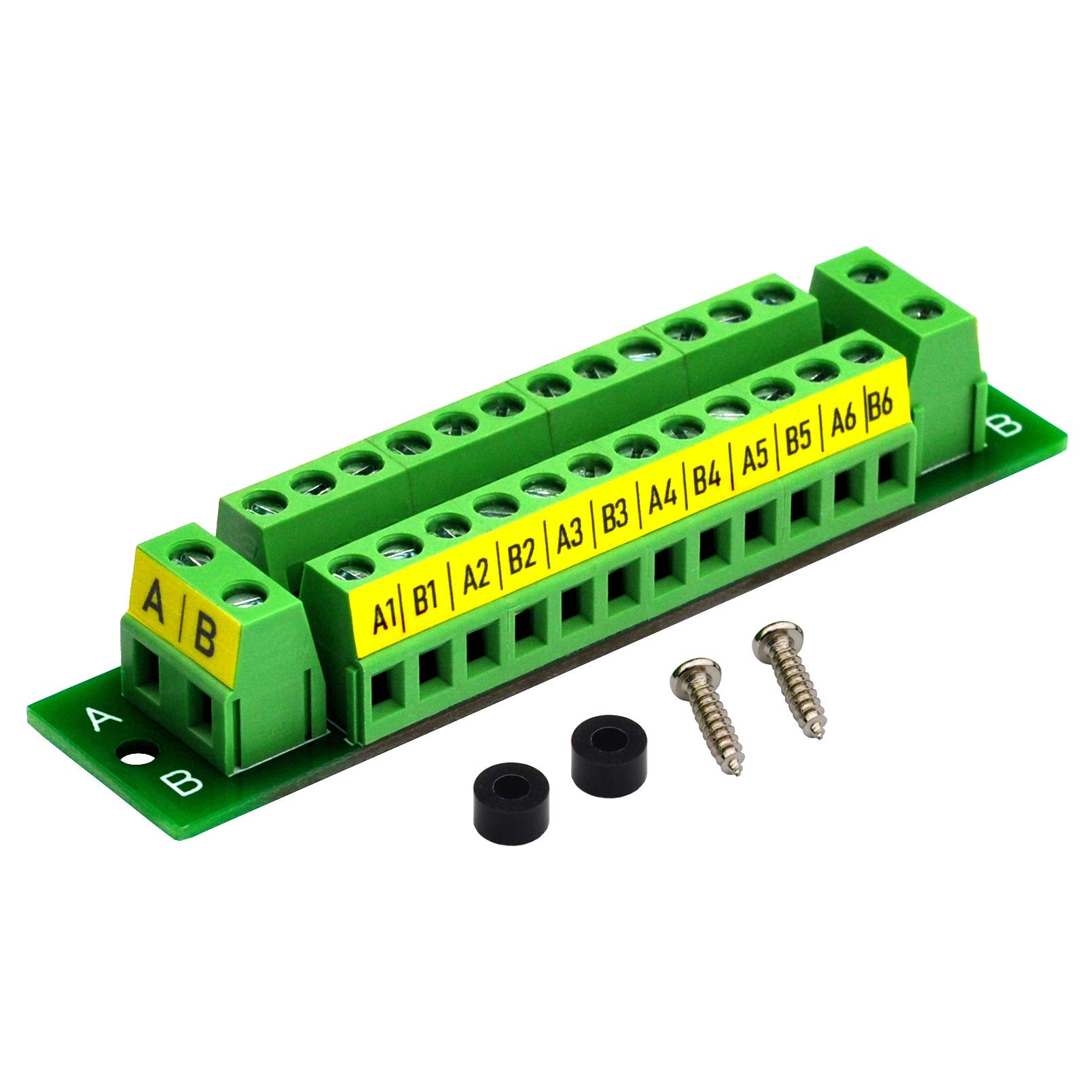

OONO 16 Amp 2x12 Position Terminal Block Features

• 16Amp 48V 2x12 position screw terminal block distribution module. Support for multiple module extension connections.

• Rated current 16 Amp(total input or output), Maximum voltage 48V

• A / B terminal blocks, Pitch 7.5mm/0.295", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.

• A1~B6 / A7~B12 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.

• UL CE CQC certified terminal blocks, FR-4 glass fiber PCB.

About OONO 16 Amp 2x12 Position Terminal Block

1, 16Amp 48V 2x12 position screw terminal block distribution module. Support for multiple module extension connections. 2, Rated current 16 Amp(total input or output), Maximum voltage 48V. 3, A / B terminal blocks, Pitch 7.5mm/0.295", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass. 4, A1~B6 / A7~B12 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass. 5, UL CE CQC certified terminal blocks, FR-4 glass fiber PCB.
