Chitu Systems Digital UV Light Meter Tool for 405nm Standard Photopolymer LCD/DLP/SLA Resin 3D Printers
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
Chitu Systems Digital UV Light Meter Tool for 405nm Features
-

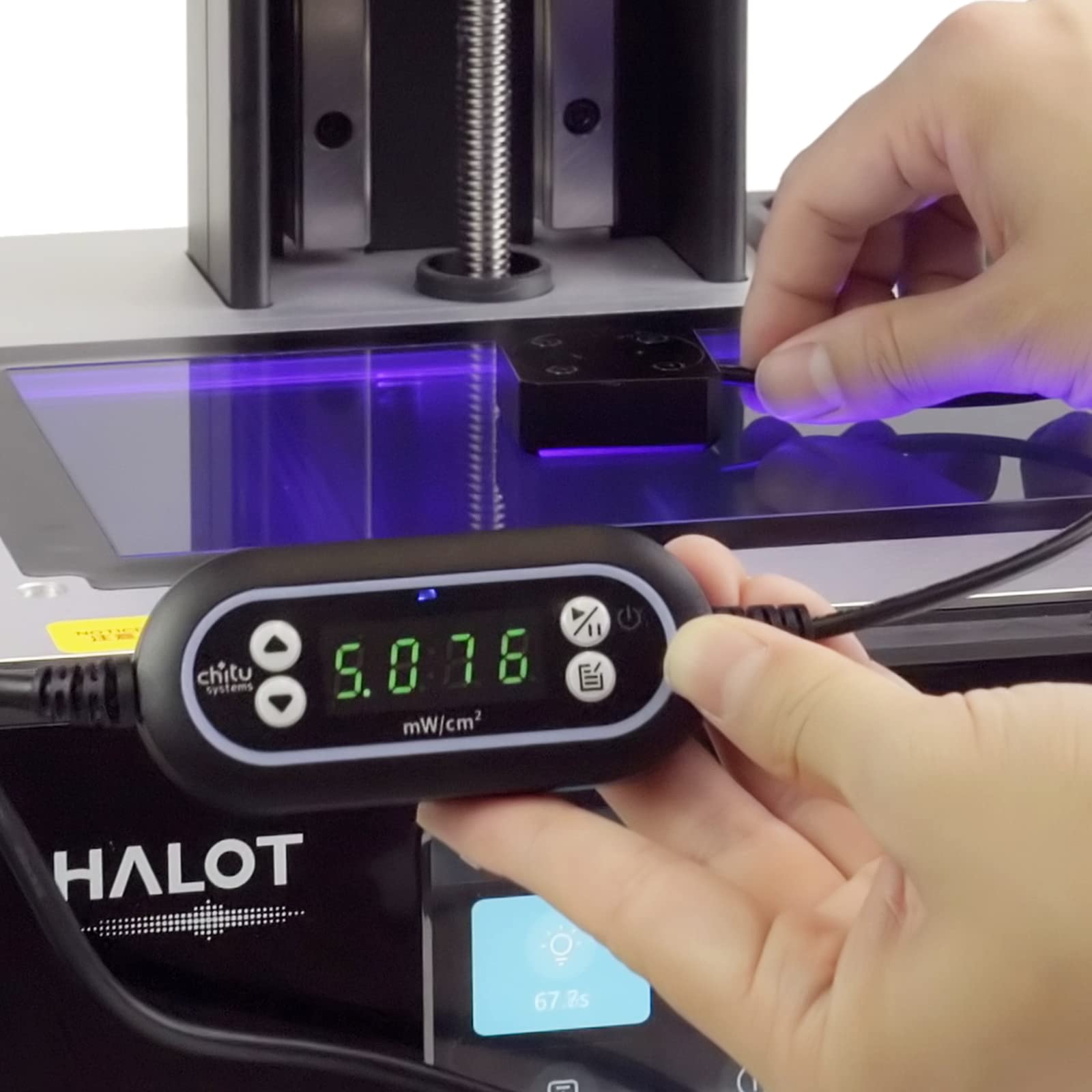

Chitu Systems UV meter tool for resin 3D printers 405nm digital UV light meter,portable UV intensity meter for resin 3d printers, 405nm only
-
[Get Light Strength and Uniformity] You can compare the different data between different accessories like FEP, nFEP, and screen protector films,different areas like the center and corners, then adjust the setting to get a similar print quality
-
[Make Exposure Tests Easier] The resin curing time depends on the strength of the UV light source. Once you know how it relates between exposure time and light strength, you get the right direction to do the exposure test
-
[Find Dead Pixel] There may be dead pixels we can’t see on the screens, but it causes some print fail, especially when you try a lot of different settings and still don’t get a successful print
-
[Printer Maintain] The light will decay based on long-term work; for a resin 3d print farm, it is necessary to test if your printers keep the best status. You may adjust PWM or use higher exposure time when decay happens
About Chitu Systems Digital UV Light Meter Tool For 405nm
Chitu Systems UV Meter Tool for Resin 3D Printers 405nm Digital UV Light Meter Specification Probe type: P405L1 Probe size: 36*36*13.8mm Spectral response range: 405nm±3nm T est hole diameter: φ=10mm Power range: 0~50000μW/cm² Measuring accuracy: ±10% Input: 5V USB It requests a 5V voltage supply, the best way is to use the board USB port directly before you go to print. Keep away from resin. If resin leaks on the probe, clean it with isopropyl alcohol with cotton. Extreme temperatures above 70℃ and below -10℃ can impact measurements, use in the indoor environment only.
