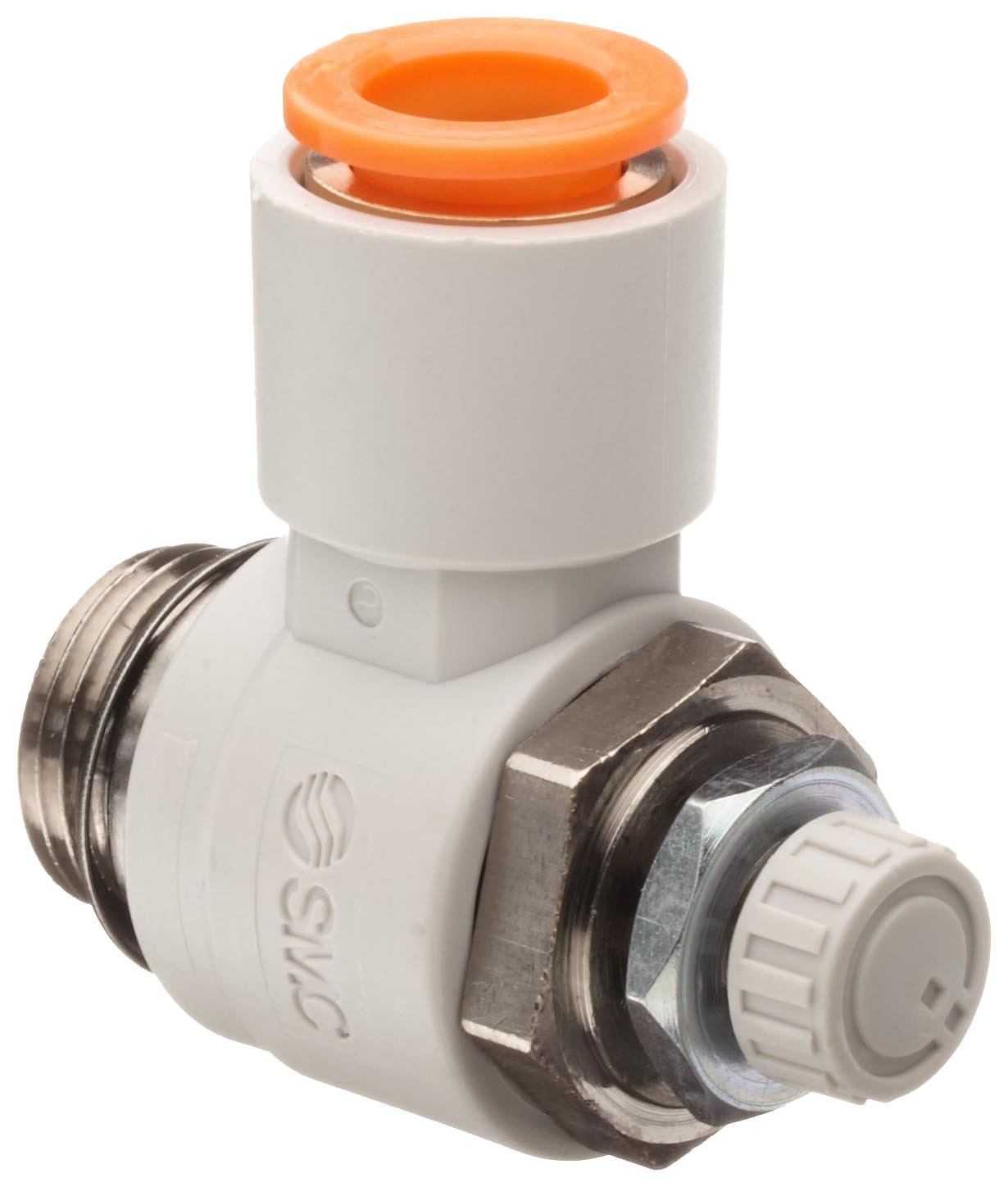

SMC AS4201F-U04-11 Air Flow Control Valve with Push-to-Connect Fitting, PBT & Nickel Plated Brass, Elbow, 1/2" Uni Thread Male x 3/8" Tube OD
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
SMC AS4201F-U04-11 Air Flow Control Valve with Features
-
Elbow type air flow control valve for controlling the speed of pneumatic cylinders
-
Polybutylene terephthalate (PBT) body for strength and light weight, internal metal parts of nickel-plated brass for corrosion resistance
-
Meter-out configuration with male universal threads on the inlet port and a push-to-connect fitting on the outlet port
-
Knob with ten needle rotations for precise manual adjustment of flow rate
-
Temperature range of 23 to 140 degrees F (-5 to 60 degrees C)
About SMC AS4201F-U04-11 Air Flow Control Valve With
The SMC AS elbow air flow control valve is made of polybutylene terephthalate (PBT) plastic and nickel-plated brass with male universal threads on the inlet port and a push-to-connect tube fitting on the outlet port. The valve body is made of PBT for strength and light weight, and the internal metal parts are made of nickel-plated brass for resistance to corrosion. This valve is designed to be located downstream of the cylinder for meter-out control, and the knob provides ten needle rotations for precise manual adjustment of the air flow. The universal inlet fitting will connect with any standard chamfered female thread, and the push-to-connect outlet fitting allows a one-touch connection to nylon, soft nylon, or polyurethane tubing. The maximum operating pressure is 145 pounds per square inch (psi), and the ambient and fluid temperature range is 23 to 140 degrees F (-5 to 60 degrees C). This air flow control valve has a lock nut to lock the needle setting. Air flow control valves (also called speed controllers) regulate the flow of compressed air into or out of pneumatic cylinders to control the speed of motion of the piston in the cylinder. The valves have an adjustable metering needle and a check valve to control the flow in only one direction. Air entering the valve is blocked by the check valve and forced to pass through the needle valve, and the position of the needle is adjusted to determine the rate of flow. Pneumatic systems with cylinders are used for applications such as truck and train air brakes, air compressors, and tools for mining, manufacturing, and construction. SMC Corporation of America, a U.S. subsidiary of SMC Corporation in Japan, was founded in 1959 in Tokyo. SMC manufactures actuators, valves, airline equipment, connector fittings, electrical products, vacuum products, dryers, temperature control chillers, and a broad range of related accessories. SMC Corporation of America is headquartered in Noblesville, IN, and meets International Organization for Standardization (ISO) 9000:2000 standards.
