Hantek DSO5102P Digital Storage Oscilloscope USB 100MHz 1GSa/s 40K,2 Channel,2CH
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
Hantek DSO5102P Digital Storage Oscilloscope USB Features
-
Remote Control and U Disk Storage: This oscilloscope can store more than 1000 waveforms information, and can upgrade the system through the USB port, support plug-and-play USB storage devices and communicate with the computer and remote control through USB
-
Automatic Measurement Function: With 32 different kinds of waveform parameters automatic measurement, with FFT standard, provide manual/tracking automatic/cursor test function, achieved the goal of more accurate measurement
-
Large TFT LCD Display: Large 7-inch 64K color TFT LCD display with a resolution of 800 * 480. It can clearly show any measured alternating current, including sine, square, sawtooth and triangular waves
-
Easy and Portable to Use: USB design, multi-function button design with clear button division, improve work efficiency; folding handle design, convenient storageand portable, making work more convenient
About Hantek DSO5102P Digital Storage Oscilloscope USB

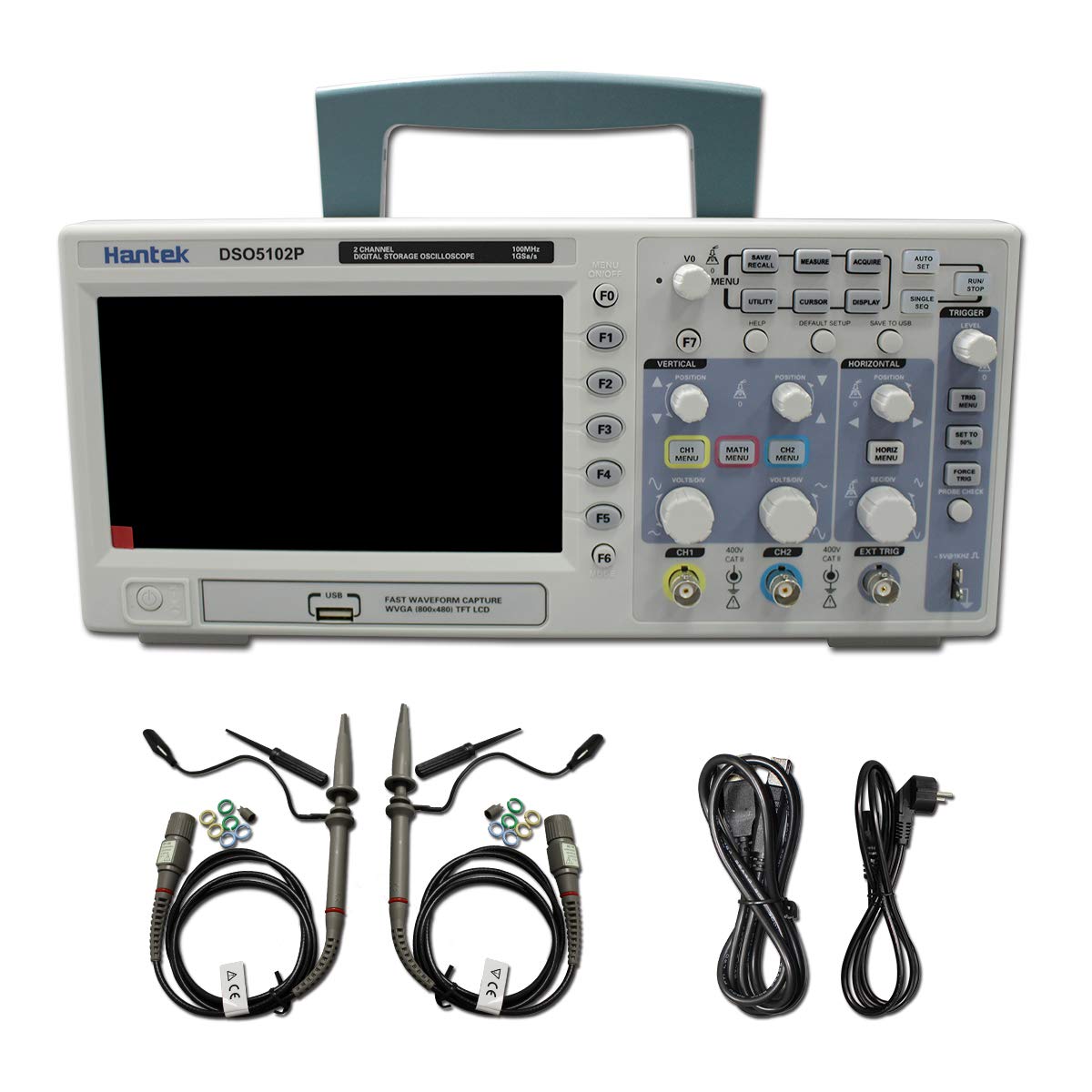

Features: 1. 100MHz bandwidths 2. 1GSa/s Real Time sample rate 3. Large (7.0-inch) color display,WVGA(800x480) 4. Record length up to 40K 5. Trigger mode: edge/pulse width/line selectable video/slop/overtime etc. 6. USB host and device connectivity, standard 7. Multiple automatic measurements 8. Four math functions, including FFTs standard 9. Provides software for PC real-time analysis Specification: Bandwidth: 100MHz Channel: 2 Real-Time Sample: 1GSa/s Equivalent Sample: 25GSa/s Memory Depth: 40K Rise Time: 5ns Time Base Accuracy: ±50ppm Time Base Range: 4ns/div-40s/div Input Impendance: 1M VOLTS/DIV Range: 2mV/div-5V/div A/D Converter: 8 bit Bandwidth Limit: 20MHz Trigger Types: Edge, Video, Pulse, Slope, Over time, Alternative Trigger Source: CH1, CH2, EXT, EXT/5, AC Line Trigger Modes：Auto, Normal, Single Coupling Type：DC, AC, Noise Reject, HF Reject, LF Reject Math: +,-,x,÷,FFT Standard Probe: PP150 Package Including: 1 x 5102P Oscilloscope Host 2 x Passive Probe - PP150 1 x USB Cable 1 x Installation CD 1 x Power line 1 x Replaceable Test Wires Probes Set 1 x Original box
