Micsig 700V 100MHz High Voltage Differential Probe Features

• Widely Used: The attenuation rate is 10X/100X, widely used in any brand of oscilloscope.

• Maximum differential test voltage (DC+ACPK-PK): 70V (10X), 700V (100X). You can safely measure floating voltages up to 700V and have a bandwidth up to 100 MHz.

• Easier and Safer Use: High voltage differential probes sample high impedance isolation between input and output to protect person safety. Power supply USB DC 5V output, more portable while Oscilloscope has USB interface.

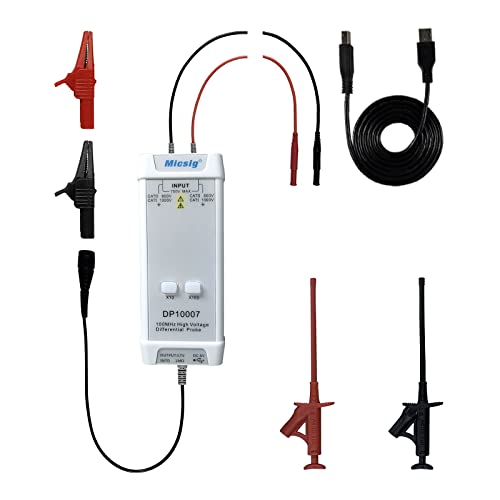

• Versatile Kit: All 6 pieces with three different connectors help to test various on different occasions, including 2 alligator clips, 2 hook clips and 2 pincer clips.

• Applications: Floating Measurements, Switch-Mode Power Supply (SMPS), Motor Drive Design, Power Device Testing & Evaluation, Power Converter Testing & Design.

About Micsig 700V 100MHz High Voltage Differential Probe

Specification: Bandwidth: 100MHz Rise Time: 3.5ns Range Selection(Attenuation Rate): 10X/ 100X Accuracy: ±2% Maximum Differential Test Voltage(DC+ACPK): 70V(10X)/ 700V(100X) Maximum input common mode voltage(DC+ACPK): 70V(10X)/ 700V(100X) Maximum Input Voltage-to-Earth: 600V CAT Ⅰ/ 1000V CAT Ⅱ CMRR：≤-80dB@50Hz, ≤-60dB@20KHz, ≤-50dB@1MHz, ≤-40dB@10MHz Input Impedance: 8MΩ/1.25pF(differential), 4MΩ/2.5pF(single-ended to ground) Output Voltage: ≤7V Overroad Alarm: Button light flashes Power Supply: DC 5V, USB Supply Power: 1.25W Dimension: 1.45cm*6cm*2.7cm Input cable length: Approx 45cm Output cable length: Approx 90cm Operating Temperature: 0℃~40℃ Operating Humidity: 10%~85%RH Storage Temperature: -30~70℃ Storage Humidity: 5%~90%RH WHAT'S INCLUDED? 1x Power Supply 1x USB power cable 2x hook clips, in red and black pairs 2x alligator clips, in red and black pairs 2x pincer clips, in red and black pairs 1x storage box 1x Chinese manual
