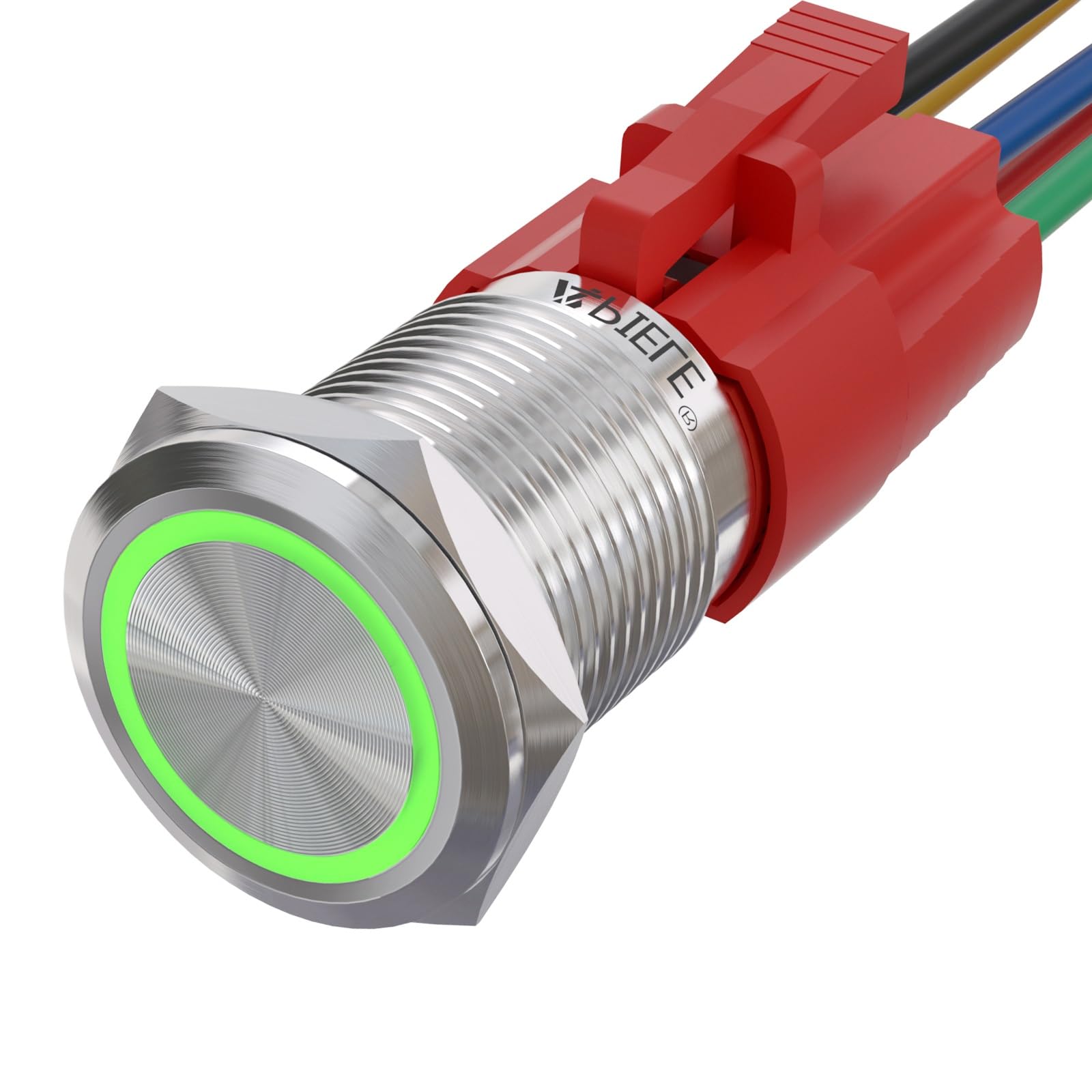

APIELE 16mm Momentary Push Button Switch On Off Stainless Steel with 12V LED Angel Eye Head for 16mm 0.63" Mounting Hole with Wire Socket Plug Self-Reset (Green)

Product ID : 35710591

Product Rating

4.6 out of 5 stars

Available options (color, size, package, etc). Prices may vary.

---

  Share   Tweet

share more:

---

Galleon Product ID 35710591

Shipping Weight 0.04 lbs
I think this is wrong?

Model GQ16F-11E-12T

Manufacturer APIELE

Shipping Dimension 5.71 x 3.78 x 0.75 inches
I think this is wrong?

See more product information!

-

₱ 921

Price Tracker

+ ₱ 150
International Shipping

via AIR

Get it between 2024-12-03 to 2024-12-10. Additional 3 business days for provincial shipping.

---

BUY NOW!

*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown

---

• Electrical items MAY be 110 volts.
• 7 Day Return Policy
• All products are genuine and original
• Cash On Delivery/Cash Upon Pickup Available

Pay with

APIELE 16mm Momentary Push Button Switch On Off Features

• ATTENTION: This is a Momentary Push Button Switch! Push & Hold, ON; Release, OFF, Contact Configuration: 1NO1NC

• Brand New Silver Stainless Steel Ring LED Pushbutton Switch; LED voltage: 12V only, Hole size required: 0.63''/16mm

• Electrical life: 200 thousand times. Mechanical life: 1,000,000 cycles

• High quality metal material & IP65 waterproof protection can be used in wet or dusty enviroment.

• GET NEW ONE IF NOT MAN MADE BROKEN IN 3 YEARS SINCE YOU PURCHASE THE SWITCH.

About APIELE 16mm Momentary Push Button Switch On Off

Momentary switch  Momentary switches only remain in their on stateas long as they're being pressed.  Widely Use Widely used in various additional electricequipment, relay, inside & outside the car(Such as critical lights,foglight, dome light) or any circuit controls -- any application you can thinkof! The switch is IP67 rated, it is also an anti dust and waterproof one whichmakes it great for outdoor use.  Specification:  - Switch Rating: 5A/250VAC  - Contact resistance: ≤30mΩ  - Insulation resistance: ≥1000mΩ  - Dielectric intensity: 2000VAC  - Operation Temperature: -20℃~ +55℃  - Mechanical life: 1,000,000 cycles  - Electrical life: 200,000 cycles  - Panel thickness: 1 - 10mm  - Nut torque: 5 - 14Nm  - Protection level: IP67, IK10  - Mounting Cut Hole: 16mm  - Operation Type: Momentary  - Switch Contact: 1NO 1NC  - LED Rating: 15mA, AC/DC 12V  - LED Pattern: Ring Indicator  - Contact Material: Silver alloy  - Button Material: Stainless Steel  Note:  - The switch come with a rubber O-ring whichmakes it splash resistant but it can NOT be submerged underwater.  Packing Include: 1 x push button switch                             1 x pigtail socket                            1 x wiring diagram
