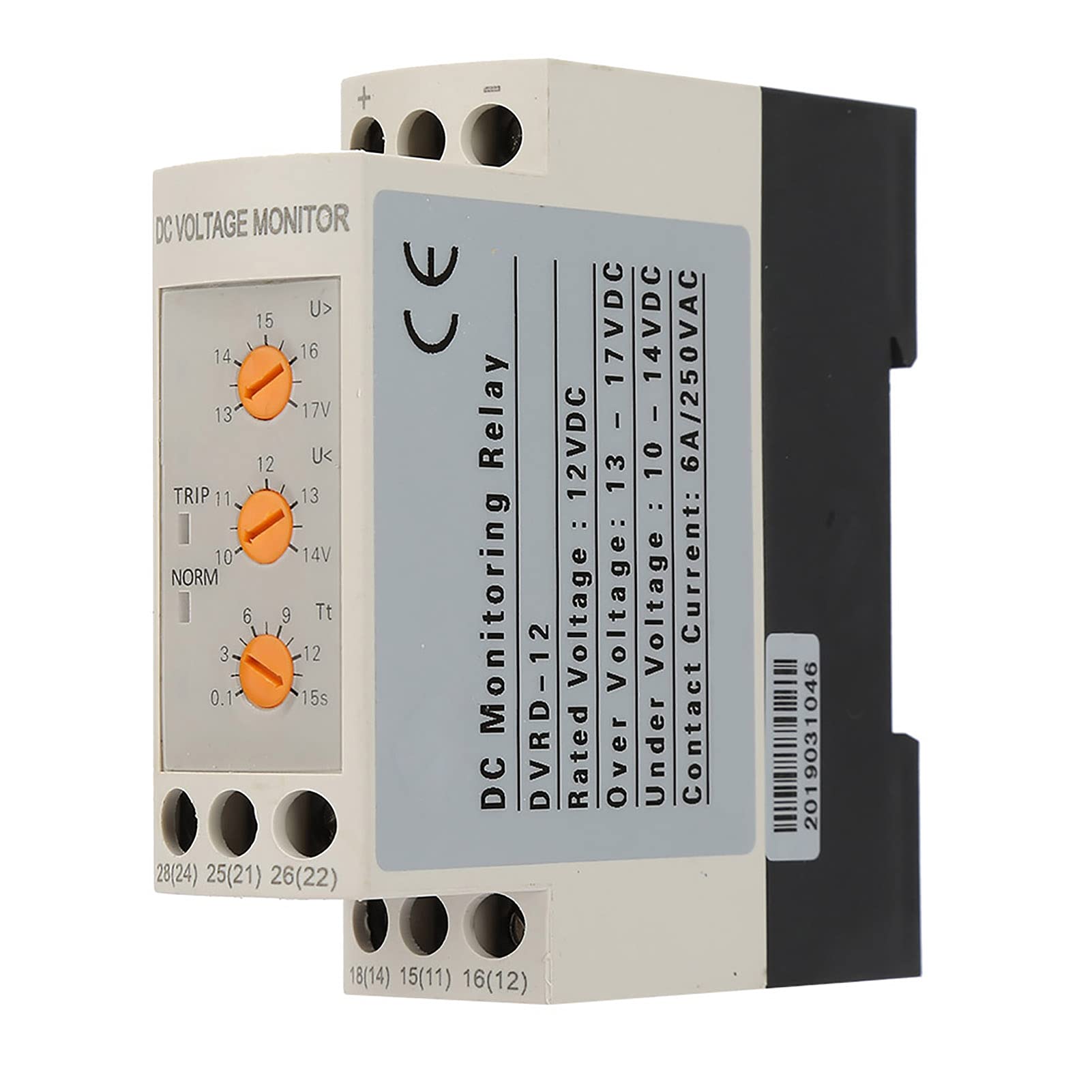

Voltage Monitoring Relay DC 12V/24V/48V Over Voltage and Under Voltage Protection Relay 35MM Guide Rail Voltage Protector Device(DC 12V)
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
Voltage Monitoring Relay DC 12V/24V/48V Over Features
-
2 INDICATOR LIGHT: Action time of over-voltage protection relay can be adjusted, 2 sets of normally open and normally closed contacts, 2 indicator lights indicate various working conditions
-
ADJUSTABLE: The overvoltage protector is not additional auxiliary power supply is required. Both over-voltage and under-voltage value can be adjusted
-
REAL-TIME MONITOR: The overvoltage undervoltage protector relay is convenient to use, real-time monitoring of dc overvoltage and undervoltage faults
-
GUIDE RAIL MOUNT: The voltage monitoring relay made of high quality meterial, with standard modular structure, guide rail type installation
-
APPLICATION: The motor overvoltage protector can be used for dc motor, battery, UPS power supply, dc switchgear, dc panel, industrial control system
About Voltage Monitoring Relay DC 12V/24V/48V Over
Specification: Protection function: over voltage, under voltage Model: DVRD - 12/24/36/48(Optional) Rated voltage: DC 12V/24V/36V/48V(Optional) Monitoring circuit: direct current circuit Protection function: over voltage, under voltage Overvoltage regulation range: DC 12V: 13-17V DC 24V: 26-34V DC 36V: 39-51V DC 48V: 52-68V Undervoltage adjustment range: DC 12V: 10-14V DC 24V: 20-28V DC 36V: 30-42V DC 48V: 40-56V Action delay range: 0.1-15s Display mode: normal, action 2 LED lights indicate the working status Contact form: 2 set of normally open and normally closed contacts Contact capacity: 6A 250VAC (resistivity) Installation: 35mm guide rail Overall dimension: Approx. 79 * 23 * 79mm / 3.1 * 0.9 * 3.1in Weight: 200 g / 7.1 oz(approx.) Package list: 1 x Overvoltage Undervoltage Protector Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
