BUNKER INDUST 175A 1/0AWG Battery Quick Connect Wire Harness Plug Kit Battery Cable Quick Connect Disconnect Plug for Winch Auto Car Trailer Driver Electrical Devices,2 Pcs,Red
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
BUNKER INDUST 175A 1/0AWG Battery Quick Connect Features
-
☑【UNIVERSAL】Heavy-duty & multipurpose universal battery quick connector set from Driver Recovery Products. Provides simple and convenient method for connect/disconnect power to a winch or other electrical device such as remote battery chargers, power inverters, solar setups,trailers, or for any purpose requiring a high-current, quick-disconnect connector.
-
☑【DURABLE】Combined shell made from sturdy PC fire-retardant materials, allowing for over 10,000 connect/disconnect actions. With fitted rubber boot covers, protect against dust, moisture and corrosi
-
☑【SAFE】Both ends are suitable for connection to the power or load side because of its identical connectors.The ends are made to connect only one way, making it impossible to connect the wrong polarities to one another,preventing accidental reverse polarity when hooking up a charger.
-
☑【EFFICIENT】The heavy duty components are suitable for low or medium current use. With 4 terminal pins made of red copper coated with silver have strong electrical conductivity and reduce the resistance to guarantee stable voltage and current.
-
☑【INSTALLATION】INSTALLATION:It is very easy to use and install. Insert the wires into the terminal pins, then solder or crimp them. Insert the terminal pins into the connector housing and lock them in place
About BUNKER INDUST 175A 1/0AWG Battery Quick Connect

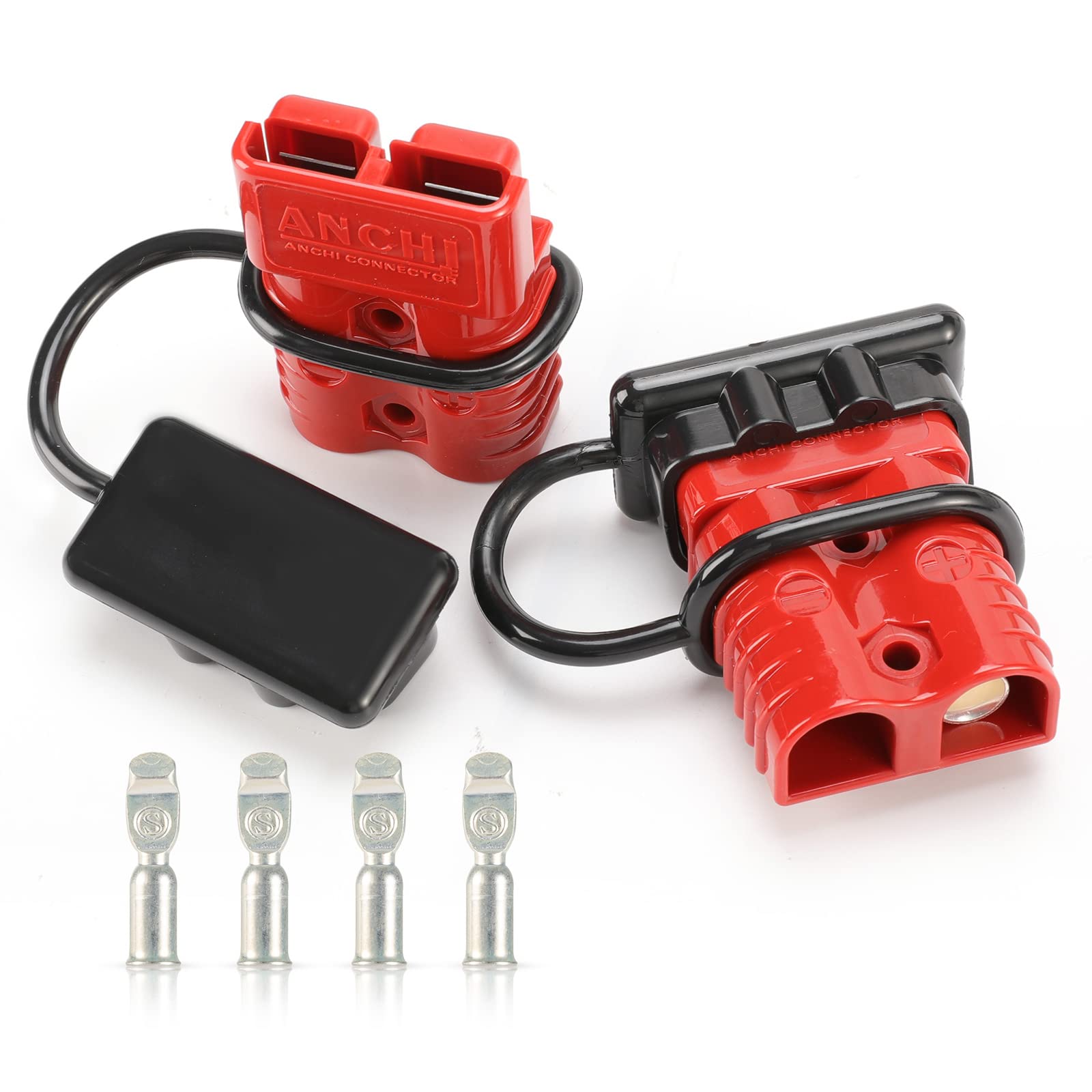

✌Specifications ①Color: Red ②Material: PC fire-retardant materials+stainless steel ③Rated Current: 175A ④Gauge: 1/0 A.W.G ⑤Rated Voltage: UL rated at 600 volts DC or AC ⑥Contacts material: copper plate with silver ⑦Fire rating: 94-V0 ⑧Connector Dimension: 3-1/8"" x 2-1/8"" x 1"" ⑨Terminal Pins Diameter: 0.5" ⑩Medium Withstanding Voltage: 2200DC ⑪Connect/disconnect Cycles: 10,000 times ⑫Operating Temperature Range:-4°F-221°F / -20°C-105°C ⑬Suitable For: UPS battery power connector✌How to Install ♥Insert the wires into the terminal pins, then solder or crimp them. ♥Insert the terminal pins into the connector housing and lock them in place ♥Operating Temperature Range: -4°F-221°F / -20°C-105°C ♥Connector Dimension: as the picture show ♥ Vibration Resistance: Excellent ♥Impact Resistance: High✌Package includes ●2x Connectors ●4x Terminal pins ●2x Rubber boot caps
