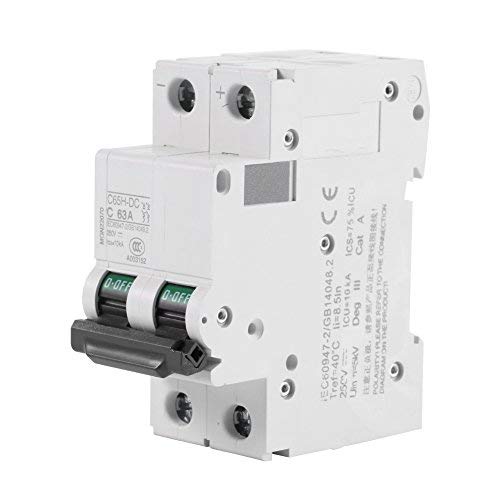

Low-Voltage Miniature Air Circuit Breaker, 250V DC 2P DIN Rail Mount Miniature Circuit Breaker for Solar Panels Grid System, Wind and Solar Hybrid System and Other DC Systems (63A)
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
Low-Voltage Miniature Air Circuit Breaker, 250V DC Features
-
PARAMETER: Model(C65H-DC), pole(2P), current(63A), voltage(DC250V), ICU(10kA).
-
FUNCTION: This is a great circuit breaker used to protect an electrical circuit from damage caused by excess current resulting from an overload or short circuit. And supports short circuit protection, overload protection.
-
DIN RAIL MOUNT: It can be mounted conveniently on DIN rail, DIN rail is not included.
-
FEATURE: Fast Closing to ensure reliable operation of the load and prolong the life of electrical circuit breakers.
-
APPLICATION: This miniature circuit breaker is widely used in solar panel grid system, wind and solar hybrid system, RV solar panel, solar charge controller, photovoltaic charge controller, and many other DC systems.
About Low-Voltage Miniature Air Circuit Breaker, 250V DC
Features: This is a great circuit breaker used to protect an electrical circuit from damage caused by excess current resulting from an overload or short circuit. Fast closing to ensure reliable operation of the load and prolong the life of electrical circuit breakers. It is easy and reliable to use, which supports short circuit protection, overload protection. It can be mounted conveniently on DIN rail, DIN rail is not included. Widely used for solar panels grid system, wind and solar hybrid system and many other DC systems. Specifications: Model: C65H-DC 2P Poles: 2P Rated Current: 16A/32A/63A(Optional) Rated Voltage: DC250V Ultimate Breaking Capacity(ICU): 10kA Trip Characteristics: B, C Rated Impulse-withstand Voltage(Uimp): 5kV Current Limiting Class: 3 Mechanical Life: 20,000 times (IEC 60947-2/GB14048.2) Electrical Life: 10,000 times (IEC 60947-2/GB14048.2) Operating Temperature: -25℃~+70℃ Storage Temperature: -40℃~+85℃ Heat & Humidity Resistance: 55℃, 95%RH Size: 8.2 x 3.6 x 7cm / 3.22 x 1.41 x 2.75" Package Includes: 1 x Circuit Breaker
