SMTAV NDI Streaming 4KP60 PTZ Camera, 20x Optical + 16x Digital Zoom,high-Speed PTZ,3G-SDI+HDMI2.0+USB3.0+IP Output,NDI Support Video Conference Camera
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original

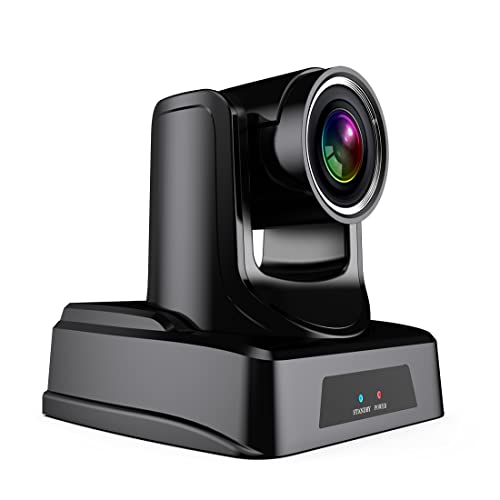

SMTAV NDI Streaming 4KP60 PTZ Camera, 20x Optical Features
-
SMTAV 4K NDI PTZ camera uses 20X Optical Zoom Lens. Ultra wide angle lens, FOV up to 60 degree to offer incredible broad views.Built in a new generation of 1/1.8 inch, 8.42M UHD 4K CMOS sensor,4K ultra-high resolution image quality can be achieved. Simultaneous 3G-SDI, HDMI, IP Video output. FULL HD 4K Resolutions with Full Frame Rates up to 4KP60fps, downward compatible with 1080P and 720P.
-
NDI | HX2 Support (NDI License Included), is next generation efficient NDI protocol. NDI provides you more reliable, ultra low latency and more flexible connection. You can save network cable runs and use less resources & low budge to make top quality video productions. 4K NDI Camera is compatiable with vMix, OBS, Zoom, Skype and other software which supports NDI HX.
-
SMTAV NDI PTZ camera easy multiple ways control. Pan, tilt and zoom the camera can be easily controled via IR remote control/web portal/web interface/RS232 / RS485/IP/NDI. PTZ Camera system can set 255 camera positions. Use presets can easily switch to the view you want. POE Support. You can power, control, set up and preview this camera over a single Ethernet Cat5/6 cable. Simplifying installation and setup for live streaming systems.
-
NDI PTZ camera is equipped with DHCP mode, you can easily set this 4K PTZ camera, convenient management & networking. 4K HDMI PTZ camera includes TCP/IP, HTTP, RTSP, RTMP/RTMPS, SRT, Onvif, DHCP, Multicast, GB/T28181 and other standard protocol. Variable speed via onvif/visca/IP/Vmix control,support IP -stream H.264, H.265, MJPEG, HD video stream over RTSP, RTMP,SRT,HTML5 etc. 20x sdi hdmi ndi ptz camera is very Easy to live stream directly to Facebook and YouTube.
-
High SNR CMOS sensor can decrease image noise effectively under low light. 2D&3D noise reduction algorithms also are applied to reduce image noise greatly. Even under ultra-low light, the image is still clean and clear, and Video S/N is ≥55dB.
About SMTAV NDI Streaming 4KP60 PTZ Camera, 20x Optical
Sensor:1/1.8",CMOS,Max Effective Pixel:842M Scanning:Progressive Lens:20x,f=6.25mm~125mm,F1.58~F3.95 Digital Zoom:16x Minimal Illumination:0.5Lux@(F1.8,AGC ON) Shutter:1/30s~1/10000s Digital Noise Reduction:2D/3D Digital Noise Reduction Video S/N:≥55dB Horizontal/Vertical Angle of View:60°~3.5°/35.7°~2.0° Horizontal Rotation Range:±170° Vertical Rotation Range:-30°~+90° Pan Speed Range:1.7°~100°/s Tilt Speed Range:1.7°~69.9°/s Backlight Compensation:Support H/V Flip:Support Image Freeze:Support PoE:Support Number of Preset:255 Preset Accuracy:0.1° Video System HDMI:4KP60fps, 4KP50fps,4KP30fps,4KP25fps,1080P60fps,1080P50fps,1080P30fps,1080I60fps1080I50fps,720P60fps,etc. 3G-SDI:1080P60fps,1080P50fps,1080P30fps,1080P25fps,1080I60fps,1080I50fps,720P60fps,etc. HD Output:1x3G-SDI,1xHDMI:Version 2.0 Network Interface:1xRJ45:10M/100M/1000M Ethernet Interface,Support PoE power supply Audio Interface:1x3.5mm Audio Interface,Line In/Mic In USB Interface:1xUSB3.0 Type C Communication Interface:1xRS485(2pin Phoenix Port),1xRS232 In(8pin Min DIN),1xRS232 Out(8pin Min DIN) Power Jack:JEITA type(DC IN 12V) USB Featured Color System:YUY2/H.264/MJPEG/H.265 Video Format:YUY2:Max 1080@60fps;H.264 AVC:Max 2160@60fps;H.264 SVC:Max 2160@60fps;MJPEG:Max 2160@60fps;H.265:Max 2160@60fps Audio on USB:Support UVC PTZ:Support Network Features Video Compression:H.265/H.264/MJEPG Video Stream and Resolution:Main Stream(2160p,1080p,720p,etc.),Sub Stream(1080p,720p,576p, 480p,etc.) Video Bit Rate:32kbps~51200kbps Audio Compression:AAC, G711 Support protocols:TCP/IP, HTTP, RTSP, RTMP/RTMPS,SRT, Onvif, DHCP, Multicast, GB/T28181,etc.
