waveshare Power Over Ethernet HAT PoE HAT with Metal Heatsink for Raspberry Pi 5, Onboard Cooling Fan, Supports 802.3af/at Network, 12V and 5V Power Outputs Easy for More Peripherals

Product ID : 54615921

---

  Share   Tweet

share more:

---

Galleon Product ID 54615921

Shipping Weight 0.18 lbs
I think this is wrong?

Model

Manufacturer Waveshare

Shipping Dimension 4.25 x 3.15 x 1.22 inches
I think this is wrong?

See more product information!

-

₱ 2,613

Price Tracker

+ ₱ 150
International Shipping

via AIR

Get it between 2025-01-02 to 2025-01-09. Additional 3 business days for provincial shipping.

---

BUY NOW!

*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown

---

• Electrical items MAY be 110 volts.
• 7 Day Return Policy
• All products are genuine and original
• Cash On Delivery/Cash Upon Pickup Available

Pay with

waveshare Power Over Ethernet HAT PoE HAT with Features

• Power Over Ethernet HAT (F) for Raspberry Pi 5, With Metal Heatsink, Onboard Cooling Fan, Supports 802.3af/at network standard

• Based on standard Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi 5. Pin headers on the top for easy access to other Raspberry Pi expansion boards

• Power Over Ethernet --- providing both network connection and power supply for your Raspberry Pi in one cable

• Onboard 5V & 12V header outputs --- 5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power). Be able to power extra devices while providing stable power to Raspberry Pi

• Onboard MP8759GD buck chip ---Incorporates original voltage buck chip, providing up to 5A under sufficient heat dissipation condition

• Online Development Resources /User Manual: bit.ly/3H5wFyZ

About Waveshare Power Over Ethernet HAT PoE HAT With

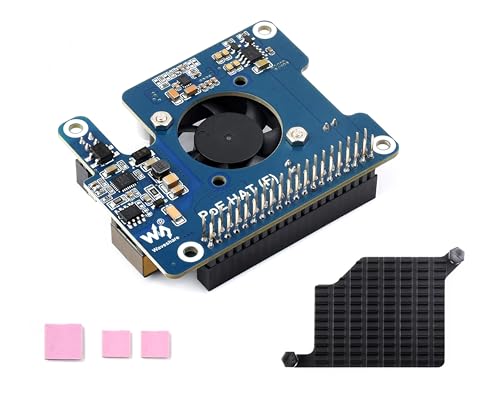

Power Over Ethernet HAT (F) with Metal Heatsink for Raspberry Pi 5, High Power, Onboard Cooling Fan, Supports 802.3af/at network standard Overview The PoE HAT (F) is a 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 5. Pin headers on the top for easy access to other Raspberry Pi expansion boards. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable. Features 1.Based on standard Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi 5. Pin headers on the top for easy access to other Raspberry Pi expansion boards 2. PoE (Power Over Ethernet) capability，IEEE 802.3af/at-compliant 3. Fully isolated switched-mode power supply (SMPS) 4. Onboard high speed active cooling fan, with metal heatsink, better heat dissipation 5. Power Over Ethernet: providing both network connection and power supply for your Raspberry Pi in one cable 6. Onboard 5V & 12V header outputs: 5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power). Be able to power extra devices while providing stable power to Raspberry Pi 7. Onboard MP8759GD buck chip: Incorporates original voltage buck chip, providing up to 5A under sufficient heat dissipation condition Specifications PoE power input: 37V ~ 57V DC in Power output : GPIO header: 5V 4.5A (MAX); 2P header: 12V 2A (MAX) Dimensions: 56.5 x 70.0mm Network standard: IEEE 802.3af/at PoE How to Install: Attach the thermal tapes first, then install metal heatsink and fix the PoE HAT Online Development Resources /User Manual: bit.ly/3H5wFyZ Package Content PoE HAT (F) x1 Metal heatsink x1 Thermal tape (3PCS) x1
