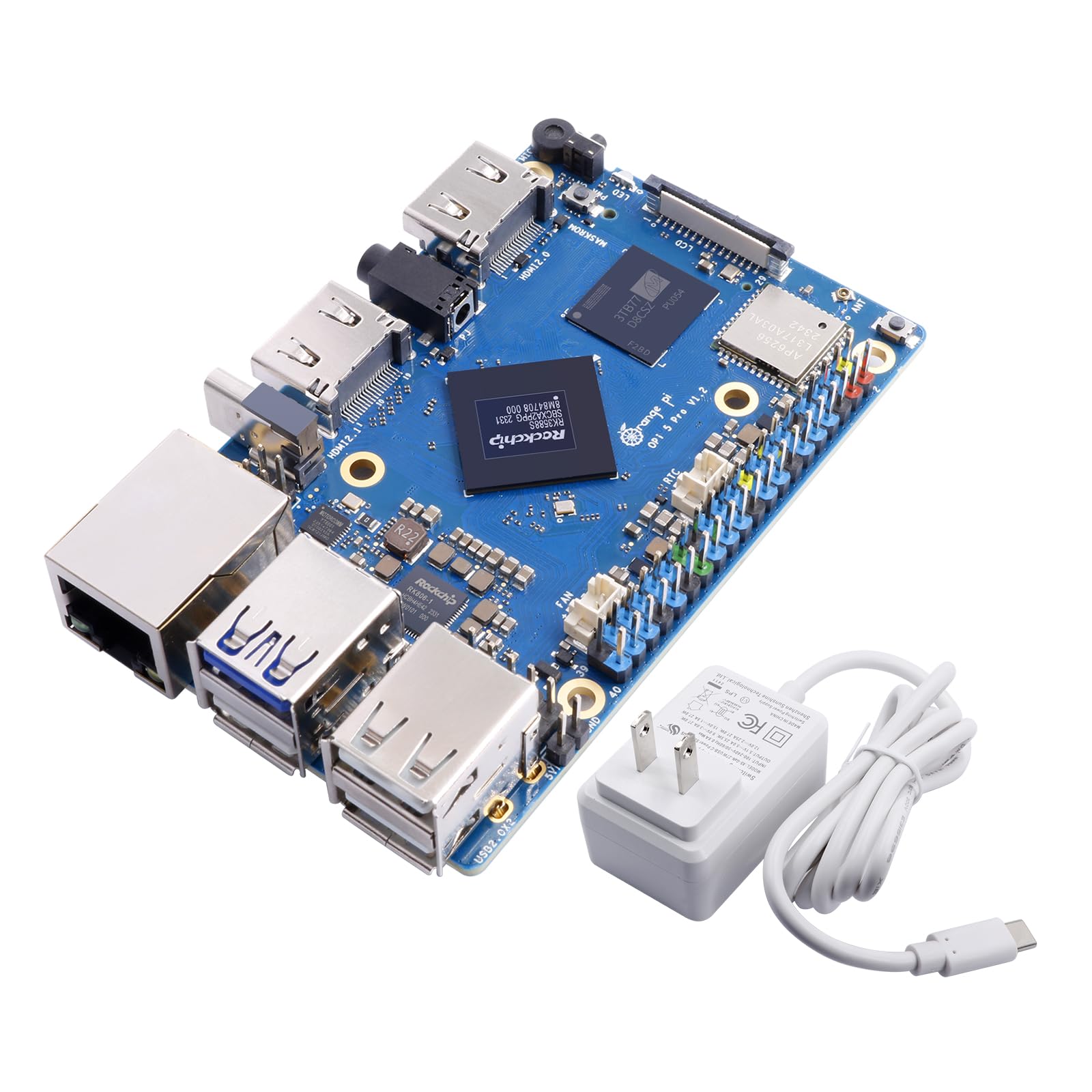

Generic Orange Pi 5 Pro 4GB LPDDR5 8 Core 64 Bit RK3588S Single Board Computer, 8K Video Decoding 2.4GHz Frequency WiFi Bluetooth Open Source Board Run Orange Pi OS, Android, Debian, Ubuntu
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
Generic Orange Pi 5 Pro 4GB LPDDR5 8 Core 64 Bit Features
-
High Performance LPDDR5 - Orange Pi 5 Pro 4GB uses Rockchip RK3588S 8-core 64-bit processor, quad-core A76+quad-core A55, with 8nm process design, up to 2.4GHz main frequency, with 4GB/8GB/16GB LPDDR5 and supports for eMMC module or SPI Flash (either one), integrated ARM Mali-G610, built-in 3D GPU, compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
-
High Computing Power - Orange Pi 5 Pro 4g embedded NPU supports INT4/INT8/INT16 mixed computing, with up to 6TOPS of computing power, which can meet the edge computing needs of most end devices.
-
8K Video Decoding - 8K video decoding for clear and realistic picture. With support for up to 8K@60Hz, the powerful video codec allows for clearer images and more detailed picture quality.
-
WiFi5+ BT5.0 with BLE Support - Orange pi 5 pro Built-in 2.4G/5G dual-band Wi-Fi5 and Bluetooth 5.0 with BLE support for stronger and more stable signals and easier and faster network transmission
-
Rich Ports - The Orange Pi 5 Pro provides abundant interfaces, including HDMI output, GPIO ports, USB2.0, USB3.1, 3.5mm headphone socket,Gigabit LAN port with PoE+ support (PoE+ HAT required), etc., with an M.2 M-key slot that supports the installation of NVMe SSD or SATA SSD.
-
Wide Range of Application Scenarios - Orange Pi 5 Pro is compact, measuring only 89mmX56mmX1.6mm, and powerful enough to be widely used in tablets, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering AIoT various industries.
About Generic Orange Pi 5 Pro 4GB LPDDR5 8 Core 64 Bit
Orange Pi 5 Pro Hardware Parameters Master Chip: Rockchip RK3588S (8nm LP process) CPU: 8-core 64-bit processor big.LITTLE Architecture: 4-core Cortex-A76 and 4-core Cortex-A55, big core cluster is 2.4GHz, and little core cluster is 1.8GHz frequency. GPU: Arm Mali-G610 Built-in 3D GPU Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2 NPU: Embedded NPU supports INT4/INT8/INT16 mixed operation, with up to 6TOPS computing power PMU: RK806-1 RAM: LPDDR5 496PIN：4GB/8GB/16GB (optional) Memory: eMMC socket: supports eMMC module (optional) SPI Flash (default empty) Note:either eMMC socket or on-board SPI Flash is preferred. MicroSD (TF) slot M.2 M-KEY slot: NVMe SSD or SATA SSD USB: USB3.1 Gen1 * 1;USB2.0 *1； USB HUB:USB2.0 *2（TYPE A）+UAB2.0*2 row of pins Video Output: HDMI2.1 up to 8K @60Hz HDMI2.0, up to 4K @60Hz DP1.4 ALT 2Lane to HDMI2.0: LT8711UXD_U2 MIPI 4 Lane, up to 4K @60Hz Camera:2*MIPI 4 Lane Audio: CODEC: ES8388 3.5mm headphone jack audio input/output Input: onboard MIC HDMI 2.1 eARC Ethernet:10/100/1000Mbps Ethernet with PoE+ support (PoE+ HAT required) Wi-Fi+BT Module:Onboard Wi-Fi5+BT 5.0/BLE module: AP6256 PCIe M.2 M-KEY Socket M.2 M-Key slot supports access to NVMe SSD or SATA SSD Expansion Port: Dual-row pin: 2.54mm 40Pin Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces Button:1* MaskROM, 1*RESET, 1 * POWER Power Source:Supports Type-C power supply, 5V @ 5A LED: RGB LED three-color indicator Status indicator: green FAN: 5V 2PIN 1.25mm socket RTC: 3V 2PIN 1.25mm socket Appearance Specification Introduction Dimension: 89mm*56mm*1.6mm Weight: 62g
