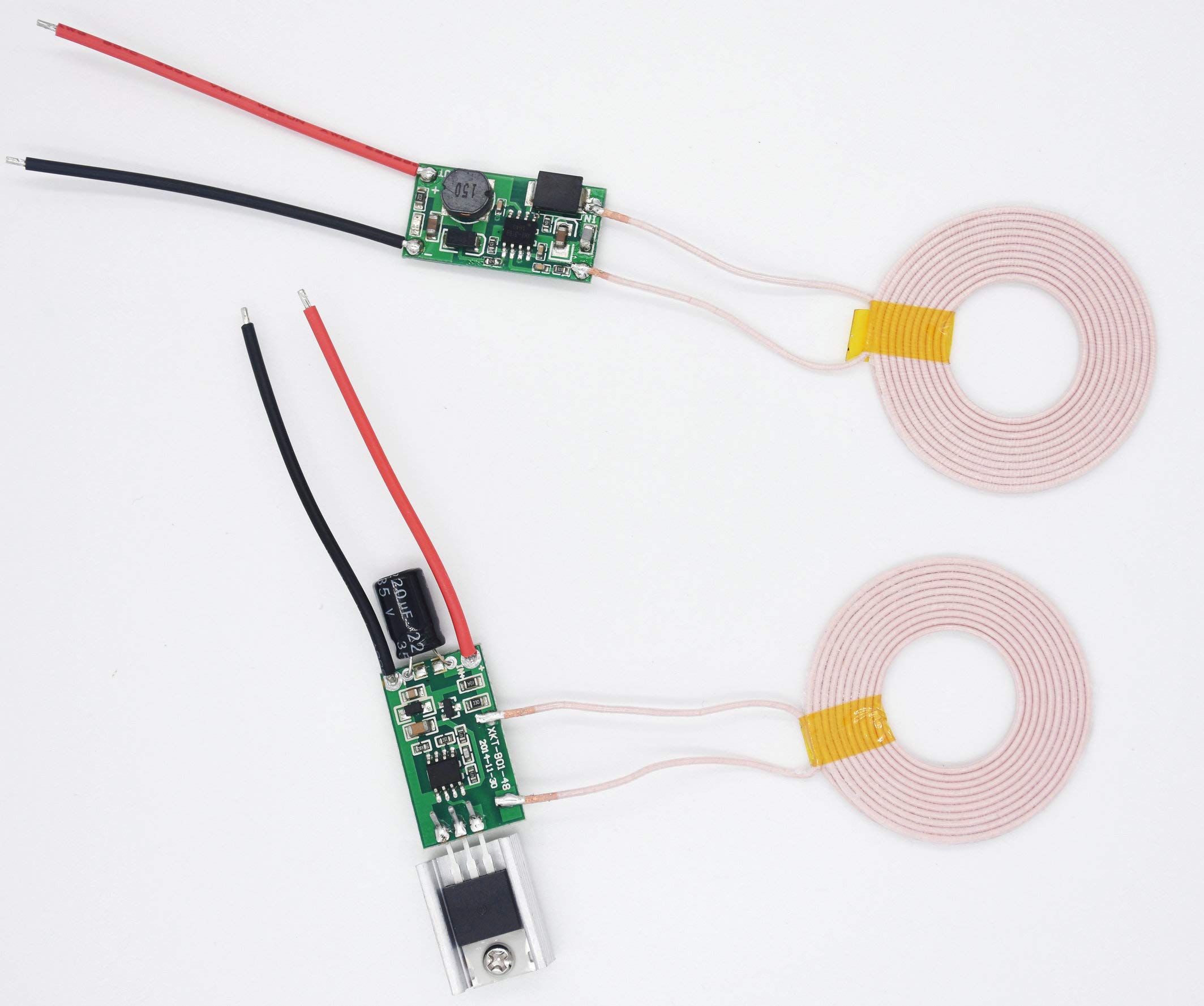

Taidacent 12V Power Supply 5mm 12V1A Output Wireless Charging Module Wireless Power Supply Module (12V1A 5mm)
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
Taidacent 12V Power Supply 5mm 12V1A Output Features
-
Input voltage: 12V.
-
Receive output voltage and current: receive output 12V/1A when 5mm.
-
Transmitting coil size: outer diameter 43mm, thickness 2.3mm; Transmitter module size: 16mm*24mm.
-
Receiving coil size: outer diameter 43mm, thickness 2mm; Receiver module size: 10mm*25mm*3mm.
-
Note that the transceiver modules must not be used when the distance is below 4mm! Otherwise the receiving module will be damaged by the overvoltage!
About Taidacent 12V Power Supply 5mm 12V1A Output
Main parameters of the module: Input voltage: 12V Receive output voltage and current: receive output 12V/1A when 5mm Transmitting coil size: outer diameter 43mm, thickness 2.3mm Transmitter module size: 16mm*24mm Receiver module size: 10mm*25mm*3mm Receiving coil size: outer diameter 43mm, thickness 2mm Receiving distance: about 5mm Working distance and current: Output 12V1A at 5mm 12V750mA at 6mm 12V500mA at 8mm Output 12V350mA at 10mm 12V200mA at 12mm Note that the transceiver modules must not be used when the distance is below 4mm! Otherwise the receiving module will be damaged by the overvoltage!
