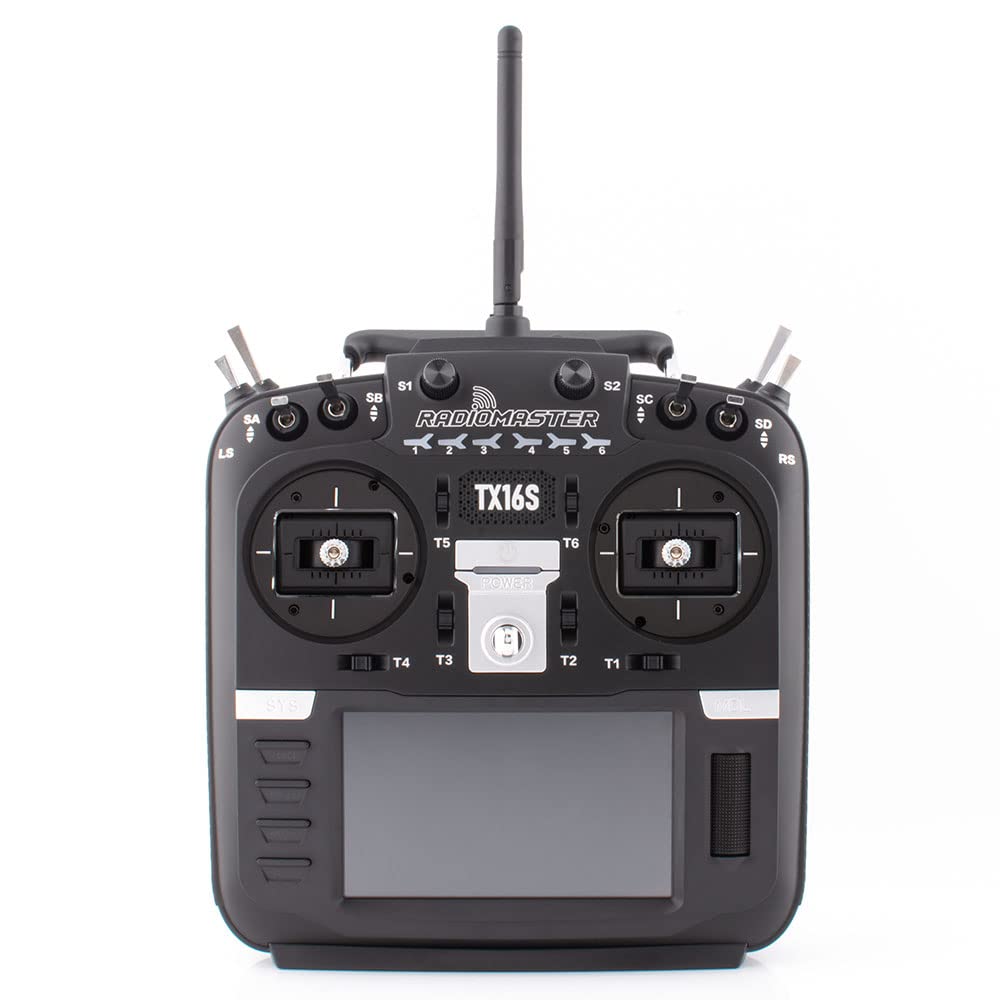

RadioMaster TX16S Mark II 2.4GHz 16 Channel EdgeTX Radio Transmitter Mode 2 (ELRS w/Hall Gimbals)

Product ID : 48796370
4.4 out of 5 stars


Galleon Product ID 48796370
UPC / ISBN 810020965346
Shipping Weight 2.62 lbs
I think this is wrong?
Model TX16S
Manufacturer RotorLogic
Shipping Dimension 9.65 x 8.46 x 6.18 inches
I think this is wrong?
-
19,640

*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown

Pay with

RadioMaster TX16S Mark II 2.4GHz 16 Channel EdgeTX Features

  • TX16S Mark II features improved internal circuitry and optimized power supply, a newly designed removable battery cover, raised and flat grips for better ergonomics, and improved S1/S2 knobs with center detents

  • 4.3” IPS Color Display- TX16s MKII features a bright and clear 4.3-inch IPS color display for easy and convenient model setup and operation with adjustable brightness to suit all conditions.

  • New 3.5mm Audio jack- Now comes with 3.5mm audio headphone jack and build-in dual speakers to provide great audio options.

  • External Module Bay- TX16s natively supports Team Black Sheep MicroTX modules in CRSFmode with LUA scripts. Best of all the TX16s Internal 4-in-1 Multi-protocol module allows you to keep the MicroTX installed and switch between internal RF and Crossfire via software, no more module swapping.

  • Support EdgeTX and OpenTX- EdgeTX is installed by default (Touch screen enabled)


About RadioMaster TX16S Mark II 2.4GHz 16 Channel EdgeTX

RadioMaster TX16S Mark II Radio Transmitter Latest TX16S Mark II Radio Transmitter from RadioMaster. Features optional Hall gimbals V4.0 OR AG01 gimbals, an Multi-Protocol 4-in-1 OR ELRS internal module, and 2.4GHz radio frequency with 16 channels. MKII version includes a newly designed removable battery cover, raised and flat grips for better ergonomics, and improved S1/S2 knobs with center detents. TX16S Mark II now comes with 3.5mm audio headphone jack and build-in dual speakers to provide great audio options. Specifications: Transmission frequency: 2.400GHz-2.480GHz Transmitter module: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401) OR Internal ELRS (SX1280) Transmitting power: Internal 4-in-1 multi-protocol module : Max 100mw (protocol dependent); Internal ELRS : Max 250mw (transmitting power is adjustable) Antenna gain: 2db (transmit power adjustable) Working current: 400mA Working voltage: 6.6-8.4v DC Remote control distance:> 2km @ 22dbm Radio firmware: EdgeTX Module Firmware: Multiprotocol- Module (4IN1) -OR- ExpressLRS (ELRS) Channels: Up to 16 channels (depending on the receiver) Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272 Module Bay: JR compatible module bay Upgrade method: Supports USB-C online / SD card offline upgrade In the box: 1 x TX16S Mark II Radio 1 x Battery tray *18650 Cells are NOT included 1 x USB-C Cable 1 x Pair of flat grips 1 x Pair of raised grips 1 x User manual and accessories
