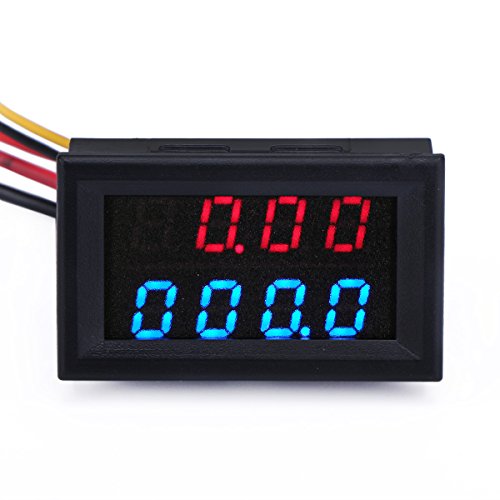

DROK®0.28''High Accuracy DC 0-33.00V/0-999.9mA-3.000A 12V Voltmeter Ammeter Voltage Current Tester Monitor Panel Gauge with Red&Blue Dual LED Digital Display for Vehicle Automotive Solar Battery

Product ID : 3637248

Product Rating

4.5 out of 5 stars

---

  Share   Tweet

share more:

---

Galleon Product ID 3637248

UPC / ISBN 519397043410

Shipping Weight 0.09 lbs
I think this is wrong?

Model 300006

Manufacturer DROK

Shipping Dimension 3.78 x 2.48 x 1.46 inches
I think this is wrong?

See more product information!

-

Save 45%

Before ₱ 2,078

₱ 1,137

Price Tracker

+ ₱ 150
International Shipping

via AIR

Get it between 2024-12-20 to 2024-12-27. Additional 3 business days for provincial shipping.

---

BUY NOW!

*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown

---

• Electrical items MAY be 110 volts.
• 7 Day Return Policy
• All products are genuine and original
• Cash On Delivery/Cash Upon Pickup Available

Pay with

DROK®0.28''High Accuracy DC Features

• Measuring Voltage: 0.00-33.00V; Measuring Current: DC 0-999.9mA-3.000A(change the resolution automatically)

• This Volt/Amp meter is 0.28'' 4 digit high accuracy dual display, the display is bright and sharp.

• When measuring current, the measured line provides power supply. Don't need a isolated power supply.

• High accuracy voltage measurement with measuring line voltage drop compensation.

• A good tool to monitor charging LI-ion batteries and electronics bench, etc.

About DROK®0.28''High Accuracy DC

Technical Parameters: Display color: Red+Blue Display mode: Dual 0.28" LED digital 4 bit tube Refresh rate: About 200 ms/time Dimensions: 48 x 29 x 21 mm (L*W* H) Cutting size: 45 x 26 mm (L*W) Supply voltage: DC 3.5-28V Lead wire length: 14 cm (5-wires) Measurement range: DC 0-999.9mA-3.000A(current); 0.00-33.00V(voltage) Operation temperature: -10 degrees~65 degrees Measurement accuracy: ± (0.3% + 2 digits) Net weight : 22g Display Description: Voltage measurement range: 0.00-33.00V; the minimum resolution is 10mV. Current measurement range: 0-999.9mA-3.000A. when the measuring current is below 1A, it display ***.*mA, the resolution is 0.1mA; when the measuring current is higher than 1A, it display *.***A, the resolution is 1mA. Wiring Instruction: RED(VCC): Power input+, 3.5-28V (NOTE: If the measuring signal is lower than 28V and have abundant power supply, it can be used as power supply for the meter. black wire and yellow wire are contacted together to use) Black(GND): Power input- , Measurement signal- (3.5-28V) Yellow(VIN): Measurement signal+ (0-33.00V) RED(I+): Current input+ (must be connected in series between Power Supply Negative and Load Negative) Black(I-): Current input- (must connected in series between Power Supply Negative and Load Negative) Package Includes: 1x 0-33.00V/0-3.000A Volt Amp Meter
