Upgraded NanoVNA-F V2 Vector Network Analyzer 50kHz-3000MHz HF VHF UHF VNA Antenna Analyzer 4.3 inch with 5000mA-h,Measuring S-Parameter Voltage SWR, Phase, delay, Smith Chart
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
Upgraded NanoVNA-F V2 Vector Network Analyzer Features
-
【4.3 inch Large Touch screen and powerful function】Handheld Vector Network Analyzer using 4.3-inch IPS TFT LCD screen, with a larger view angle and can be seen clearly in strong outdoor light.which can measure S-parameter, voltage standing wave ratio SWR, phase map, group delay, Smith chart and so on.
-
【Higher Capacity Battery,and Longer Standby time】 Upgraded the large capacity 5000mA-h 3.7V battery, longer standby time, and extended USB interface. Typically, it can be used as a mobile power source to charge Android or Apple phones when not in use. The IC is charged by high current 2A, and the charging time is shorter.
-
【Upgraded Aluminium Housing 】 Standard aluminium shell to protect SMA head and reduce the interference of external electromagnetic wave to instrument.
-
【Measurement Range】 The NanoVNA-F measurement range is 50k-3GHz. You can go to the official website to update and expand the frequency to 10Khz-1.5Ghz.The harmonic expansion of the output signal of the clock chip SI5351 is used to measure the frequency to 1000MHz. At 600M-1GHz, the dynamic range of S11 is 40dB (the standing wave ratio is less than 1.02).
-
【Compact and Powerful】: Upgrade the user program by virtual U disk.Switch to a power switch with a greater sense of operation and a better sense of operation.Support Chinese and English menu switching.
About Upgraded NanoVNA-F V2 Vector Network Analyzer

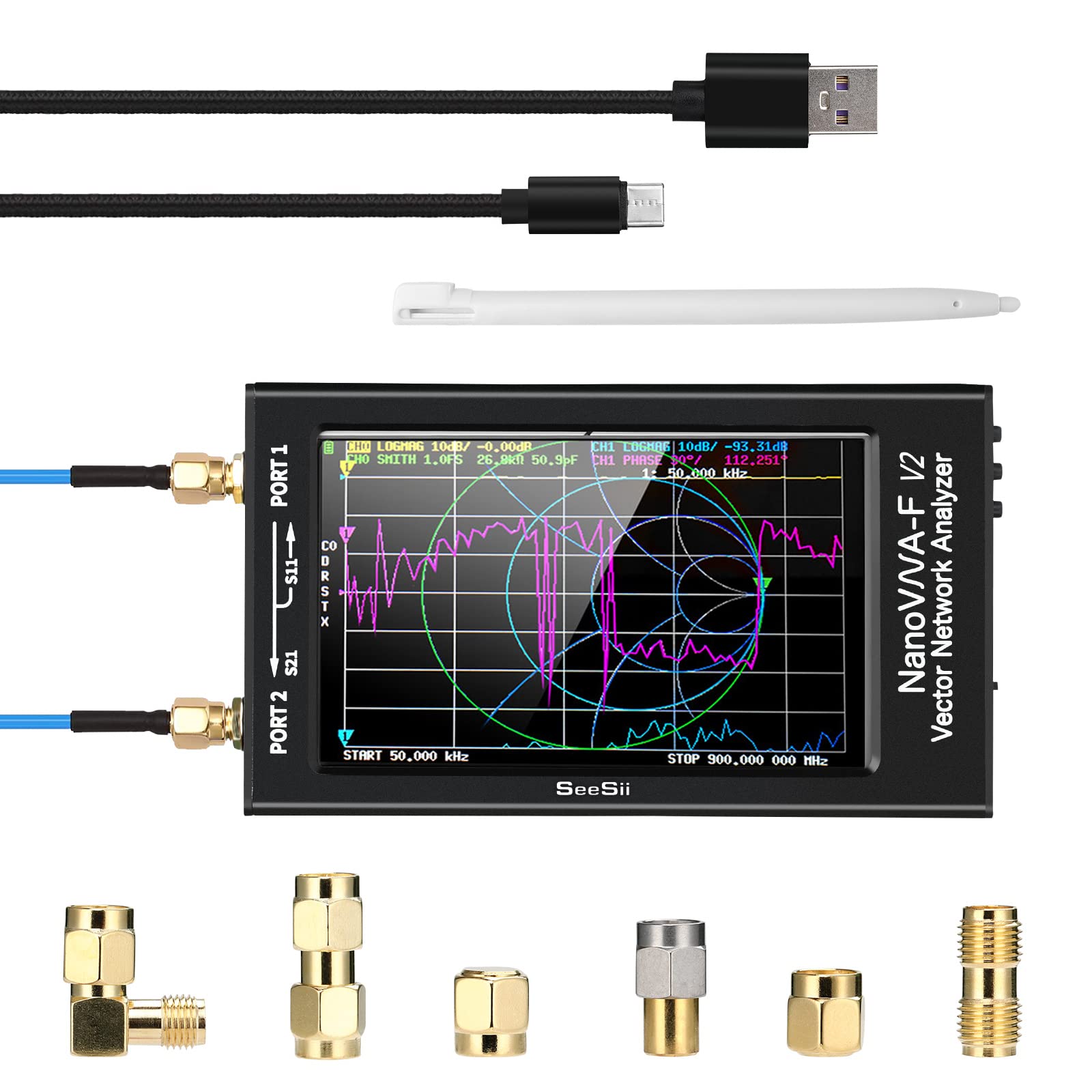

Specification: - Size: 14 x 7.5 x 2cm (L*W*H) - Measurement Frequency: 50KHz ~ 1000MHz (50KHz~1GHz) - RF Output: -13dbm (maximum -9dbm) - Frequency Accuracy: < 0.5ppm - Port SWR: < 1.1 - Display: 4.3-Inch IPS TFT (800x480) - USB Interface: USB Type-C communications Mode: CDC (Serial) - Power Consumption: USB 5V 200mA, built-in 5000mAh/3.7V battery, theoretical battery life 18 hours, maximum charging current 2A - Max. Charging Current: 2A - Output Capacity: 5V/1A; Support for Android, Apple mobile phone - Number of Calibration Points: 101 - Number of Scanning Points: 101 - Display Tracking: 4; Marking: 4; Setting Saving: 5 - Scanning Time: about 1.9s/1 times (50kHz ~ 1000MHz full frequency band) - Application: Measure S parameters, voltage standing wave ratio SWR, phase map, group delay, Smith chart, etc. Package Included: - 1X Vector Network Analyzer - 2X 20cm SMA-JJ RG316 Cables - 1X 50Ω Standard Load - 1X Open-Circuit Calibration Piece - 1X Short-Circuit Calibration Piece - 1X SMA-JJ Double-Head Needle - 1X SMA L-Shape Connector - 1X Type-C Data Cable - 1X NanoVNA-F Quick Start Guide
