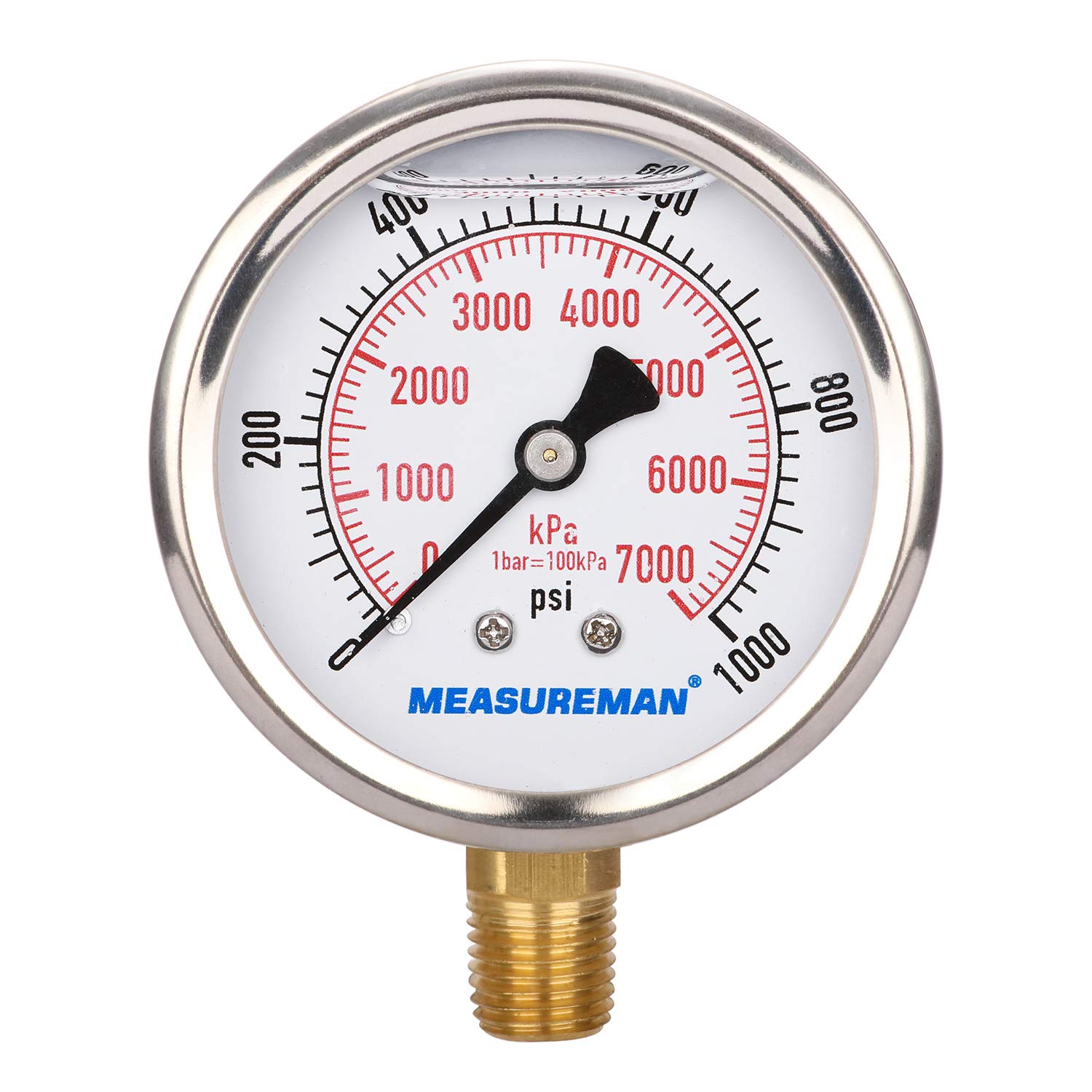

MEASUREMAN 2-1/2inch Dial Size, Liquid Filled Pressure Gauge, 0-1000psi/7000kpa, 304 Stainless Steel Case, 1/4inchNPT Lower Mount
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
MEASUREMAN 2-1/2inch Dial Size, Liquid Filled Features
-
For pressure measuring of gas, liquid which is not corrosive to brass, also where vibration and pulsation is a concern.
-
2-1/2" dial size, 1/4"NPT lower mount
-
Pressure range: 0-1000psi/7000kpa dual scale
-
Stainless steel case, brass wetted parts, glycerin filled
-
Accuracy: +/-3-2-3%
About MEASUREMAN 2-1/2inch Dial Size, Liquid Filled
Description "This liquid filled pressure gauge is designed for media which is not corrosive to brass, also where vibration and pulsation is a concern. Dial size: 2-1/2"" Process connection: 1/4""NPT lower mount Case: 304 stainless steel case and crimped ring Window: Polycarbonate Dial plate: aluminum, with pointer stop Pointer: Aluminum, black, DIN style Bourdon tube: Copper alloy Movement: Brass Connection: Brass, one piece design Oil cap: rubber, gray color Filling: Glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge. IP class: IP67 Accuracy: +/-3-2-3% Range: 0-1000psi/7000kpa dual scale, psi outside, kpa inside Working temperature:-4 to 140 deg F/-20 to 60 deg C Ambient temperature:140 deg F/60 deg C maximum" Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
