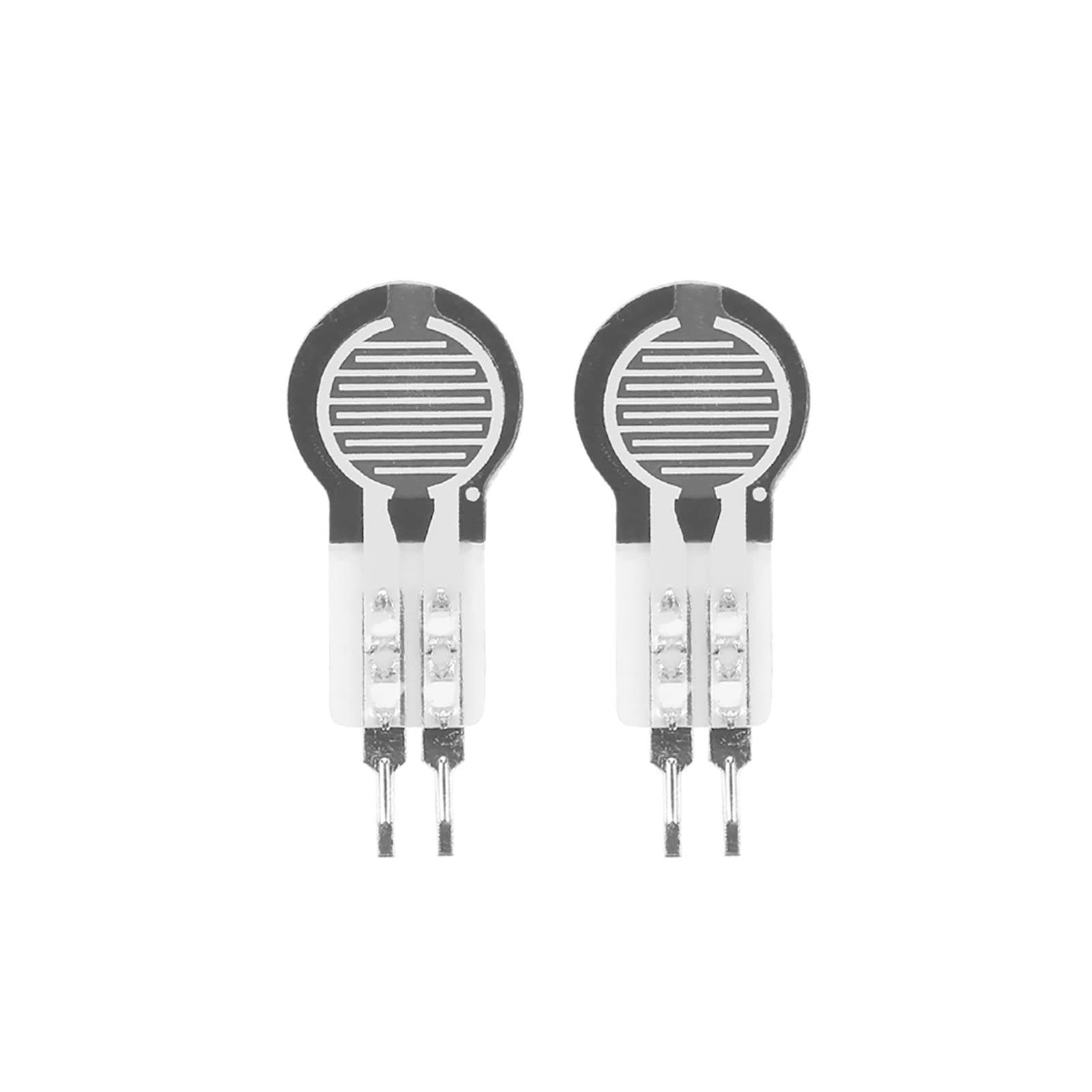

Haosie 2PCS Force Sensitive Resistor, 20g~2kg Pressure Pad Sensor, Thin Film Pressure Sensor, Resistance-Type Touch Sensor for Switch Smart Electronics Robot
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
Haosie 2PCS Force Sensitive Resistor, 20g~2kg Features
-
【Variable Resistance】Pressure sensor is a flexible film sensor, the top is a flexible film and the upper pressure-sensitive layer, the bottom is a flexible film, the upper is a conductive circuit, and the output resistance of the port changes with the pressure.
-
【Fast Response】Support static/dynamic pressure sensing, fast response, single sensitive area pressure sensor is equivalent to a two-port variable resistance, its resistance is controlled by pressure, for a certain threshold switch, the threshold is determined by pressure and equipment parameter settings.
-
【Excellent Material】RP-C resistive sensor is made of high-quality material and adopts ultra-thin design, which can be lightly installed in various equipment and systems with good durability and stability.
-
【Wide Application】Used in bed monitoring, sleep monitoring, smart shoes, smart switches, counters and medical equipment, suitable for industrial automation, medical equipment, automotive electronics, consumer electronics and other fields.
-
【Satisfactory Service】We provide free return and exchange service, we care about the feelings of all customers, if you have any details or questions about this item, you can contact us at any time, we will give you a satisfactory answer.
About Haosie 2PCS Force Sensitive Resistor, 20g~2kg
Specification: Model: DF9-16 Thickness: 0.4 mm Trigger force: 20 g, triggered when resistance is less than 200 kΩ by default Pressure sensing range: 20 g ~ 2 kg Pressure action mode: Static or dynamic (frequency within 10 Hz) Non-trigger resistance: More than 10 MΩ Activation time: less than 0.01 S Operating temperature: -40 ℃ ~ +85 ℃ Lag: +10%, (RF+ - RF-)/FR+, 1000g force Response time:
