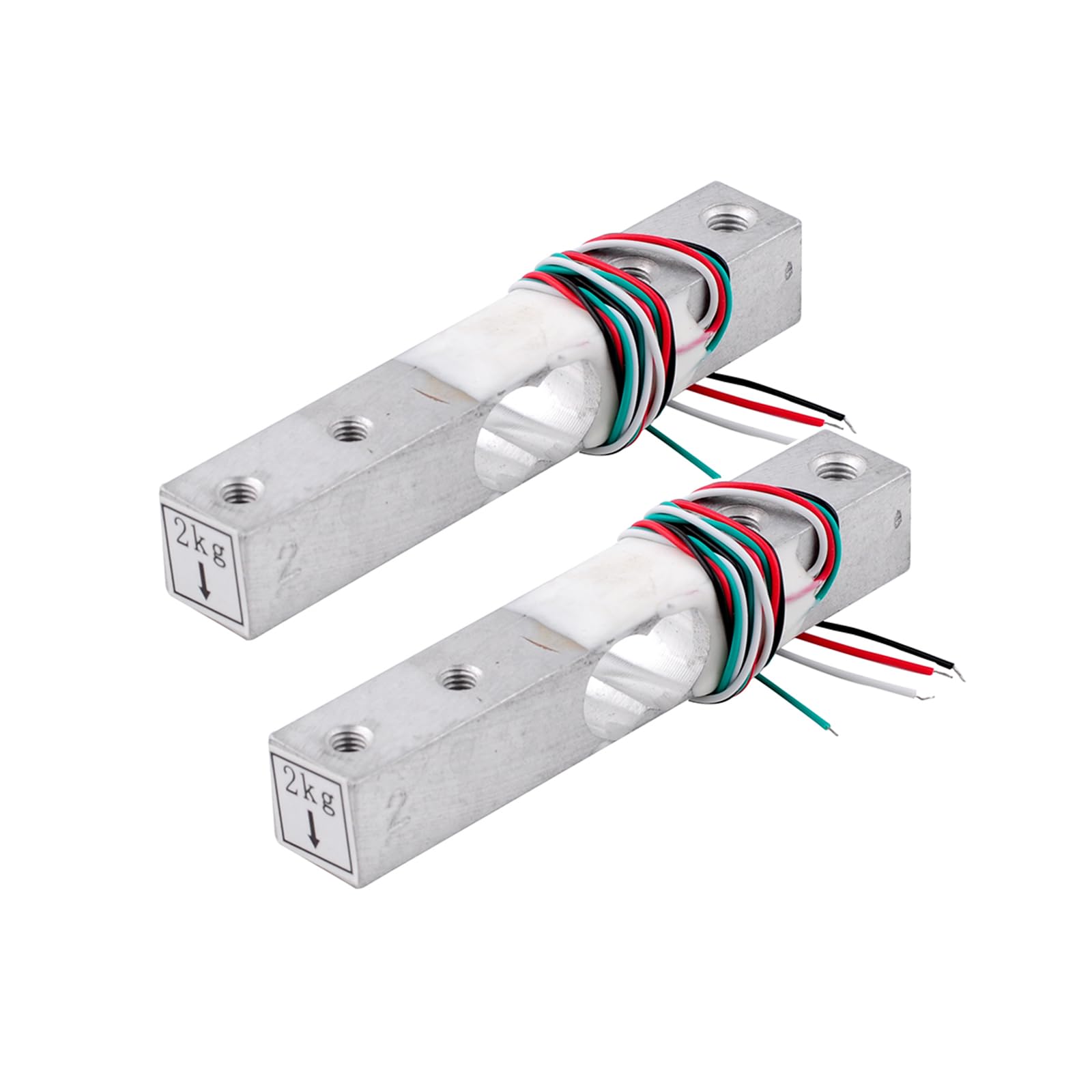

Geekstory Digital Load Cell Weight Sensor 2kg High Precision Miniature Load Cells YZC-133 for Arduino DIY Electronic Portable Kitchen Scale Sensors(Pack of 2)

Product ID : 51259176

Available options (color, size, package, etc). Prices may vary.

---

  Share   Tweet

share more:

---

Galleon Product ID 51259176

Shipping Weight 0.13 lbs
I think this is wrong?

Model

Manufacturer Geekstory

Shipping Dimension 4.29 x 4.06 x 0.43 inches
I think this is wrong?

See more product information!

-

Save 9%

Before ₱ 1,056

₱ 966

Price Tracker

+ ₱ 150
International Shipping

via AIR

Get it between 2025-01-24 to 2025-01-31. Additional 3 business days for provincial shipping.

---

BUY NOW!

*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown

---

• Electrical items MAY be 110 volts.
• 7 Day Return Policy
• All products are genuine and original
• Cash On Delivery/Cash Upon Pickup Available

Pay with

Geekstory Digital Load Cell Weight Sensor 2kg High Features

• Made of high quality aluminium alloy, parallel beam structure, suitable for electronic kitchen scales, small appliances force measurement, pet feeders and other intelligent weighing equipment.

• 5-10V drive voltage applied, the force is directly output as a voltage change signal.

• You need to connect load cell wtih HX711 module like this, Red to E+, Black to E-, Green to A+, White to A-

• You will get 2pcs 2kg load cell weight sensor. Dimensions: 12.7mm * 12.7mm * 80mm

• If you have any questions about this product, or need additional weight sensors and HX711 modules, please visit "Geekstory".

About Geekstory Digital Load Cell Weight Sensor 2kg High

Description Four leads, easy to use,5-10V drive voltage applied, the force is directly output as a voltage change signal. Dimensions: 12.7mm * 12.7mm * 80mm Sensor through the screw hole at one end fixed and the other end to keep floating state, applying gravity following the direction indicated by label. Particular attention must not directly push the white plastic cover part, so as not to damage the sensor. Application: Kitchen scale Module: YZC-133 Rated Output: 1.0±0.15mV/V Nolinearity: 0.0005 Repeatability: 0.0003 Hysteresis: 0.0003 Creep(5Min): 0.001 Temperature Effect On Sensitivity: 0.003%RO/°C Temperature Effect On Zero: 0.02%RO/°C Zero Balance: ±0.1%RO Input Resistance: 1066±20Ω Output Resistance: 1000±20Ω Insulation Resistance: 2000MΩ(50V) Recommended Excitation Voltage: 5V Compensated Temperature Voltage: -10~+50°C Operating Temperature Range: -20~+65°C Safe Overload: 120%RO Ultimate Overload: 150%RO Load Cell Material: Aluminium Connecting Cable: ?0.8X180mm Connection: Red to E+ Black to E- Green to A+ White to A- Package included: 2 X 2kg Weight Sensor
