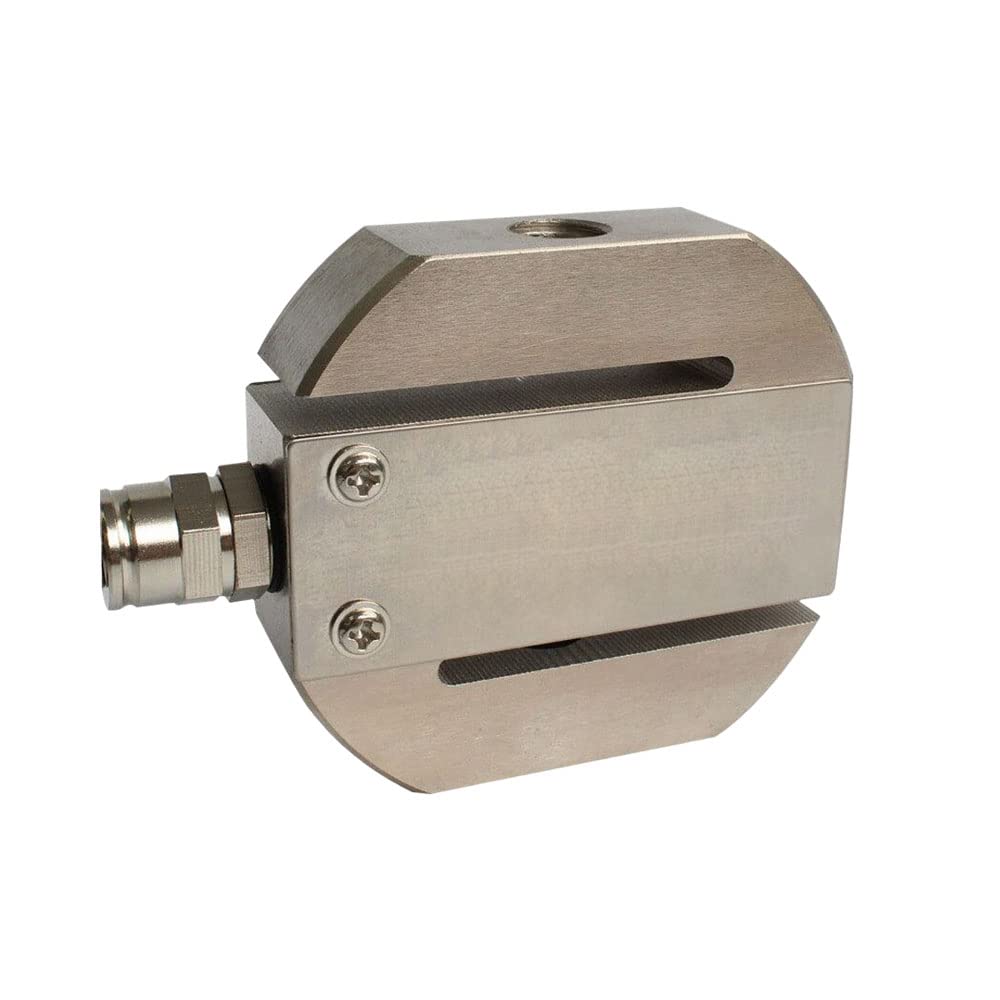

ATO Tension and Pressure Load Cell S Type Strain Gauge Load Cell Sensor High Accuracy Protection Class IP67 (20kg)
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
ATO Tension and Pressure Load Cell S Type Strain Features
-
【Material】 Alloy steel
-
【Type】 S-shaped , micro load cell can bear both tension and pressure
-
【Feature】 With overload protection device, good output symmetry, high accuracy, compact structure and complete specifications
-
【Suitable for】 Batching scale, electronic-mechanical scale, crane scales, automatic weighing instrument and other force value measurement and control
-
【Service guarantee】 CUSTOMER FIRST, if you are not sure about the size or have any issue about the product, please feel free to contact us via email. We will provide help for you
About ATO Tension And Pressure Load Cell S Type Strain
Advantage of S type load cell S type load cell is the most common sensor, has the function of measuring both tension and compression, small size, high accuracy, good measuring range and convenient installation. It is appropriate for crane scale, batching scale, electronic-mechanical scale, and other electronic force measuring and weighing systems. Tension and compression load cells have capacity range from 5kg, 20kg, 30kg, 100kg, 500kg, 1 ton to 7 ton. Strain gauge load cell capacity can be customized according to customer requirements. After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA. Specification: Model ATO-LCS-DYLY-102 Shipping weight 1~2kg Capacity range * 1~500kg, 1~7 ton Accuracy 0.03%F.S (linearity + hysteresis + repeatability) Sensitivity 2.0±0.05mV/V Creep ±0.03%F.S/30min Zero output ±1%F.S Temperature effect on zero ±0.03%F.S/10℃ Temperature effect on output ±0.03%F.S/10℃ Operating temperature -20℃~+65℃ (-4℉~+149℉) Input impedance 350±20Ω Output impedance 350±5Ω Insulation resistance ≥5000MΩ Safety overload 150%F.S Bridge voltage (excitation voltage) DC 5-15V, suggest DC 10V Material Alloy steel Protection class IP67 Cable length 2m (＜5ton), 5m (≥5ton) Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White
