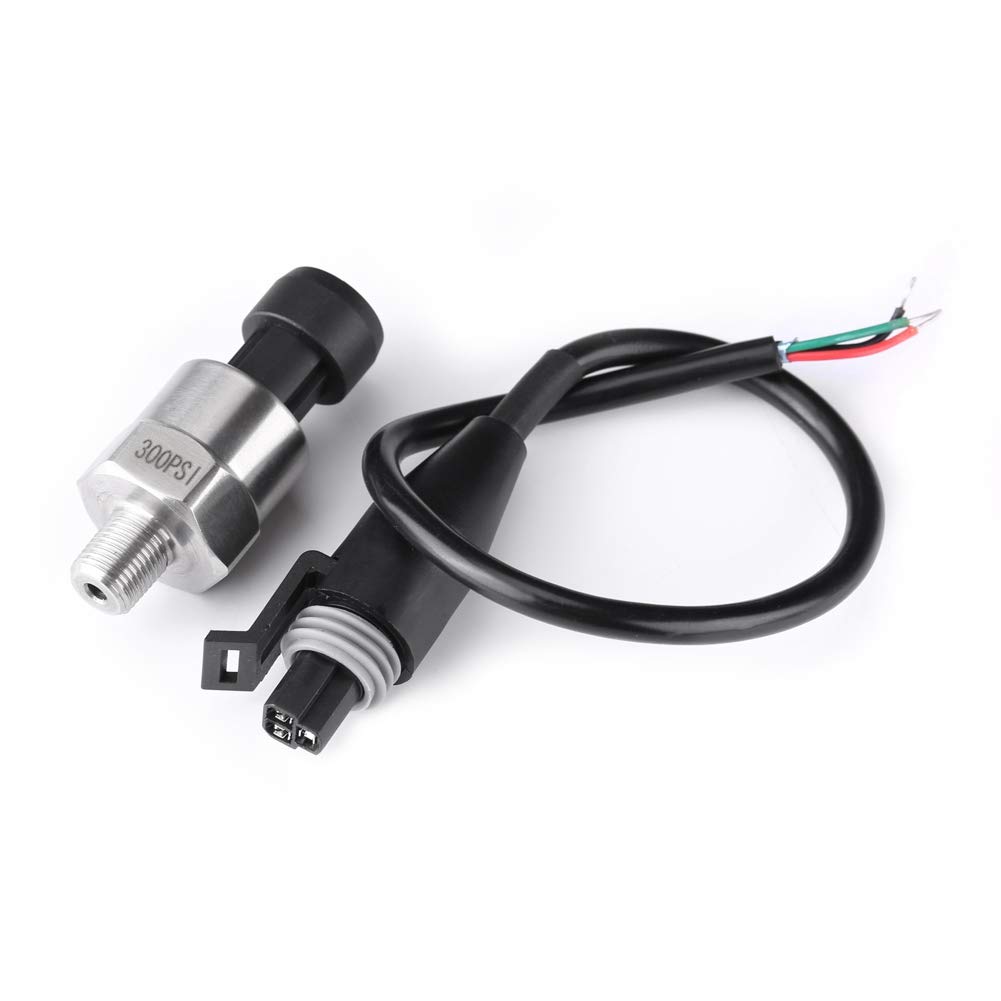

300 PSI Pressure Transducer Sender Sensor with Connector 1/8" NPT Thread Stainless Steel Pressure Transducer for Oil Fuel Air Water (300PSI)
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
300 PSI Pressure Transducer Sender Sensor with Features
-
Professional Manufacturing---- This pressure transducer sender sensor is more advanced than the traditional mechanical pressure transducer
-
Small Output Error---- ±2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range
-
Safe Use---- Pressure Transducer Sender Sensor has complete voltage protection function
-
Easy to Install---- 0 to 300 psi Pressure Transducer has the advantages of light weight, small size and convenient installation and operation
-
Wide Application---- 300 psi Pressure Sensor is suitable for oil, fuel, , gas, water, air pressure, can be used in oil tank, gas tank, tank etc.
-
Wide Application---- 300 psi Pressure Sensor is suitable for oil, fuel, , gas, water, air pressure, can be used in oil tank, gas tank, tank etc.
About 300 PSI Pressure Transducer Sender Sensor With
Features: It's an advance pressure transducer than traditional mechanical pressure transducer. ±2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range. Light weight and small size, convenient to install and operate. It has complete surge voltage protection function. Works for oil, fuel, gas, water, air pressure, can be used in oil tank, gas tank, diesel tank etc. Specifications: Material: Stainless steel Voltage: DC 5V Pressure: 30 psi, 100 psi, 150 psi, 200 psi, 300 psi, 500 psi (Optional) Thread Type: 1/8" NPT 300 psi Input: 0-300 psi Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 150 psi outputs 2.5V, 300 psi outputs 4.5V Accuracy: +/-0.5%FS Thread: 1/8" NPT Wiring: Red: +5V; Black: ground; Green: signal output Overload Capacity: 2-4 times of rated pressure Working Temperature: -40~+120℃ Compensation Temperature: 0℃~+80℃ Protection Class: IP67 Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel Load Resistance: ≤ (supply power-6.5V/0.02A)Ω Long-term stability: Less than 0.1%FS/year Temperature Effect on Zero: Typical: 0.02%FS/℃; Maximum: 0.05%FS/℃ Temperature Effect on Sensitivity: Typical:0.02%FS/℃; Maximum:0.05%FS/℃ Shock Resistance: 1000g Anti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g) Response Time: ≤1ms Insulation Resistance: >100mΩ 500VDC Explosion-proof Class: ExiaTTCT6 Electromagnetism Compatibility: EN50051-1. Package Includes: 1 x Pressure Transducer
