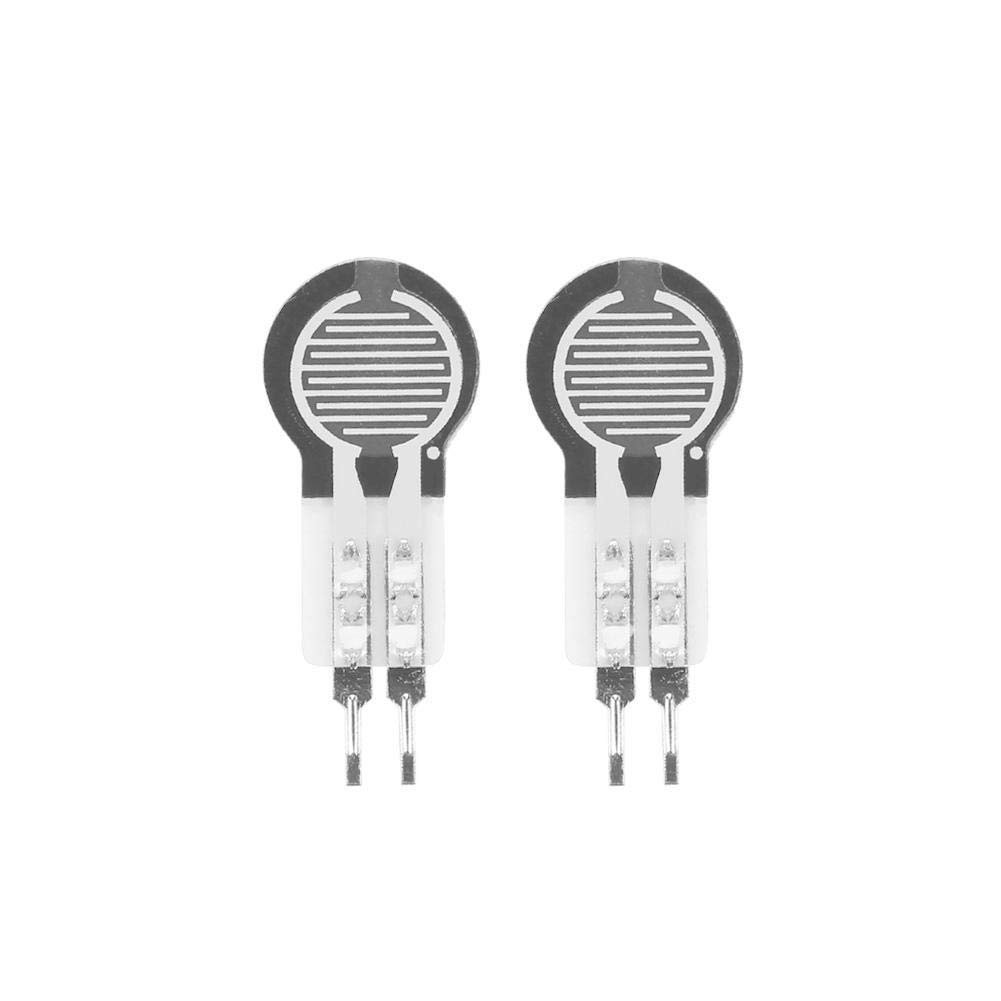

2Pcs Thin Film Pressure Sensor 20g-2Kg DF9-16 High Precise Force Sensitive Resistor Force Sensor Pressure Sensor Type Thin Film Pressure Sensor Force Sensing Resistor
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
2Pcs Thin Film Pressure Sensor 20g-2Kg DF9-16 High Features
-
Flexible/Bend Sensor: The RP-C type pressure sensor is a flexible thin film sensor whose decreases along with the pressure increases
-
Variable Resistance: Single sensitive area pressure sensor is equivalent to a dual port variable whose is controlled by pressure, and to a switch of a certain threshold, the threshold is determined by pressure and equipment parameters setting
-
Quick Response: The pressure sensor supports static/dynamic pressure sensing, and has fast response speed
-
Premium Quality Material: Thin film pressure sensor is made of high quality material, the sensor is and has long service life
-
Widely Applications: Force sensitive resistor is widely used for bed monitoring, sleep monitoring, smart shoes, smart switches, counters and medical equipment
About 2Pcs Thin Film Pressure Sensor 20g-2Kg DF9-16 High
The RP-C flexible thin film pressure sensor is composed of polyester film of excellent comprehensive mechanical properties, high conductive material and nano-scale pressure sensitive material; the top is a flexible film and pressure sensitive layer above, the bottom is a flexible film and conductive circuit above.Both are glued by double-sided adhesive and the isolation sensitive zone.When there is pressure on sensitive area, the disconnected circuit on the bottom will be connected by top pressure-sensitive layer, and the output resistance of the port changes along with pressure. Specification: Model: RP-C10-ST Thickness: 0.4 mm Trigger force: 20 g, triggered when resistance is less than 200 kΩ by default Pressure sensing range: 20 g ~ 2 kg Pressure action mode: Static or dynamic (frequency within 10 Hz) Non-trigger resistance: More than 10 MΩ Activation time: less than 0.01 S Operating temperature: -40 ℃ ~ +85 ℃ Lag: +10%, (RF+ - RF-)/FR+, 1000g force Response time: < 10 ms Drifting:
