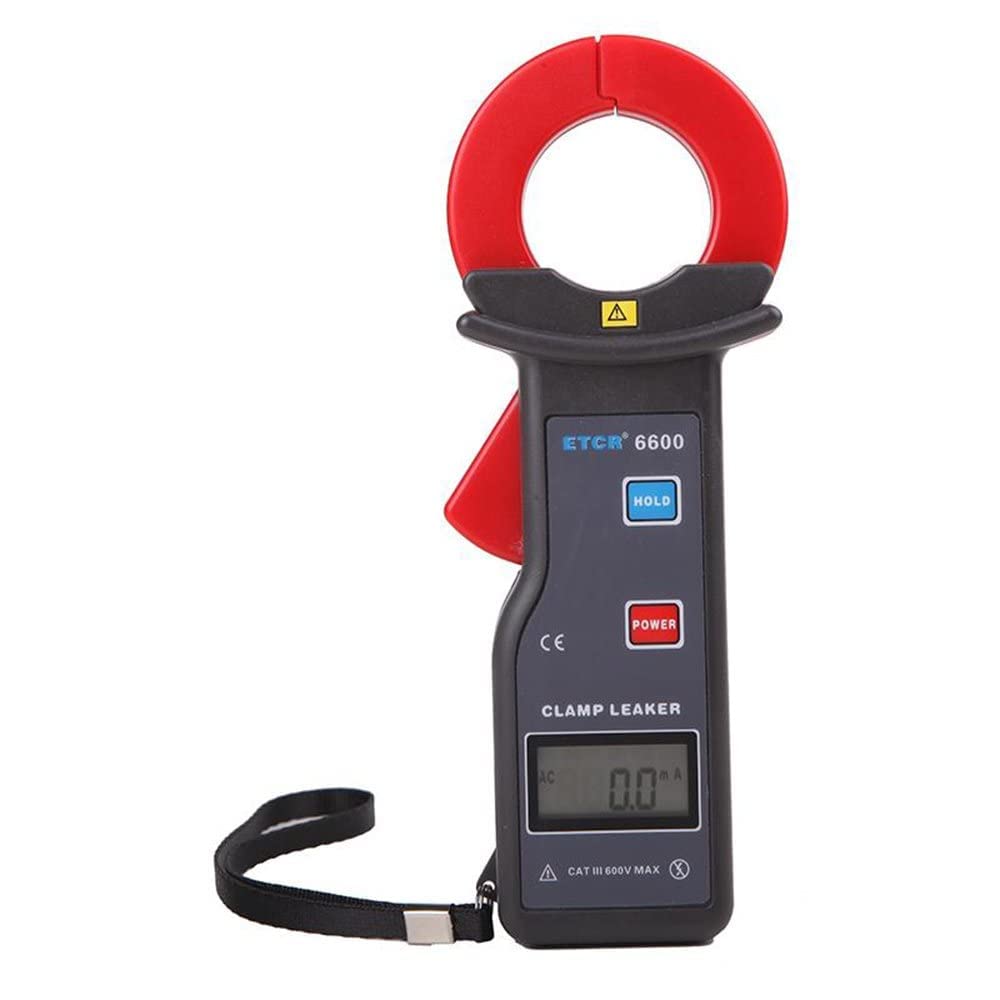

ETCR6600 AC Leakage Current Meter Tester High Precision Resolution 0.1mA with AC Range 0.0mA to 600A Clamp Size 35mmx40mm
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
ETCR6600 AC Leakage Current Meter Tester High Features
-
◆ ETCR6600 High-Precision Clamp Leakage Current Meter, Suitable for Measuring AC Current and Leakage Current of 600V and Below, Range: 0.0mA~600A,Resolution: 0.1mA AC; Size 35mm x 40mm
-
◆ LCD Dimension: 35mm×21.5mm; Display Dimension: 32mm×15mm; Accuracy : ±1.5%rdg±5dgt(23℃±5℃, below 75%rh);Data Memory: 99 sets, “FULL” Blinking when memory is full
-
◆ The core is made of magnetic shielding material, which has strong anti-interference ability and ensures the accuracy and stability of the measurement. Particularly suitable for high precision and low current measurement
-
◆ Non-contact measurement of current, safe and simple operation. The instrument is small, high precision, stable performance, perfect function, is one of the necessary tools for electrical safety testing and maintenance.
-
◆ Instrument has data retention, data storage and other functions, can save 99 sets of data, the instrument through the RS232 interface with the computer, the saved data can be uploaded to the computer, easy to read, analyze, save, print and so on.
About ETCR6600 AC Leakage Current Meter Tester High
Shipping Policy : Battery Not Included During the Shipping Technical Specifications * Function: AC leakage current measurement, AC current measurement * Clamp Size: 35mmx40mm * LCD Dimension: 35mm×21.5mm; Display Dimension: 32mm×15mm * AC Range: AC 0.0mA~600A * Resolution: 0.1mA AC * Accuracy : ±1.5%rdg±5dgt(23℃±5℃, below 75%rh) * Data Memory: 99 sets, “FULL” Blinking when memory is full * Data upload function: store data can be uploaded to the computer, save and print * Automatic Shutdown: 5 minutes after the boot * Power consumption: ≤5mA, about 80 hours of continuous work * Working environment: -10°C~50°C; 20%rh~80%rh * Storage environment: -10 °C ~ 60 °C; 70% rh below * Measurement method: Clamp-shaped CT, non-contact measurement, integral method * Frequency: 50Hz, 60Hz automatic identification * Peak hold: peak capture and hold function, long press HOLD during test does not let go show peak * Data retention: Data retention function: "DH" symbol display * Overflow display: overrange overflow function: "OLA" symbol display * Measurement time: 0.5 seconds/time * Shifting: Automatic Shift * Line voltage: Below 600V AC * Battery Detection: When battery voltage is lower than 7.2V, low battery symbol will shown to remind battery replacement. * Insulation Strength: AC2kV/rms (between core and box) * Safety Provisions: IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V) * Meter Dimension: LWH: 175mm×70mm×38mm * Power Supply: 6F22,9V（Battery not included in the package） * Accessories: Meter: 1 piece, RS232 cable:1 piece; Software : 1 piece; bag 1 piece
