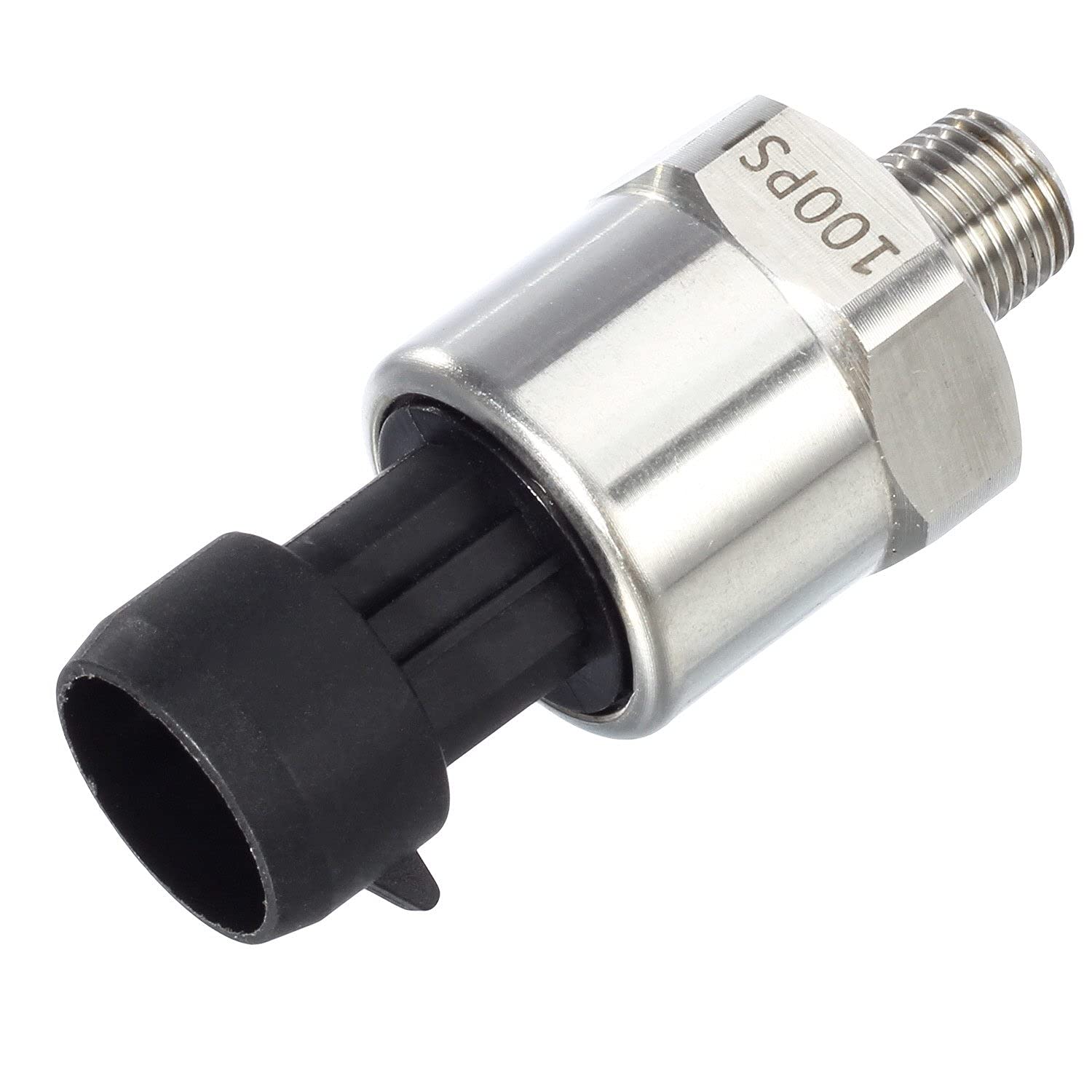

AUTEX 100psi Pressure Transducer Sensor, 0-100 Psi Pressure Sender 1/8" -27 NPT Oil Pressure Transmitter 316 Stainless Steel with Connector Harness Kit For Oil Fuel Air Water Pressure
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
AUTEX 100psi Pressure Transducer Sensor, 0-100 Psi Features
-
pressure transducer /pressure Sender/ Pressure Transmitter, Our material is using top of line 316 stainless steel (not 304)and high temperature auto-graded plastic
-
Output: 0.5V – 4.5V linear voltage output. 0 psi outputs 0.5V, 50 psi outputs 2.5V, 100psi outputs 4.5V;(Power:5VDC)
-
Pressure Medium:The gas and liquid which is compatible with 316L stainless steel
-
Electromagnetism Compatibility :EN50081-1; EN50082-2; IEC61000-4-3
-
Wiring connector: water sealed quick disconnect.Mating connector and wire harness (pigtail) is included
About AUTEX 100psi Pressure Transducer Sensor, 0-100 Psi
About AUTEX AUTEX is one of the largest automotive parts retailers in the world. Located in CA USA and established in 2006,AUTEX quickly became one of the biggest name brands in automotive parts. We are dedicated to providing the best selection, the latest cutting edge technology. Please check fitment notes & description for accurate information. 100% new pressure transducer /pressure Sender/ Pressure Transmitter, Our material is using top of line 316 stainless steel (not 304) and high temperature auto-graded plastic. Pressure Range: 0-100 psi Material :Stainless steel Output: 0.5V - 4.5V linear voltage output. 0 psi outputs 0.5V, 50 psi outputs 2.5V, 100 psi outputs 4.5V Working Temperature: -40-+125ºC;. Works for oil, fuel, water or air pressure. Can be used in oil tank, gas tank, etc. Accuracy: ±1%FS; Thread: 1/8"-27 NPT. Overload Capacity: 2 times; Pressure Medium: The gas and liquid which is compatible with 316L stainless steel; Load Resistance: ≤(supply power-6.5V/0.02A)Ω; Long-term stability: ± 0.2%FS/year; Temperature Effect on Zero: Typical: ±0.02%FS/ºC; Maximum: ±0.05%FS/ºC; Temperature Effect on Sensitivity: Typical: ±0.02%FS/ºC; Maximum: ±0.05%FS/ºC; Shock Resistance: 100g; Anti-Shock: ≤±0.01%FS(X,Y,Z axes, 200Hz/g); Response Time: ≤1ms; Insulation Resistance: >100mΩ 500VDC; Explosion-proof Class: ExiaTTCT6; Electromagnetism Compatibility: EN50081-1; EN50082-2; IEC61000-4-3; Wiring connector: water sealed quick disconnect. Mating connector and wire harness (pigtail) is included. Wiring: Red for IN+. Black for GND. Green for OUT. Warranty: One year It is an advance pressure sender than traditional mechanical pressure sender. Package include: 1 pcs x100 psi pressure transducer
