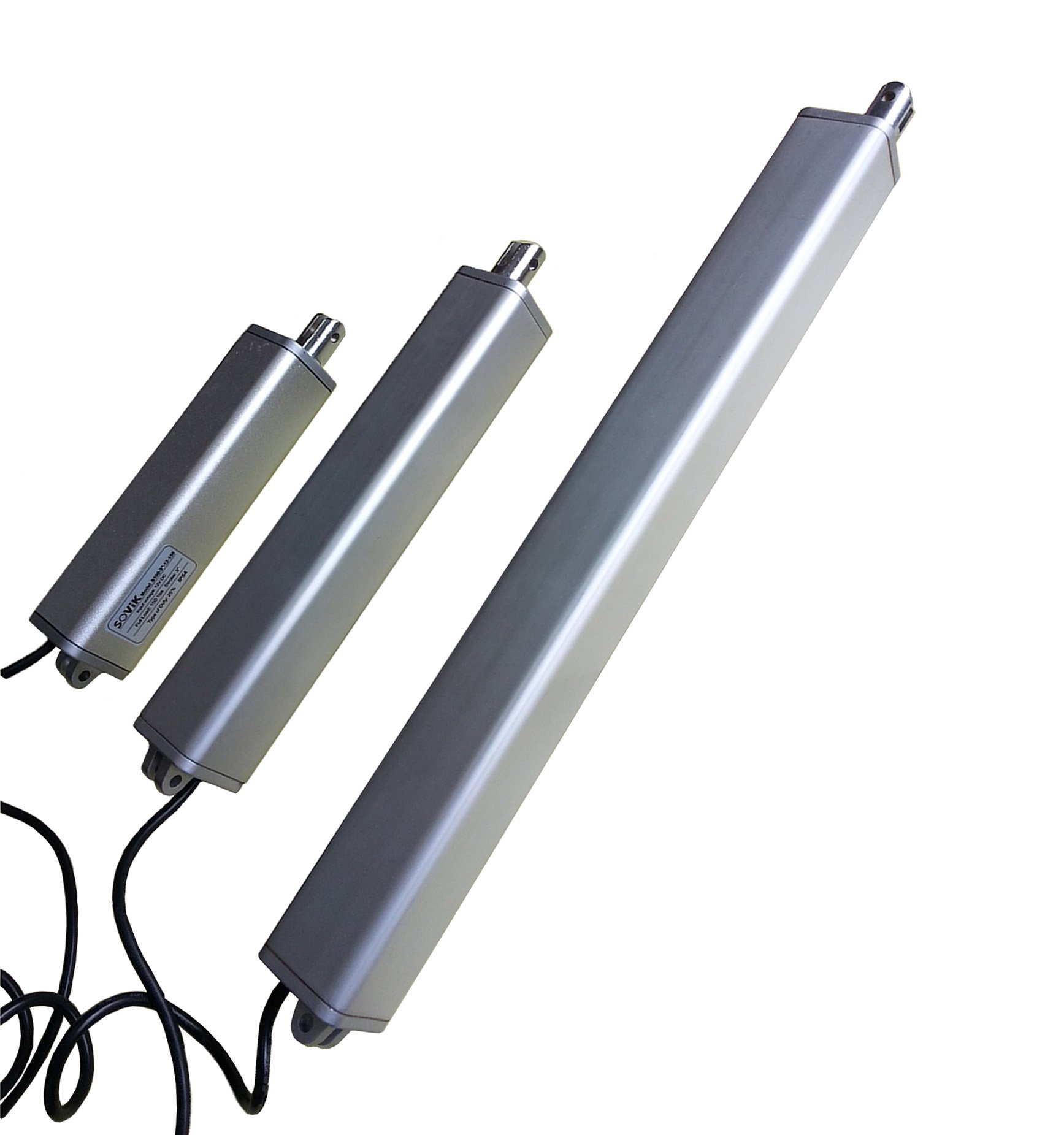

SOViK 12V DC 24 inch Stroke Linear Actuator Electric Cylinder with Mounting Brackets Max Force 44 pounds High Speed 1.8" per sec Square Tube 7/4"(W) x7/4"(H) (Slotted Shaft End)
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
SOViK 12V DC 24 inch Stroke Linear Actuator Features
-
Stroke Length=24"(600mm), Retracted Length(Installation Length of hole to hole) =32"(815mm), Max Extended Length(hole to hole)=55.7"(1415mm)
-
Push Force 44 pounds (200N), No-load Speed: 1.8 inches (45mm) per sec. Starting Current 0.3A, Max Current 2A. Come with a pair of mounting brackets
-
The Protection Class is IP65, suitable for Indoor and Outdoor use. The Duty Cycle is 25%, Built-in Limit Switch. 6mm diameter Mounting Holes. The actuator adopts Slotted Shaft End
-
The actuator adopts In-line design, square tube dimension: 7/4"(W)*7/4"(H). It has Smaller Volume than which actuator with external motor. Compact structure and smooth operation, used for Limited Space
-
Application: 1. As adjuster for your solar panel and tracker. 2. As automatic opener for your coop, gate, door, window, shutter skylight and so on. 3. Other uses: Industrial engineering and medical equipment which need linear motion
About SOViK 12V DC 24 Inch Stroke Linear Actuator
Specification Input Voltage: 12 DCStroke Length: 24 inch / 600mmMaximum Load: 44 pounds / 200N No-load Speed: 1.8 inch(45mm) per secLimit Switch: Built inModel Number: S200-600-12-20-S Duty cycle: 25%Mounting Holes: 6mm diameter Protection Class: IP65 RatedMain Material: Aluminum alloyColor: SilverHow to installPrepare to connect the two wires of the actuator to a 12 volt power supplyGreen wire to the positive terminal and brown wire to negative terminal will make the actuator extend. To make it retract, just reverse the terminal connections.To simplify the last step, you can prepare a reverse polarity relay or switch for the actuator. When you want the actuator to extend and retract, just press the switch.Your actuator will hold its position when the power is off. It will automatically stop when reaches the end. How to protect your actuatorPlease use the 12V DC power supplyThe actual load does not exceed the rated loadAll the actuators have duty cycle, they are unable to work all the time without stop. If the actuator keeps working for long time, the motor is easily burnt outPlease be careful, the actuator not completely waterproofWhat you will get1pc SOViK Linear Actuator2pcs Mounting BracketsProfessional after-sale serviceApplicationAs adjuster for your solar panel and trackerAs automatic opener for your coop, gate, door, window, shutter skylight and so onOther uses: Industrial engineering and medical equipment which need linear motionFor the DIY lovers, this actuator will bring a lot of inspiration to do many creative thingsSuggestionsPlease pay attention to the dimension of product, SEE DIMENSIONAL DRAWING AND ADDITIONAL TECHNICAL SPECIFICATIONS
