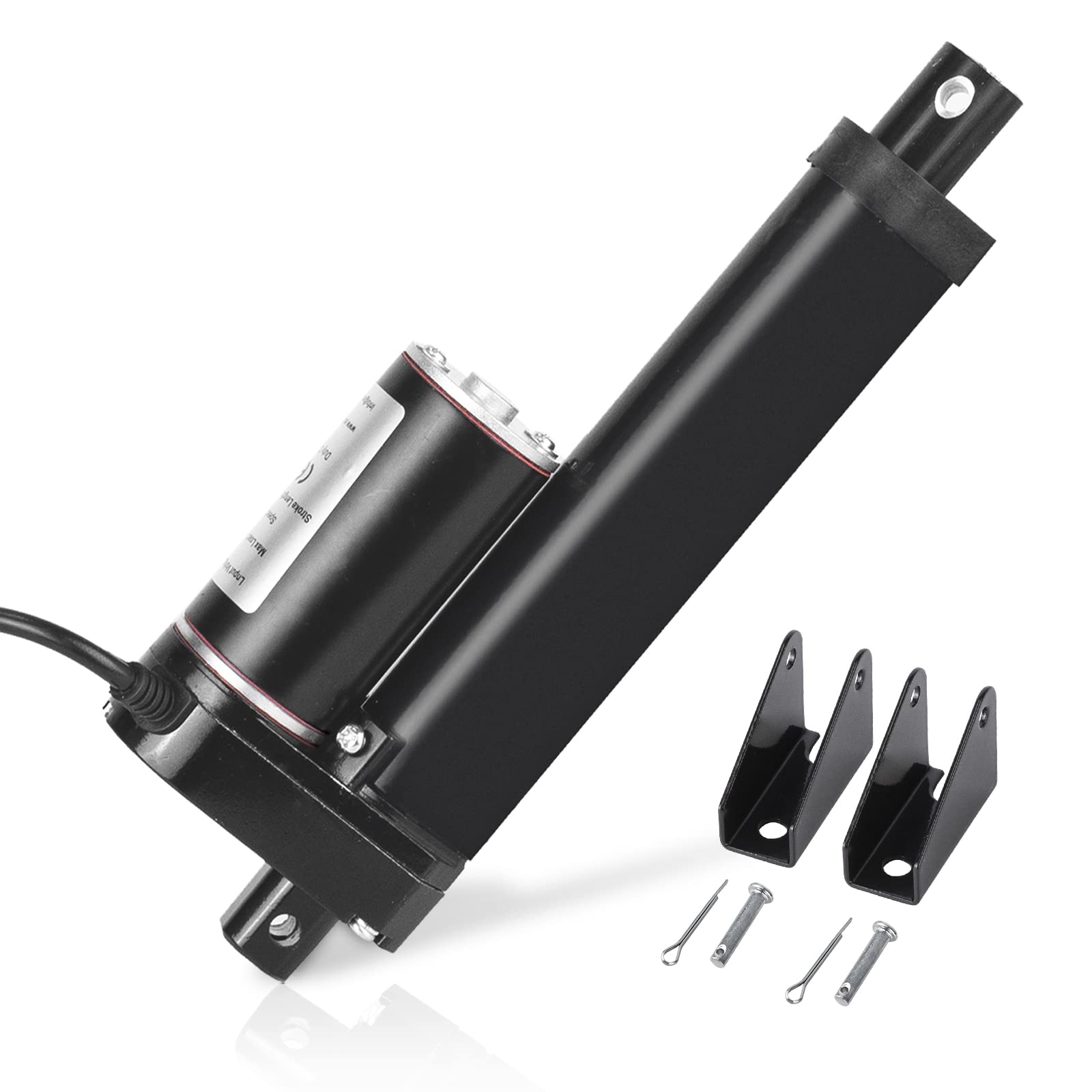

DC HOUSE 1000N High Speed 14mm/s Black Actuator Motor 4 Inch 4" Stroke Linear Actuator DC12V with Mounting Brackets (Not Include Wiress Remote Controller)
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
DC HOUSE 1000N High Speed 14mm/s Black Actuator Features
-
Specification: stroke length= 4 inches(100mm); travel speed: 0.55in/sec(14mm/sec); retracted length= 205mm(8"); extended length= 305mm(12"); current draw= 3amps.
-
Material: aluminum alloy housing, IP54-rated protection sealed against dust, water, and corrosion suitable for outdoor use. The internal limit switch automatically switches off when it reaches in case of the motor idling.
-
Great performance: with reliable performance, stable running, the same characteristics of push and pull, good environment adaptability, etc.
-
Application: widely used in many industries, such as electric power, machinery, metallurgy, mining, petroleum, chemical industry, transportation, lifting, construction, food and feed processing, and so on.
-
Professional team: DC HOUSE has been manufacturing linear actuators for many years, passing several technical tests.
About DC HOUSE 1000N High Speed 14mm/s Black Actuator
Product features ➤Specification:Stroke length = 4 inches (100mm);Travel Speed: 0.55in/sec(14mm/sec); Retracted length = 205mm(8"); Extended Length=305mm(12");Maximum current draw = 3Amps; Maximum Load = 225lbs(1000N). ➤Material:Aluminum alloy housing, IP54 rated protection sealed against dust, water, and corrosion suitable for outdoors use. Internal limit switch, automatically switch off when it reaches in case of the motor idling. ➤Great Performance:with reliable performance, stable running, the same characteristics of push and pull, and good environment adaptability etc. ➤Application:Widely used in many industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on. ➤1 Year product warranty,any problems about the product please feel free to contact us. INSTALLATION WARNING:1.The load added onto the actuator must be less than or equal to the rated load of actuator. 2.Install actuator so the force of the load acts in the center of the extension tube and the rear mounting adapter. 1.Mount the actuator by securing the top and the bottom mounting holes to two fixed positions.The stroke length of the actuator and the limitations of the particular application will detemine the location of the fixed mounting positions. IMPORTANT:Confirm that the two-way movement of item is smooth and within the actuator's stroke length after it has been installed .Additionally ,confirm that no obstacles exist along the travel path of the actuator . 2.Secure the top and the bottom mounting holes of the item onto the two mounting fixtures using 5/16'' diameter bolts. 3.Connect the red wire to the positive post and black wire to the negative post of the DC power supply . 4.The operation of the item should be tested manually after the installation is completed.
