DIHOOL 60 Amp Solar Panel Disconnect Switch, DC Miniature Circuit Breaker with DIN Rail Box

Product ID : 49123218

Available options (color, size, package, etc). Prices may vary.

---

  Share   Tweet

share more:

---

Galleon Product ID 49123218

Shipping Weight 1.19 lbs
I think this is wrong?

Model HT3S-60A DC MCB

Manufacturer DIHOOL

Shipping Dimension 6.77 x 3.94 x 3.19 inches
I think this is wrong?

See more product information!

-

Before ₱ 2,710

₱ 2,579

Price Tracker

+ ₱ 543
International Shipping

via AIR

Get it between 2024-12-12 to 2024-12-19. Additional 3 business days for provincial shipping.

---

BUY NOW!

*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown

---

• Electrical items MAY be 110 volts.
• 7 Day Return Policy
• All products are genuine and original
• Cash On Delivery/Cash Upon Pickup Available

Pay with

DIHOOL 60 Amp Solar Panel Disconnect Switch, DC Features

• UV Proof: It is made of PC material and can be used outdoors. It can emit ultraviolet rays and will not be damaged for 1-2 years

• Flame Retardant Shell: Added flame retardant, with V1 grade flame retardant

• IP65 Waterproof: With IP65 waterproof grade, it can be used for outdoor rain protection

• Gift 4 pcs Cable Glands , Use For 4-9MM Diameter Cable (11-5AWG Cable)

• 60 Amp DC/AC Circuit Breaker, No Polarity, Rated Voltage: DC 12-400V Protect - And + Pole or AC 90~400V Protect L And N Pole

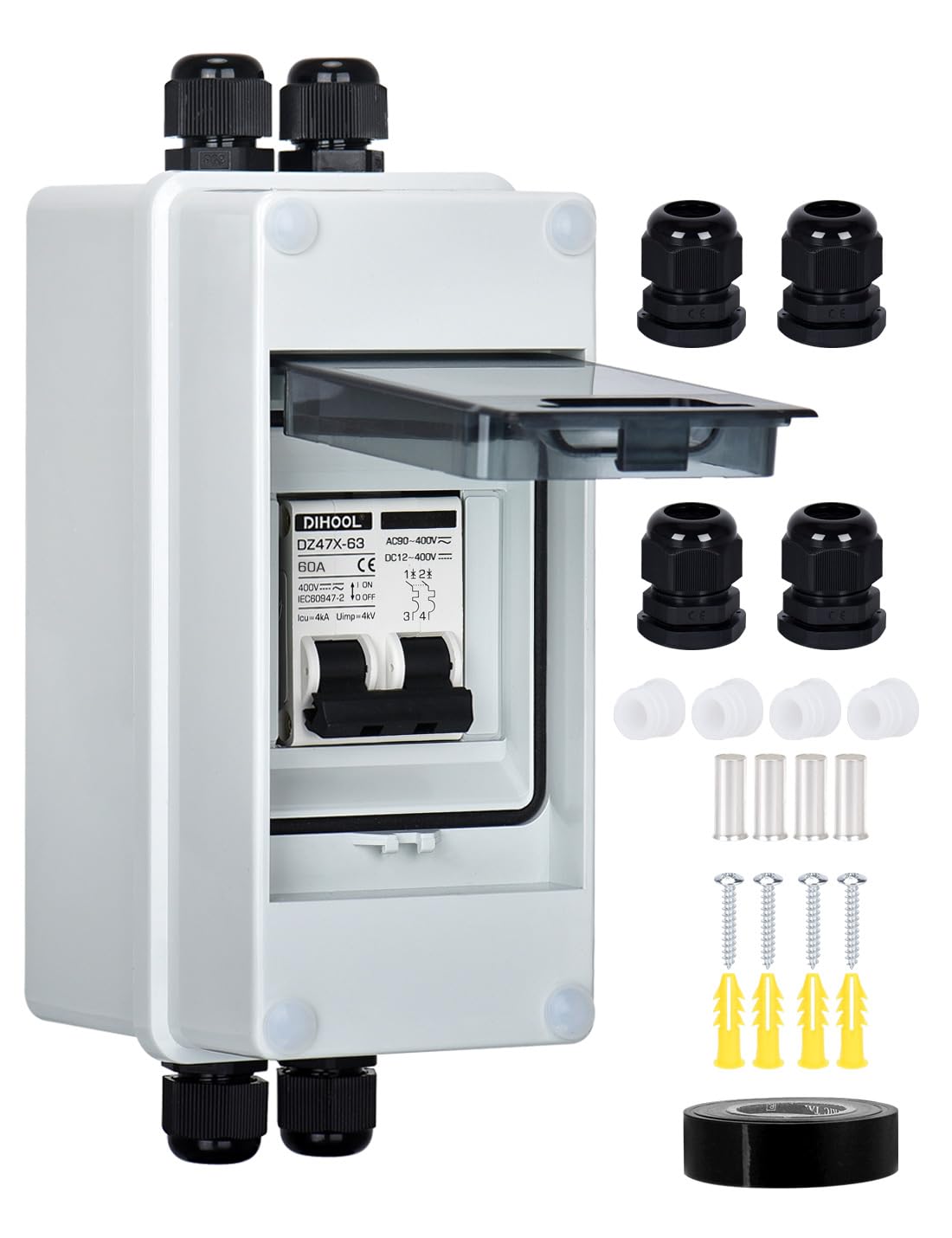

About DIHOOL 60 Amp Solar Panel Disconnect Switch, DC

Our circuit breaker box is made of PC+ABS material. 95% of plastic boxes on the market are made of ABS material, which cannot be UV-proof and have no flame retardant effect. Our circuit breaker box has V1 flame retardant grade, with UV protection, can be used outdoors, the box will not be damaged by the sun for about 2 years DZ47X miniature circuit breaker (solar disconnect switch) is used for AC and DC circuit. It is suitable for circuit equipment with voltages of DC12~400V and AC90~400V, and is often used to protect the circuit between the solar panel and controller. This product is composed of a waterproof box, cable gland and circuit breaker. It has the function of IP65 waterproof and dustproof, and is safer to use. It is suitable for indoor, outdoor eaves, distribution board, under the solar panel, warehouse, etc. place. After the dc circuit breakeris improved, the internal wiring space is increased. If you need more wiring space, choose HA4-DZ47X series products Adapter Cable: 4-9MM Diameter Cable, 11-5 AWG Cable ------ Specifications Model: HT3S-60A Rated Operating Voltage : AC90~125V / DC12~400V Poles: 2P Rated Current: 60A Working Frequency: 50/60Hz Breaking Capacity: 4 kA Ics=Icu Trip Curve: B Mechanical Life: 10,000 times Electrical Life: 4,000 times Installation Method: 35MM DIN Rail Standard: IEC60898 / GB10936 Operating Temperature: -30°C to +80°C Operating Altitude: 2000 Meter
