Get it between 2024-12-11 to 2024-12-18. Additional 3 business days for provincial shipping.
【Strong and Reliable Performance】The UL certificated shallow well pump with 1/2 HP motor. Maximum flow rate up to 960 GPH and Max lift water up to 125 feet. Corrosion-resistant stainless steel construction extends product life and is easy to clean.
【Safety Ensure】The draining irrigation pump pay attention to safety. Full corrosion-resistant and reinforced thermoplastic construction with thermal overload protection for continuous duty use in water removal application.
【Economic Pump】The sprinkler pump is a versatile pump for pressure boosting, small underground sprinkler systems, operating lawn sprinklers and a multitude of other general purpose applications. Suitable use in garden, lawn, farm and rural house.
【Installation Notice】The garden pump should be installed in a dean, dry and ventilated location which provides adequate room for servicing and protection from freezing temperatures. It should be bolted to a good foundation, preferably concrete and provided adequate drainage.
【Operation Warnning】 Do not run the transfer pump before priming it, since the seal and impeller could be permanently damaged. Remove the plug from the street tee and pour clean water into the unit until casing and suction line are completely filled.

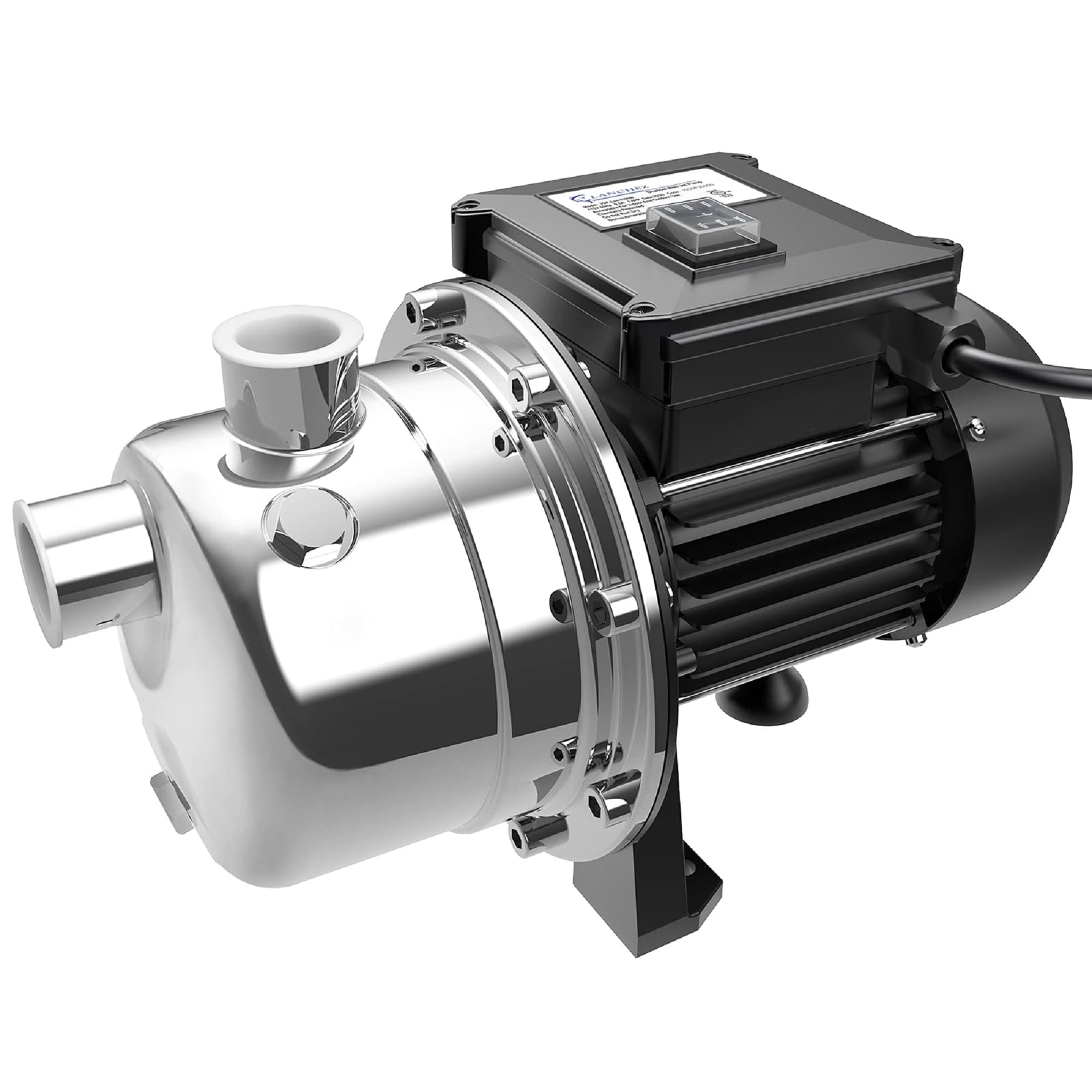

Product Details With a corrosion resistant stainless steel construction, the Lanchez 1/2 HP 960 GPH shallow well jet pump offers performance to 26 feet depth of water at 55.1PSI. Featuring emergy-efficient motor with thermal overload protection, it also makes only a little noise when operating. Includes 420 shaft, heavy duty ball bearings, balanced motor, mechanical shaft seal and insulated motor windings and 6 feet cable. The sprinkler pump is designed for 115V, 60HZ. Tip:Please add some water to the outlet before operation. Application Occasions The Lanchez shallow well jet pump is designed for continuous duty use in watering applications, such as gardens, lawns, irrigation systems, booster services, and other household applications. Specification Nominal voltage: 115V/60HZ Output power: 1/2HP Motor full load: 6 amps Max.height: 125 feet Max.suction height: 26 feet Max.Flow: 960 GPH Max.fiuid temperature: 95°F Max.grain size: 0.04 inch Max.pressure: 55.1 PSI Die. of pipe: NPT 1inch Length of cable: 6 feet Package includes: 1 x shallow well jet pump 2 x detailed instruction manual
