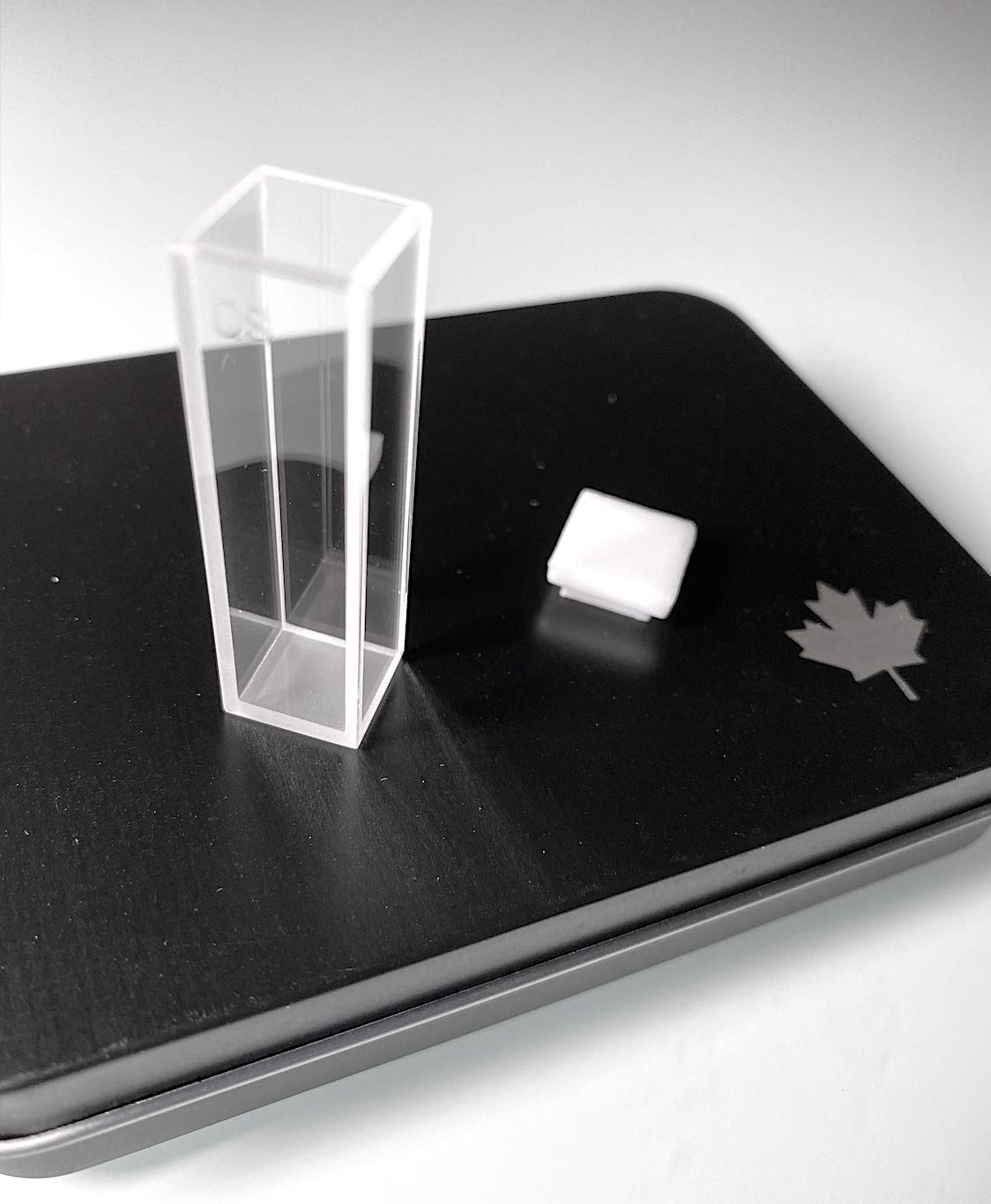

JGS1 Optical Quartz Cuvettes (Standard 3.5 ml Quartz Cuvette; 10 mm Light Path; Four Polished Sides)
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
JGS1 Optical Quartz Cuvettes Features
-
Spectral range: 190-2500 nm for all quartz cuvettes;
-
Acid, base, organic solvent-resistant; no leakage is found for these cuvettes containing hydrochloric acid, anhydrous ethanol, carbon tetrachloride, and benzene for 24 hours;
-
Temperature-resistant up to 525°C / 977°F for all cuvettes; low down to -60°C / -76°F and high up to 1100°C / 2012°F for cuvettes with screw cap and septum;
-
Our ultraviolet quartz cells are all in high precision only; +/- 0.015 mm for all standard quartz cuvettes and +/- 0.005 mm for quartz cuvettes with screw caps.
-
Optical Windows: 2 or 4; Non-reactive PTFE caps included for every purchase; packed with foam and bubble wraps for safe transportation and passed 1-meter drop test before delivery
About JGS1 Optical Quartz Cuvettes
Chemical-Resistant UV Quartz Cuvettes Our UV quartz cuvettes are perfect for UV/Vis, fluorescent, and AFM measurements. Standard 3.5 ml Quartz Cuvette; 10 mm Light Path; Two or Four Polished Sides OD:12.5 mm x 12.5 mm x 45 mm; Wall Thickness: 1.25 mm Standard 1.75 ml Quartz Cuvette; 5 mm Light Path; Two Polished Sides OD:12.5 mm x 7.5 mm x 45 mm; Wall Thickness: 1.25 mm Standard 0.35 ml Quartz Cuvette; 1 mm Light Path; Two Polished Sides OD:12.5 mm x 3.5 mm x 45 mm; Wall Thickness: 1.25 mm Standard 7 ml Quartz Cuvette; 20 mm Light Path; Two Polished Sides OD:12.5 mm x 22.5 mm x 45 mm; Wall Thickness: 1.25 mm Standard 14 ml Quartz Cuvette; 40 mm Light Path; Two Polished Sides OD:12.5 mm x 42.5 mm x 45 mm; Wall Thickness: 1.25 mm Quartz 0.35 ml Microcuvette; 10 mm Light Path; Two or Four Polished Sides OD:12.5 mm x 12.5 mm x 45 mm; Inner Channel: 1 mm; Wall Thickness: 1.25 mm 3.5 ml Quartz Cuvette with Screw Cap and Septum; 10 mm Light Path; Four Polished Sides OD:12.5 mm x 12.5 mm x 58 mm; Wall Thickness: 1.25 mm For further questions or concerns, please visit our website at https://www.alphananotechne.com/uv-quartz-cuvettes or send us your questions or concerns at [email protected]
