MakerFocus TFT LCD Screen Display 1.3inch TFT LCD Module, 240x240 IPS 65K Full Color 3.3V with SPI Interface ST7789 IC Driver, 51 STM32 Ar duino Routines for DIY

Product ID : 46014479

Product Rating

4.1 out of 5 stars

---

  Share   Tweet

share more:

---

Galleon Product ID 46014479

UPC / ISBN 673400165084

Shipping Weight 0.03 lbs
I think this is wrong?

Model OQDK241413N5I8NU

Manufacturer MakerFocus

Shipping Dimension 3.86 x 2.56 x 0.55 inches
I think this is wrong?

See more product information!

-

₱ 876

Price Tracker

+ ₱ 150
International Shipping

via AIR

Get it between 2025-11-04 to 2025-11-11. Additional 3 business days for provincial shipping.

---

BUY NOW!

*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown

---

• Electrical items MAY be 110 volts.
• 7 Day Return Policy
• All products are genuine and original
• Cash On Delivery/Cash Upon Pickup Available

Pay with

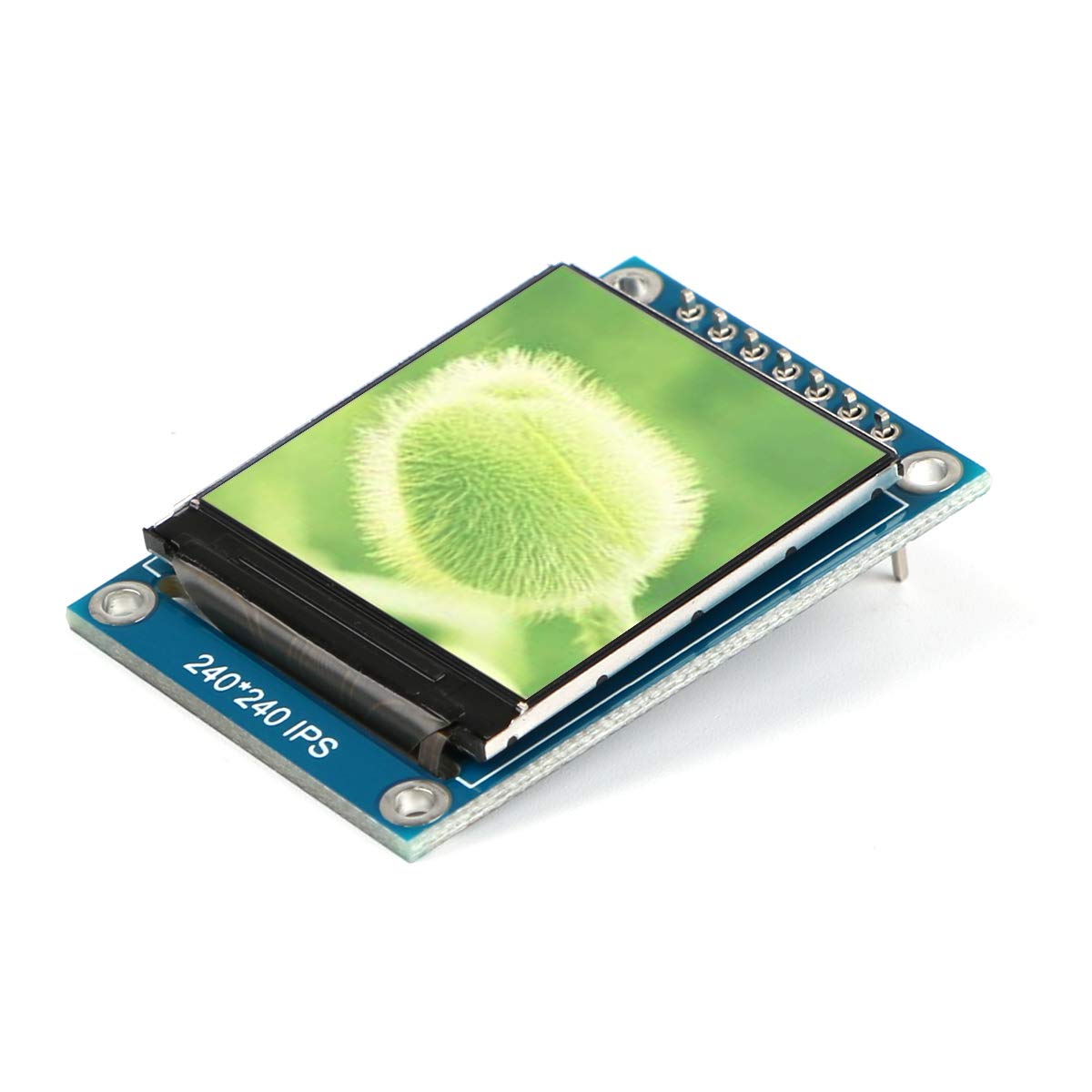

MakerFocus TFT LCD Screen Display 1.3inch TFT LCD Features

• 1.3inch TFT LCD Screen Display Module:The TFT display provides a semiconductor switch for each pixel and each pixel is directly controlled by pulse. Therefore, each node is relatively independent and can be continuously controlled, which not only improves the response speed of the display, but also can be accurately controlled

• Dot Size: 240*240 (There are two display way: horizontal display and vertical display, you can adjust the display direction.)

• Working Voltage:3.3V; Working temperature: -20-70℃

• Interface: SPI Interface; IC Driver: ST7789

• Viewing direction: IPS; Display area Size: 23.4*23.4mm; TFT Module Size: 27.78* 39.22mm

About MakerFocus TFT LCD Screen Display 1.3inch TFT LCD

Description: The TFT display provides a semiconductor switch for each pixel and each pixel is directly controlled by pulse. Therefore, each node is relatively independent and can be continuously controlled, which not only improves the response speed of the display, but also can be accurately controlled. The color level is displayed to make the TFT LCD color more realistic, the brightness is good, the contrast is high, the layering is strong and the color is bright Specification: Viewing direction: IPS LCD Size: 1.3inch Dot Size: 240*240 ( There are two display way: horizontal display and vertical display, you can adjust the display direction. ) Interface: SPI Interface, 7PIN LED color: 65K full color IC Driver: ST7789 Working temperature: -20-70℃ Working Voltage: 3.3V Display area Size: 23.4*23.4mm TFT Module Size: 27.78* 39.22mm Pin: GND: power supply VCC: DC 3.3-5V SCL: SPI Clock Cable SDA:SPI Data Cable RES: Reset DC: SPI Choice/ Command Choice BLK:Backlight control, default floating, low level off Package Including: 1 * 1.3inch TFT LCD Display Module
