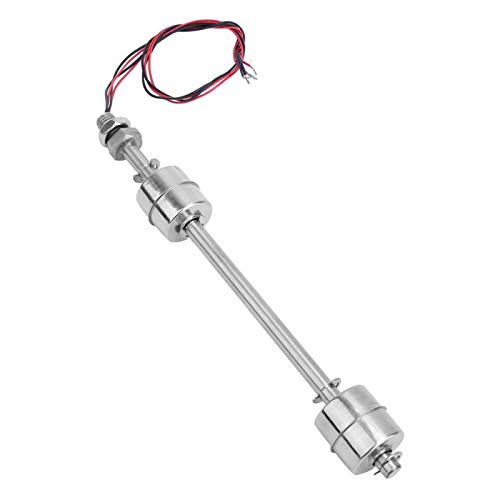

Float Switch, Stainless Steel Double Ball Tank Level Float Switch,DC 0~110V Water Level Controller Sensor Switch for Tank Pool (200mm)
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
Float Switch, Stainless Steel Double Ball Tank Features
-
【WORKING PRINCIPLE】: Normal water intake process activated by the float switch below, and the float switch above stops working. The drain is activated by the float switch above and the lower float switch stops working
-
【USAGE METHOD】: The action range of the two floats of the double float switch is 10 mm. If the demand control range is large, two float switch combinations can be used, so that there is a large stroke to ensure that the pump does not start frequently
-
【NOTE】: The water level float switch cannot directly control solenoid valves or high-power relays, AC contactors, etc.A small relay(like HH54P) is needed for transition
-
【HIGH SENSITIVITY】: The contacts inside of this float water level switch are made of a reed switch with very high sensitivity
-
【WIDE USE】: The double float liquid level swich can be used to control the liquid level of the water tank, pool, sink, fish tank, etc. (drain or water), or to make the upper and lower alarm switch of the liquid level
About Float Switch, Stainless Steel Double Ball Tank
Specification: Voltage:DC 0~110V Material:304 Stainless Steel Size(Floating Body Length):(Optional) 100mm / 3.94in 150mm / 5.91in 200mm / 7.87in 250mm / 9.84in Package List: 1 x Double Ball Float Switch
