EC Buying GY-521 MPU6050 3 Axis Accelerometer Gyroscope Module,6DOF 3-Axis Accelerometer + 3-Axis Gyroscope Sensor Module16-Bit AD Converter Data Output IIC I2C for Arduino (3PCS)
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
EC Buying GY-521 MPU6050 3 Axis Accelerometer Features
-

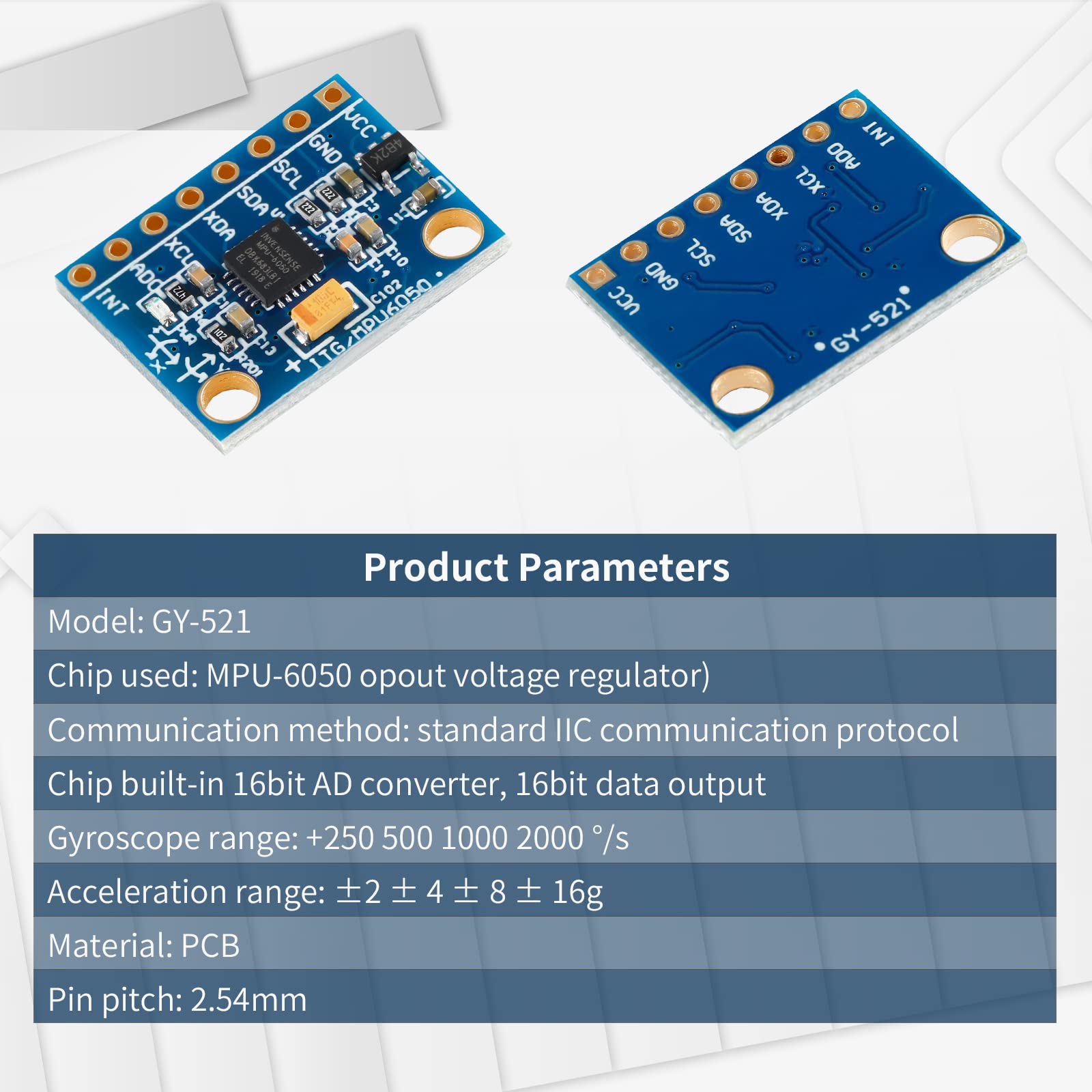

♥Product parameters: The chip used: MPU-6050 Power supply: 3-5v (internal low dropout voltage regulator) Communication method: standard IIC communication protocol Chip built-in 16bit AD converter, 16bit data output Gyroscope range: +250 500 1000 2000 °/s Acceleration range: ±2 ± 4 ± 8 ± 16g Using immersion gold PCB, machine welding process to ensure quality Pin pitch: 2.54mm
-

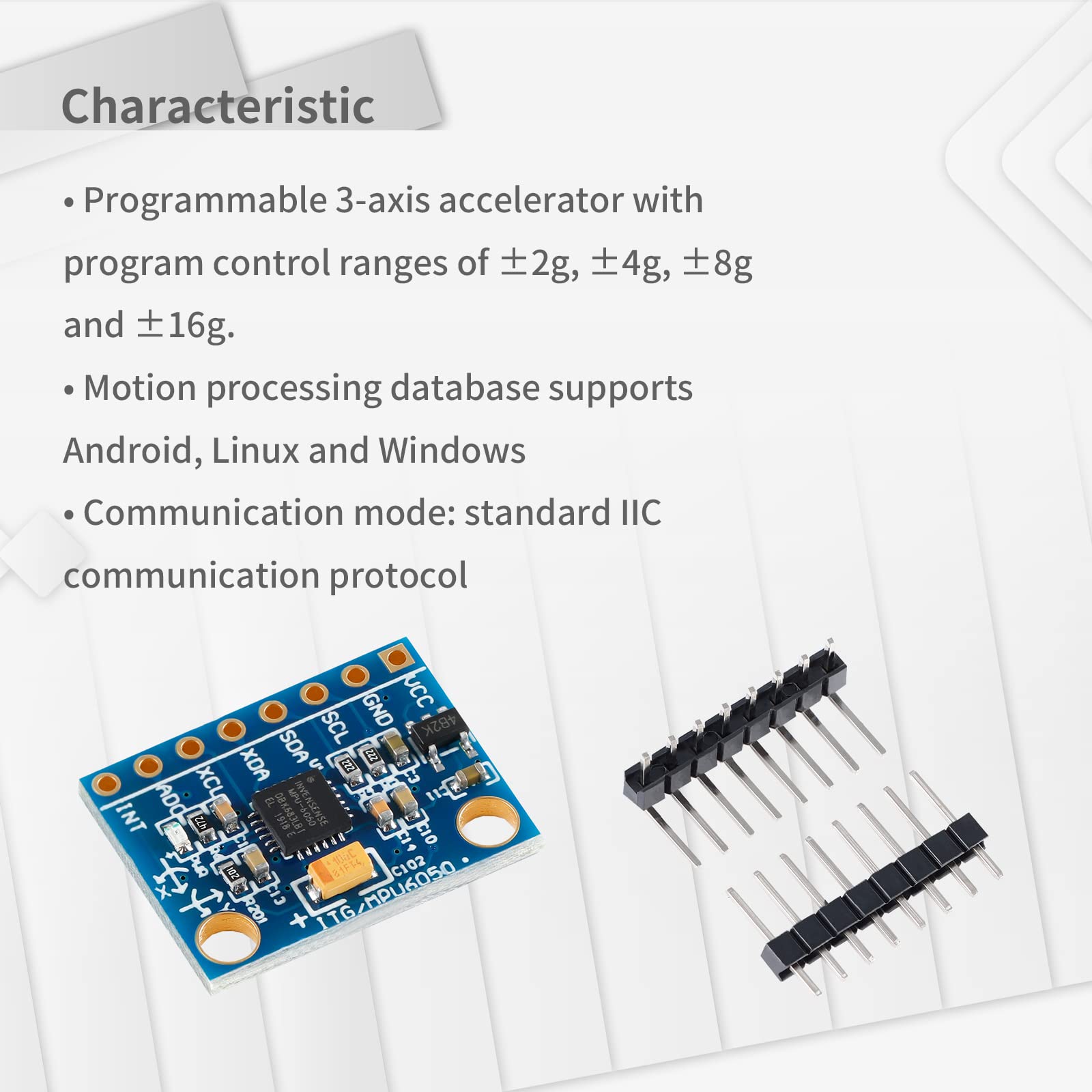

♥MPU6050 Sensor Basic Features: Digitally output 6-axis or 9-axis rotation matrix, quaternion, and Euler Angle format fusion calculation data. 3-axis angular velocity sensor (gyroscope) with 131 LSBs/°/sec sensitivity and full-frame sensing ranges of ±250, ±500, ±1000, and ±2000°/sec. Programmable 3-axis accelerator with program control ranges of ±2g, ±4g, ±8g, and ±16g. Removed sensitivity between accelerator and gyroscope axes, reducing setting effects and sensor drift.
-
♥MPU-6050 Sensor Other features: Digital Motion Processing engine can reduce a load of complex fusion calculation data, sensor synchronization, posture sensing, etc. Motion processing database supports Android, Linux, and Windows Built-in operating time deviation and magnetic sensor calibration calculation technology, eliminating the need for additional calibration by customers. Sync pin with digital input to support video electronic image stabilization technology and GPS
-
♥ Characteristic: Temperature sensor with digital output VDD supply voltage is 2.5V±5%, 3.0V±5%, 3.3V±5%; VDDIO is 1.8V±5% Gyro operating current: 5mA, Gyro standby current: 5A; Accelerator operating current: 350A, Accelerator power-saving mode current: 20A@10Hz Fast-mode I2C up to 400kHz, or SPI serial host interface up to 20MHz The built-in frequency generator has only ±1% frequency variation in all temperature ranges (full temperature range).
-
♥ Application: motion sensing game Augmented reality electronic image stabilization Optical image stabilization
About EC Buying GY-521 MPU6050 3 Axis Accelerometer
Description ★Feature: Digitally output fusion calculation data in 6-axis or 9-axis rotation matrix, quaternion, and Euler angle formats. 3-axis angular velocity sensor (gyroscope) with 131 LSBs/°/sec sensitivity and full-frame sensing ranges of ±250, ±500, ±1000, and ±2000°/sec. Programmable 3-axis accelerator with program control ranges of ±2g, ±4g, ±8g, and ±16g. Removed sensitivity between accelerator and gyroscope axes, reducing setting effects and sensor drift. The digital motion processing engine reduces a load of complex fusion algorithm data, sensor synchronization, posture sensing, etc. Motion processing database supports Android, Linux, and Windows Built-in operating time deviation and magnetic sensor calibration calculation technology, eliminating the need for additional calibration by customers. Temperature sensor with digital output Supports video electronic phase stabilization technology and GPS with digital input sync pin Programmable interrupts support gesture recognition, panning, zooming, scrolling, rapid descent interrupts, high-G interrupts, zero motion sensing, touch sensing, and shaking sensing functions. VDD supply voltage is 2.5V±5%, 3.0V±5%, 3.3V±5%; VDDIO is 1.8V±5% Gyro operating current: 5mA, Gyro standby current: 5A; Accelerator operating current: 350A, Accelerator power-saving mode current: 20A@10Hz Fast-mode I2C up to 400kHz, or SPI serial host interface up to 20MHz The built-in frequency generator has only ±1% frequency variation over all temperature ranges. The smallest and thinnest package (4x4x0.9mm QFN) tailored for portable products
