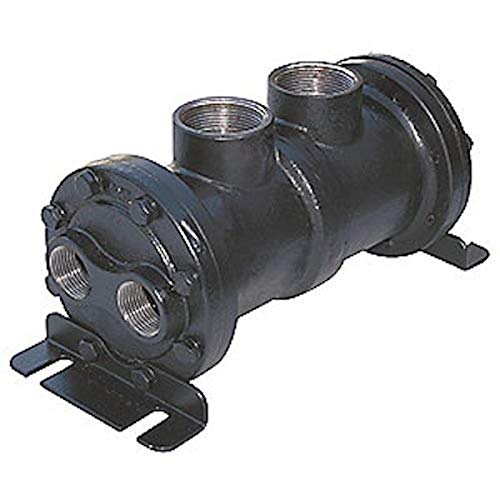

Lovejoy Hydraulics BNZ 60-131-2-S Water-Oil Cooler, Copper Tubes, 60 mm Shell Diameter, 131 mm Core Length, 2 Passes, 1 1/16 - 12 SAE O-Ring Oil Ports, 1/2" NPT Water Ports
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
Lovejoy Hydraulics BNZ 60-131-2-S Water-Oil Features
-
Compact shell-and-tube cooler for removing heat from hydraulic fluid
-
Fins in tube add more surface area for additional cooling capacity
-
Low pressure drop for high efficiency
-
Removable end caps for easy cleaning
-
Mounting brackets can be rotated in 90-degree increments for different mounting options
About Lovejoy Hydraulics BNZ 60-131-2-S Water-Oil
This Lovejoy Hydraulics BNZ water-oil cooler is a compact shell-and-tube cooler for removing heat from hydraulic fluid. The hydraulic oil is circulated through the housing shell and across the cooling fins, which transfer heat to the cooling tubes in the cartridge where it is absorbed and carried away by the water flowing through the tubes. The multiple fins in the cooling tube add more surface area for more cooling capacity, and the 2-pass system directs the oil through the shell twice for additional cooling. The cooler causes only a minimal drop in oil pressure for efficient operation of the hydraulic system. The end caps are removable for easy cleaning of the cooler. The mounting brackets can be rotated in 90-degree increments for different mounting options. This water-oil cooler is suitable for use in industrial and marine environments. SpecificationsHeat removalUp to 400 hp (295 kW)Maximum flow rate volumesUp to 105 gpm (400 l/min)Maximum operating pressureShell side: 590 psi (40 bar) Tube side: 230 psi (16 bar)Maximum operating temperature250 degrees F (121 degrees C)Passes2MaterialsTubes: copper Shell: steel Fins: aluminum End caps: cast iron Gaskets: C4400 aramid fiber Lovejoy manufactures flexible couplings, universal joints, variable speed drives, and other transmission and mechanical power products. The company, founded in 1900, is headquartered in Downers Grove, IL.
