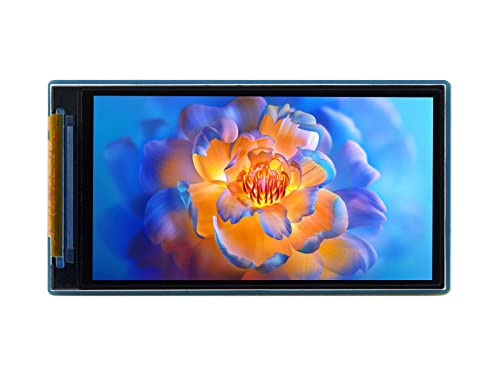

waveshare 1.9inch LCD Display Module 170×320 Resolution Screen, 262K RGB Display Color SPI Interface ST7789V2 Driver, Compatible with Arduino/Raspberry Pi / STM32, etc
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
waveshare 1.9inch LCD Display Module 170×320 Features
-
1.9inch LCD Display Module, 170 (H) RGB × 320 (V) Resolution, IPS Screen , embedded ST7789V2 Controller Chip, 262K Display Colors: clear and colorful displaying effect
-
SPI interface, minimizes required IO pins, compatible with Arduino/ Raspberry Pi/ STM32, etc.
-
Onboard Voltage Translator, compatible with 3.3V / 5V power input (Please ensure that the power supply voltage is consistent with the logic voltage, otherwise it will not work normally).
-
DISPLAY SIZE: 22.70 × 42.72 mm. MODULE SIZE: 27.3 × 51.2mm.
-
Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
About Waveshare 1.9inch LCD Display Module 170×320
Features 1.9inch LCD Display Module, IPS screen. Embedded ST7789V2 Driver Chip, Using SPI Interface. 170×320 resolution, 262K colors, clear and colorful displaying effect Onboard Voltage Translator: Compatible With 3.3V / 5V Power Input Onboard SPI Control Interface: For Use With Controller Boards Like Raspberry Pi / Arduino / STM32 Comes with online development resources (examples for Raspberry Pi/Arduino/STM32) Specifications Operating voltage: 3.3V / 5V (Please ensure that the power supply voltage is consistent with the logic voltage, otherwise it will not work normally.) Communication Interface: SPI Display Panel: IPS Driver: ST7789V2 Resolution: 170 (H) RGB × 320 (V) Display Dimensions: 22.70 × 42.72mm Pixel Pitch: 0.1335 × 0.1335 mm Module Dimensions: 27.3 × 51.2mm LCD And Controller The built-in driver of the 1.9-inch LCD Module is ST7789V2, which is the LCD controller with 240 x RGB x 320, and the resolution of the LCD is 170 (H) RGB × 320 (V). Moreover, the internal RAM of the LCD is not fully used as it can be initialized as a portrait and horizontal screen. This LCD supports the input RGB format of 12 bits, 16 bits, and 18 bits, that is, RGB444, RGB565, and RGB666. The demo used here is RGB565, which is the RGB format we generally used. As the LCD adopts 4-wire SPI, it is not only faster in communication, but also saves more GPIO headers. Online Development Resources /User Manuall://bit.ly/3XCEQsB PACKAGE CONTENT 1.9inch LCD Module x1 GH1.25 20cm cable x1
