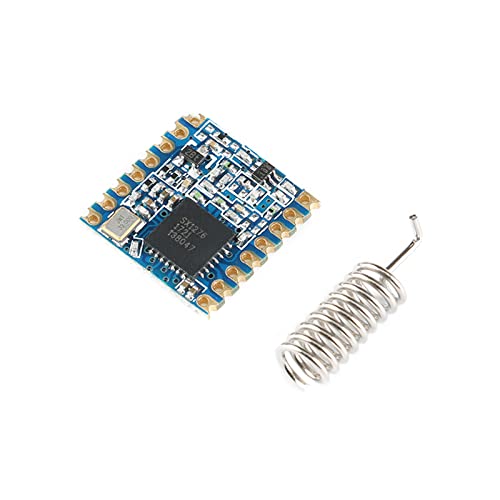

JESSINIE XL1276-P01 Wireless Communication Data Transmission Module Wireless Transceiver Module LoRa Patch Module LORA Spread Spectrum 915M Long Distance
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
JESSINIE XL1276-P01 Wireless Communication Data Features
-
XL1276-P01 uses the spread spectrum chip sx1276, which has the advantages of low power consumption, large capacity, long transmission distance, and strong anti-interference ability. The transmission power, working frequency, modulation rate, and other parameters of the module can be configured by the single-chip computer.
-
Based on the SPI interface mode, it is very convenient for various MCU connections. It can do all kinds of wireless and two-way data receiving and sending. The single-chip computer controls the wireless module to transmit, receive data or sleep through SPI.
-
The wireless module receives data through the NIRQ port to notify the single-chip computer to receive, and the single-chip computer reads the data received by the wireless module through the SPI interface.
-
The module can be easily embedded into the design of customers' existing products or systems. The standard SPI interface makes communication easy. Customers only need to compile a simple communication protocol in the original micro-control device to realize two-way communication and data transmission.
-
This module applies to any wireless data transmission application with complex environments, such as wireless meter reading, smart home control, automotive electronics, security alarm, industrial monitoring, and control system, remote agricultural irrigation control system, etc.
About JESSINIE XL1276-P01 Wireless Communication Data
Product Information Frequency band: 915MHZ Module size: 16*16mm interface spacing 2.0mm Output power: 20dBm/100mW Emission current: 120mA@100mw/3.3V Receiving sensitivity: -139dBm@146B Receiving current: 10mA/3.3V Modulation mode: LORA/GFSK Sleep current: 0.2uA Data interface: four-wire SPI Frequency error:+/-5KHZ Module function FSK/GFKS technology, LoRa (remote) spread spectrum technology Half-duplex communication Super anti-interference (channel rejection ratio: 56db) High receiving sensitivity - 139dbm ISM multi-band, no need to apply for frequency, free use Multi-frequency optional, multiple transmission rates Intelligent reset, low voltage monitoring, timed wake-up, low power consumption mode, sleep mode Low power consumption acceptance current: 10-12mA 56-bit FIFO TX/RX RSSI channel detection function Transmission mode: FIFO/direct mode (FIFO packet mode is recommended) Configuration: AFC/wake-up in the air function/low power consumption/carrier interception/FEC error correction/AEC encryption The distance of ultra-long distance transmission is up to 3km Module size: 16 * 16 * 3mm
