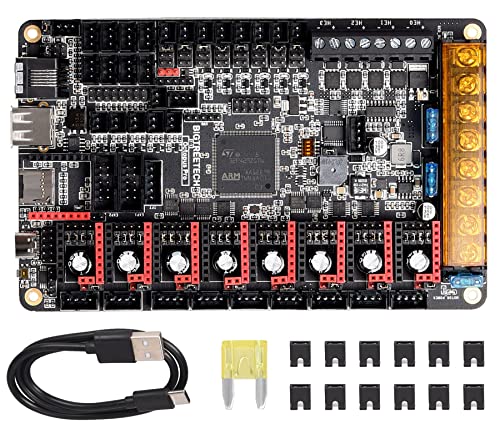

BIGTREETECH Octopus Pro V1.0 Motherboard 32bit New Upgrade with Octopus Control Board Compatible TMC5160 Pro Stepper Driver, Support Powerful DIY for 3D Printer (Main Chip is STM32F429ZGT6)

Product ID : 47220341

Product Rating

4.3 out of 5 stars

Available options (color, size, package, etc). Prices may vary.

---

  Share   Tweet

share more:

---

Galleon Product ID 47220341

Shipping Weight 0.71 lbs
I think this is wrong?

Model KINGPRINTER-ZZB000585

Manufacturer BIGTREETECH

Shipping Dimension 7.83 x 5.04 x 1.65 inches
I think this is wrong?

See more product information!

-

₱ 6,226

Price Tracker

+ ₱ 315
International Shipping

via AIR

Get it between 2025-01-07 to 2025-01-14. Additional 3 business days for provincial shipping.

---

BUY NOW!

*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown

---

• Electrical items MAY be 110 volts.
• 7 Day Return Policy
• All products are genuine and original
• Cash On Delivery/Cash Upon Pickup Available

Pay with

BIGTREETECH Octopus Pro V1.0 Motherboard 32bit New Features

• 【Main Control Chip】The main control adopts the 32-bit ARM Cortex-M4 series STM32F429ZGT6 chip with a frequency of up to 168 MHz. The external crystal oscillator is 8MHz.

• 【About Using Firmware】Three types of firmware, Marlin2.0, killper, and RRF are supported. Please note: STM32F429ZGT6 MCU flash memory space is 1MB, so all functions under the three firmwares are supported, including RRF firmware.

• 【Stepper Motor】The Octopus Pro 3D printing motherboard can support up to 8 stepper motor drivers, and the motor drive power supply supports up to 60V input (only motor drive power supply).

• 【Support Proximity Sensor】Support proximity sensor, jumper optional pull-up resistor, support more models. This function can be sensed without touching the hot bed, while BLTouch needs touch sensing.

• 【High Temperature Test】The onboard MAX31865 can support 2/4-wire PT100/PT1000 temperature measurement without welding (the soldering resistance can also support 3-wire PT100/PT1000 temperature measurement)

About BIGTREETECH Octopus Pro V1.0 Motherboard 32bit New

BIGTREETECH Octopus Pro V1.0 New Upgrade Control Board About the difference between the main control chip STM32F446ZET6 and STM32F429ZGT6: 1. The main control frequency of F446 is 180MHz, and the main control frequency of F429 is 168MHz; 2. The external crystal oscillator of F446 is 12MHz, and the external crystal oscillator of F429 is 8MHz; 3. F446's flash memory space is smaller than F429, F446 flash memory is 512K, F429 is 1MB; when they use RRF firmware, F446 has limited space, so some functions of RRF firmware are deleted. Both Marlin2.0 and Killer can be used normally.
