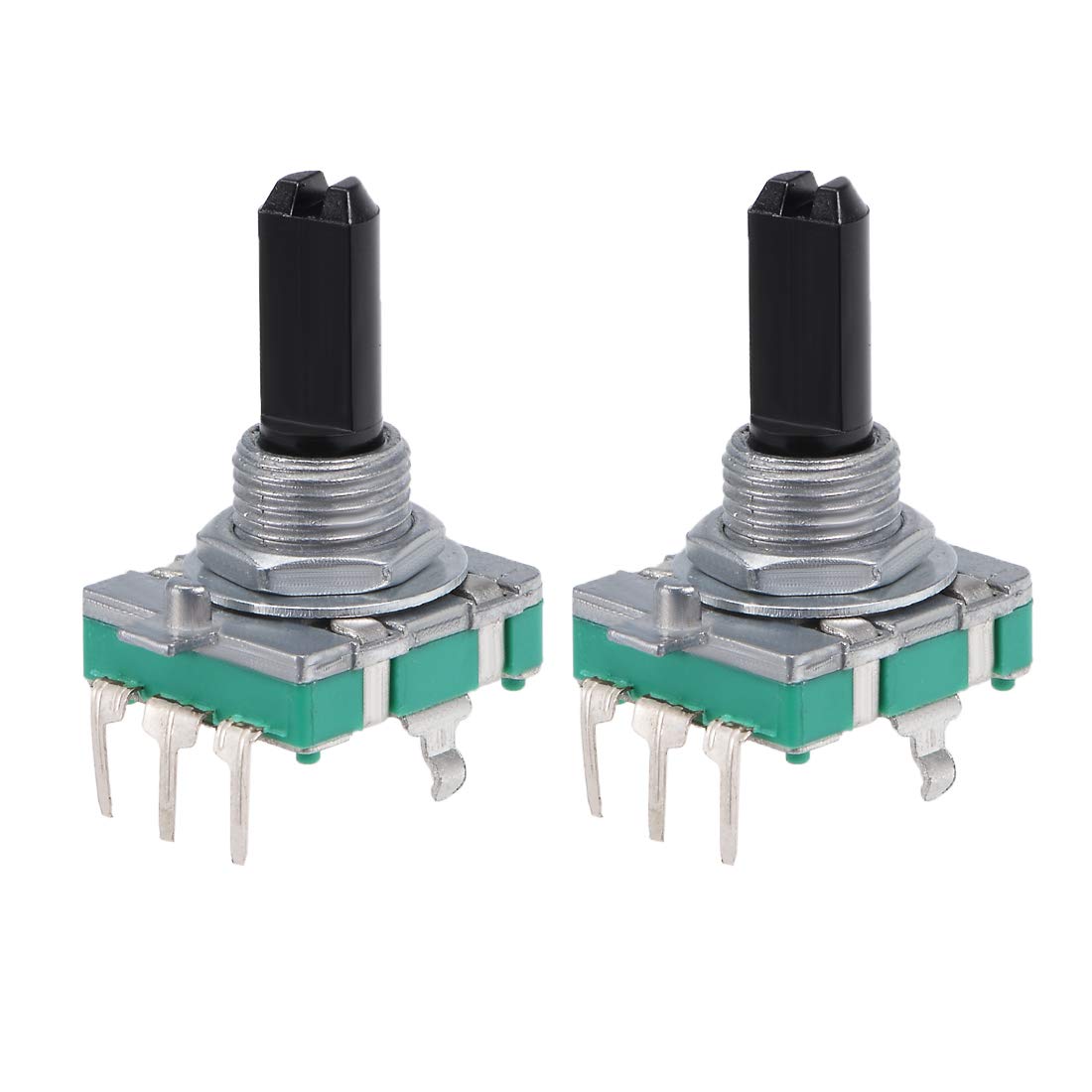

uxcell 360 Degree Rotary Encoder Code Switch Digital Potentiometer 3 Pins 20mm D-Shaft 2Pcs
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
uxcell 360 Degree Rotary Encoder Code Switch Features
-
Type: Encoder code with Switch; Adjustment method: 360 Degree; Number of pulses: 20; Pin Numbers: 5(3 working signal pins & 2 mounting pins); Rated Voltage: 5 Volt; Shaft Type: D Type.
-
Shaft Diameter: 6mm/0.24"; Shaft Height: 20mm/0.79"; Thread Diameter: 8.8mm/0.35"; Total Dimension: 20.5mm x 16mm x 31mm / 0.81" x 0.63" x 1.22"(L*W*H).
-
In the forward rotation, the A line phase leads the B line phase; when reversed, the B line phase leads the A line phase. The phase connection and number of rotations of AB can be identified using a simple digital logic circuit (exclusive OR gate and D flip-flop).
-
By rotating the rotary encoder can be counted in the positive direction and the reverse direction during rotation of the output pulse frequency, unlike rotary potentiometer count, this rotation counts are not limited. With the buttons on the rotary encoder can be reset to its initial state, that starts counting from 0.
-
Applications: Industrial control, robots, photographic lenses, computer input devices
About Uxcell 360 Degree Rotary Encoder Code Switch
Description: A rotary encoder, also called a shaft encoder, is an electro-mechanical device that converts the angular position or motion of a shaft or axle to digital output signals. Rotary encoders are used in a wide range of applications that require monitoring or control, or both, of mechanical systems, including industrial controls, robotics, photographic lenses, computer input devices. Specifications: Adjustment method: 360 Degree Pin Numbers: 5 Number of digits: 20 digits Rated Voltage: 5 Volt Shaft Type: D Type Shaft Diameter: 6mm/0.24" Shaft Height: 20mm/0.79" Thread Diameter: 8.8mm/0.35" Total Dimension: 20.5mm x 16mm x 31mm / 0.81" x 0.63" x 1.22"(L*W*H) Note: Avoid storing the products in a place at high temperature, high humidity and in Corrosive gases. Do not touch the product with water, as this may cause irregular output wave shape.
