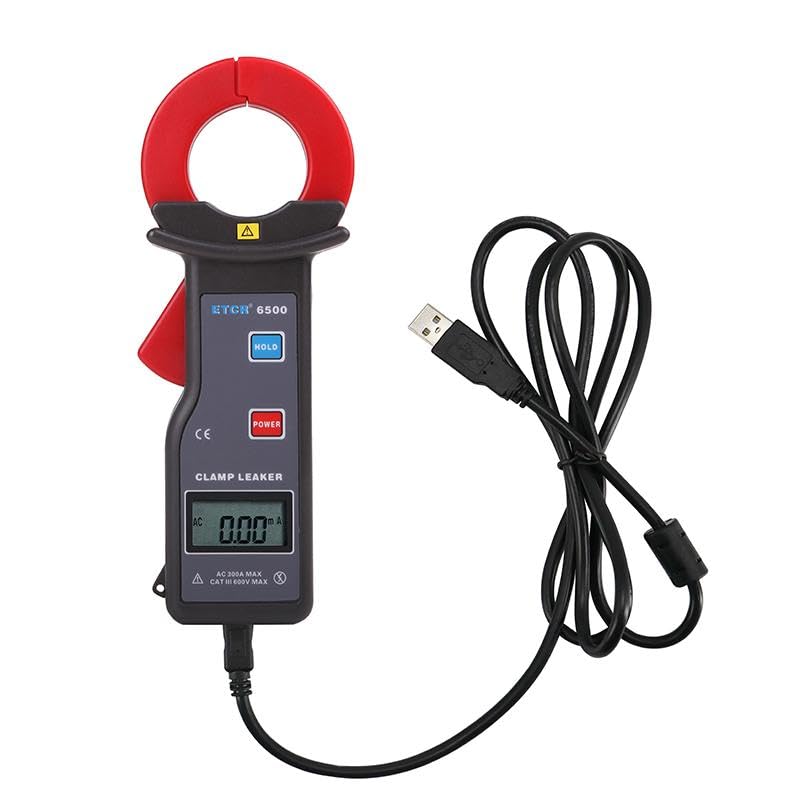

ETCR6500 Current Tester Clamp Meter High Accuracy Clamp Leakage Current Meter Multimeter AC 0.00mA to 300.0A Clamp Size 35mm×40mm with USB Interface
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
- Cash On Delivery/Cash Upon Pickup Available
ETCR6500 Current Tester Clamp Meter High Accuracy Features
-
ETCR6500 High Accuracy Clamp Leakage Current Meter is specially designed and manufactured for measuringAC leakage current. The meter adopts CT technology and digital integration technology, with the characteristics of small size, high precision and fully functional.
-
ETCR6500 High Accuracy Current Tester Clamp Meter Clamp Leakage Current Leaker is widely used in electric power, communication, meteorology, railway, oil field, construction, metrology, scientific research and teaching units, industrial and mining enterprises, automobile circuit maintenance and other fields.
-
Its sensing iron core is made of permalloy, adopts multi-layer shielding technology, and has strong anti-interference ability, which ensures the high precision, high stability and high reliability in the measurement of all year round without interruption.
-
ETCR6500 High Accuracy Current Tester Clamp Meter Clamp Leakage Current Leaker is equipped with communication interface, communication cable and monitoring software. It can real time monitoring and query history online via the computer, and display dynamically, has the maximum, the minimum and the average value indication, with the alarm value setting and the alarm indication function, has the historical data reading, saves, prints and other functions.
-
ETCR6500 High Accuracy Clamp Leakage Current Meter also has peak hold, data hold and data storage and other functions, convenient to use, which is an essential tool for electrical safety inspection.
About ETCR6500 Current Tester Clamp Meter High Accuracy
*Function AC leakage measurement, AC current measurement, On-line AC current measurement *Power Supply 6F22 9V *Process Type Clamp CT, Integral Approach *Display Type 4 Digits LCD *Clamp Size 35mm×40mm *Meter Dimension LWH: 175mm×70mm×38mm *LCD Dimension 35mm×21.5mm; Display Dimension: 32mm×15mm *Sampling Rate 2 Times/Second *Frequency 50Hz, 60Hz Automatic identification *Shifting Automatic Shift *Range 0.00mA~300.0A *Resolution 10uA *Accuracy (23℃±3℃, below 70%RH) 0mA~60A: ±1.5%±5dgt 60A~200A: ±2%±5dgt 200A~300A: ±3%±5dgt *Line voltage Below AC 600V *RS232 Interface With RS232 interface, Data stored in the memory can be uploaded to the computer, with software monitoring *Data Memory 99 sets, “FULL” Blinking when memory is full *Peak Maintaining Peak value capture hold function, press HOLD without Release to display peak value *Reading Hold Reading hold function: “DH” symbol display *Overflow display Range overflow function: “OL” symbol display *Automatic Shutdown 5 minutes after the boot *Battery Detection When battery voltage is lower than 7.2V, low battery symbol will shown to remind battery replacement. *Meter Weight 140g (With battery) *Rated Power 5mW *Working Temperature and Humidity 0℃~40℃; below 80%rh *Storage Temperature and Humidity -10℃~60℃; below 70%rh *Insulation Strength AC2kV/rms (between core and box) *Safety Provisions IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V) *Accessories Meter: 1 piece, RS232 Com-cable:1 piece; Software Disk: 1 piece; Battery (6F22 9V): 1 piece
