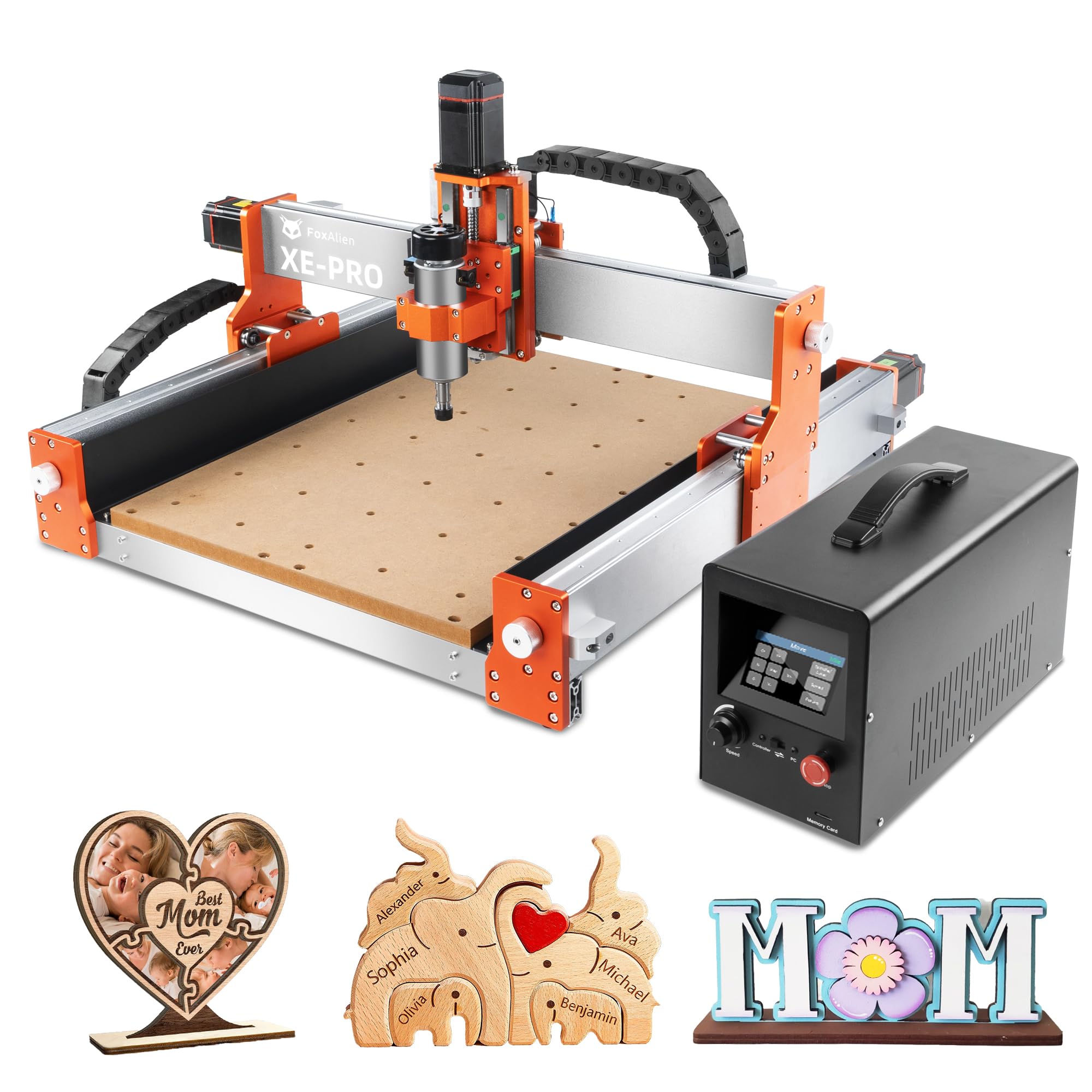

FoxAlien CNC Router Machine XE-PRO with Ball Screws, 400W Spindle 3-Axis Engraving Milling Machine for Wood Aluminum Cutting Upgradable to Linear Rails
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
FoxAlien CNC Router Machine XE-PRO with Ball Features
-
NEMA23 Closed-loop Steeper Motors: Equipped with four closed-loop stepper motors, this enables the FoxAlien XE-PRO can run faster and smoother in a lower noise level. The max moving speed is 5000mm/min, which is 2.5 times faster than the open-loop stepper motors.
-
Ball Screw Driven System: The XE-PRO uses 1204 ball screws on the XYZ axes for precise cutting and carving. It also uses the dual linear rails on Z axis to improve the rigidity of the machine.
-
Unique Upgradable Design: Exclusive and innovative design for linear rails upgrade on XY axis. The XE-PRO can be turned into an industrial grade home use machine by changing X and Y axis to linear rails.
-
More Possibilities for Spindles: The XE-PRO comes with 3 spindle clamps: 52mm, 65mm and 69mm. This allows user to use different spindles or trim routers for different projects. It is also compatible with FoxAlien engraving power modules.
-
Easy Installation: Main parts are pre-assembled, it just takes 25-30 minutes to assemble the machine, then you can explore the journey of CNC machining. It is Grbl-based. Lots of tutorials can be found online and it is user-friendly to CNC beginners.
About FoxAlien CNC Router Machine XE-PRO With Ball
Description: The FoxAlien CNC Router Machine XE-PRO has a huge improvement comparing to the first generation 4040-XE. Equipped with ball screws, closed-loop stepper motors, and a powerful 400W spindle, the XE-RPO is capable to accomplish a lot of carving, and cutting woodworking projects easily. Specification: Model Name: XE-PRO Working Area: 400x400x95mm/15.8"x15.8"x3.74" Frame & Structure: Metal Frame & MDF Spoilboard X Axis Drive System: 1204 ball screw and steel wheel Y Axis Drive System: 1204 ball screw and steel wheel Z Axis Drive System: 1204 ball screw and dual linear rails XYZ Axis Stepper Motor: Nema23 76mm Closed Loop Stepper Motor Max Speed: 5000mm/min Spindle Power: 400W Extra Mount: 65mm & 69mm Build-in Offline Control: Yes Package List: 1x CNC Router XE-PRO 1x MDF Table 1x Controller 2x Set of engraving bits (10pcs/set) 1x USB cable 1x Power cord 1x Box of screws and tools 1x User manual
