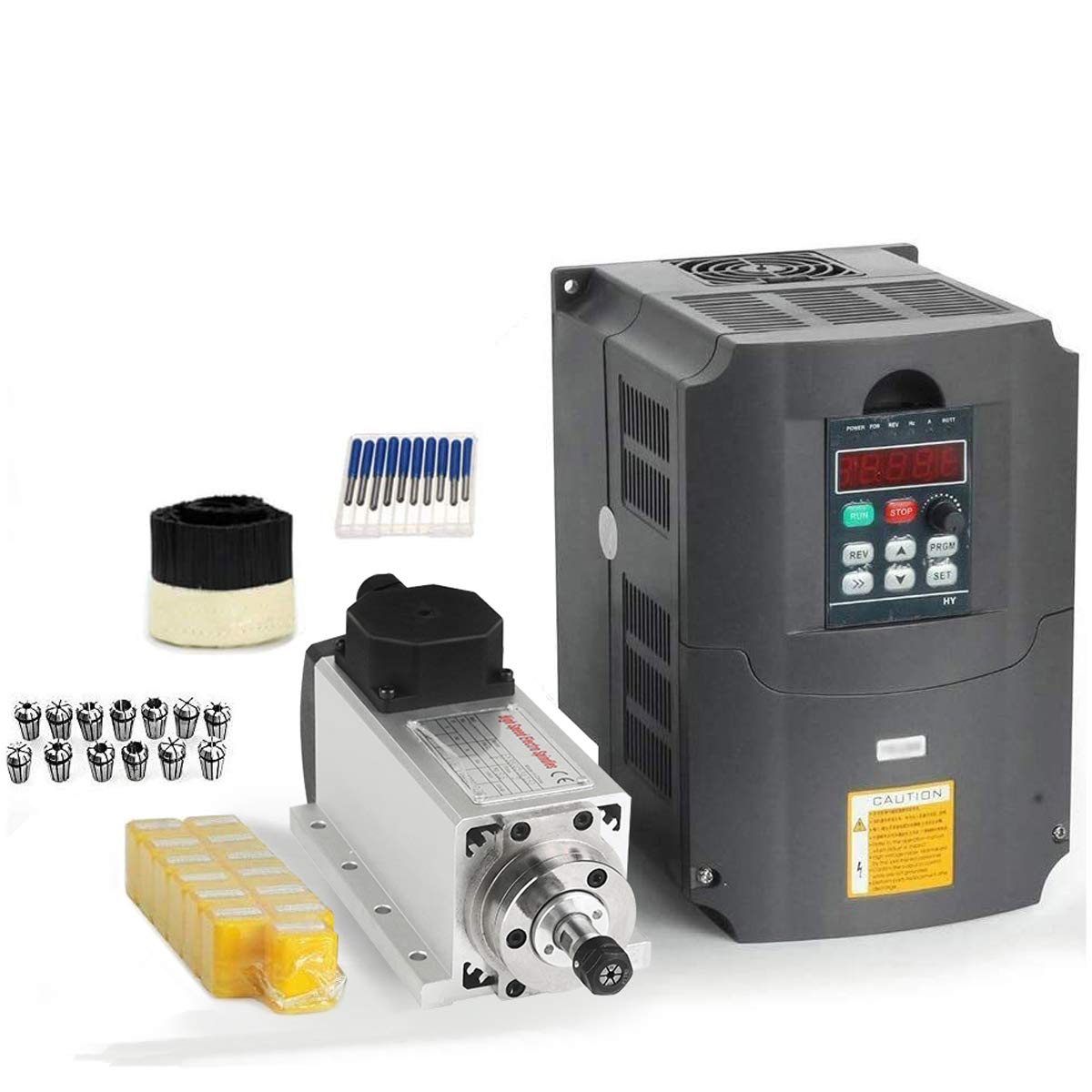

CNC Spindle Motor Kits, Square 110V 1.5KW Air Cooled Spindle Motor, 1.5KW VDF, 2.75Inch bruches, 40Inch Electric Wire,13 pcs ER11 Collets for CNC Router Engraving Milling Machine
Share Tweet
*Price and Stocks may change without prior notice
*Packaging of actual item may differ from photo shown
- Electrical items MAY be 110 volts.
- 7 Day Return Policy
- All products are genuine and original
About CNC Spindle Motor Kits, Square 110V 1.5KW Air
110V 1.5KW Air Cooled Square CNC Spindle Motor + 13PCS ER11 Collet + 1.5KW 110V Inverter1. Air Cooled Square Spindle:Size: 36**16*15cmCooling: Air cooledMaterial: Stainless steelPower: 1.5KWVoltage: 110VFrequency: 0-400HzSpeed: 0-24000rpmAccuracy: 0.003-0.005Grease LubricationWater Cooling ER11 collet (1mm,1.5mm,2mm,2.5mm,3mm,3.5mm,4mm,4.5mm,5mm,5.5mm,6mm,6.5mm,7mm)Bearing type: 4 Bearing, Angular contact bearings, P4 grade, 2x7005C P4 DT and 2x7003C P4Power Interface: optional GX16 air plug, there are marked 1234, 123 were connected to the inverter power supply (U, V, W), 4 connected inverter ground.Main Application: engrave for wood, bamboo, normal PCB, PVC, PMMA, plastic, duotone board(ABS)and etc nonmetal, also can engrave on gold, silver, copper, aluminium, Pb etc soft metal surface working.2. Inverter:Brand Name: HY Inverter Type: 1.5KW/110V Input Voltage: 110V Output Voltage: 110VAC Input Frequency: 48-63 Hz Output Frequency: 0-400 Hz Input Phase: 1 or 3 phase Output Phase: 3 phaseRun-out tolerance 0.01mm (0.0006")Control Mode is SPWM, it is very easy to use and convenient.Strong protection functions. Fin over-heat protection. Overload protection. Fuse protection. Restart after instant stop, stall protection.3.70mm brush: Type: dust cover brush Diameter:70mm 70mm Brush Vacuum Cleaner Engraving machine Dust Cover for spindle motor.4.Drill bits: Diameter: 3.175mm Tip:0.1mm Angle: 20°Package include:1x 110V/1.5KW Square Spindle Motor 1x 1.5KW/110V HY INVERTER1 x 70mm Brush10 x Drill Bits13x ER11 Collet(1,1.5,2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7mm)
